Inflatable Restraint I/P Module

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

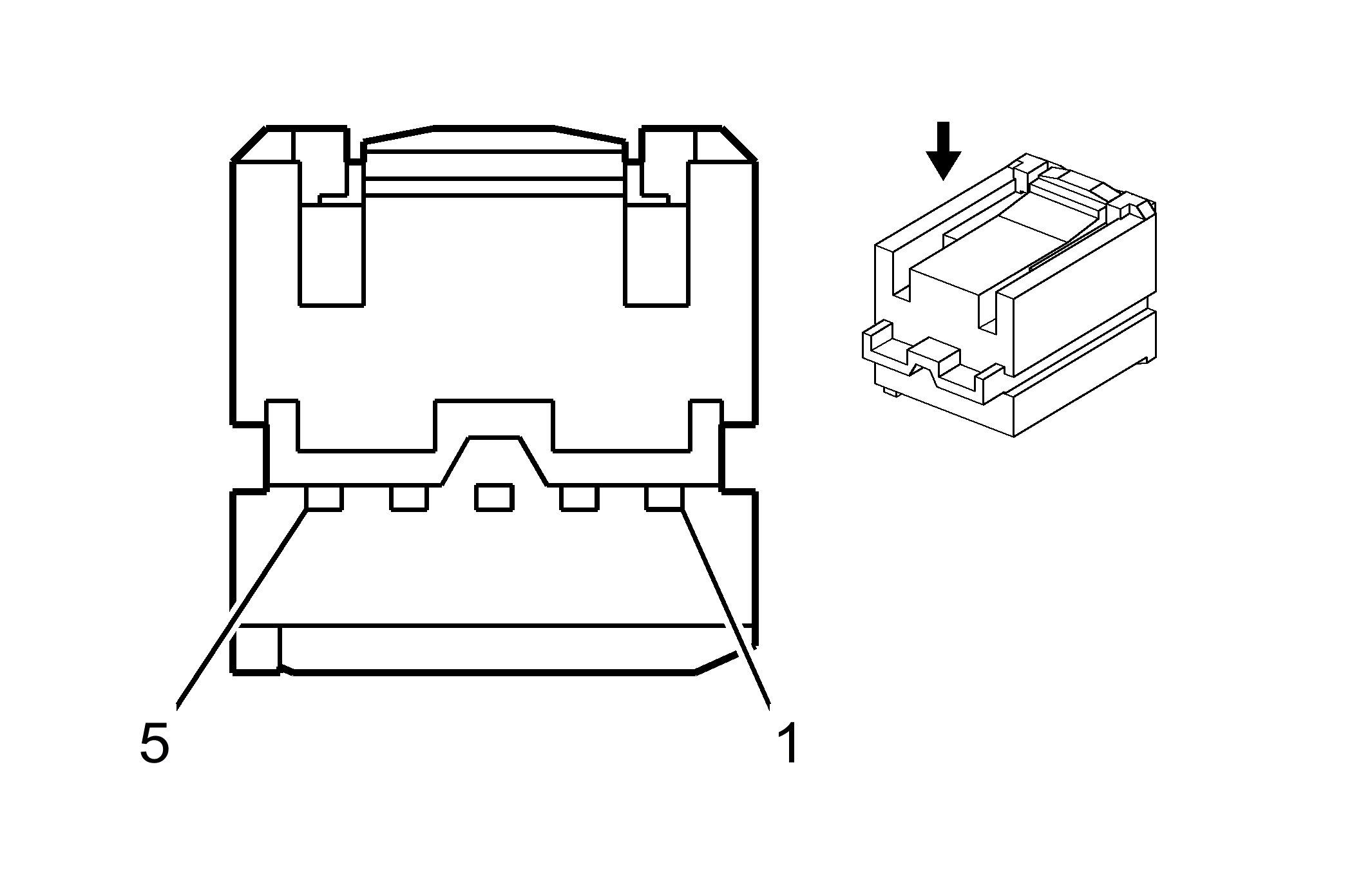

Fig 1: Connector End View Inflatable Restraint I/P Module

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 YE	3025	I/P Module - Stage 1 - High Control
2	0.35 OG	3024	I/P Module - Stage 1 - Low Control
3	-	-	Not Used
4	0.35 GY	3027	I/P Module - Stage 2 - High Control
5	0.35 PU	3026	I/P Module - Stage 2 - Low Control

Connector Part Information

Harness Type: Body
OEM Connector: SNAPB-05UN-1FYS
Service Connector: 19153434
Description: 5-Way F 0.64 Series Unsealed (YE)

Terminal Part Information

Terminated Lead: 13575865
Release Tool: J-38125-215A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: SAIT-A03GF-M064/27
Core/Insulation Crimp: P/P
