Inflatable Restraint Roof Rail Module - Driver

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

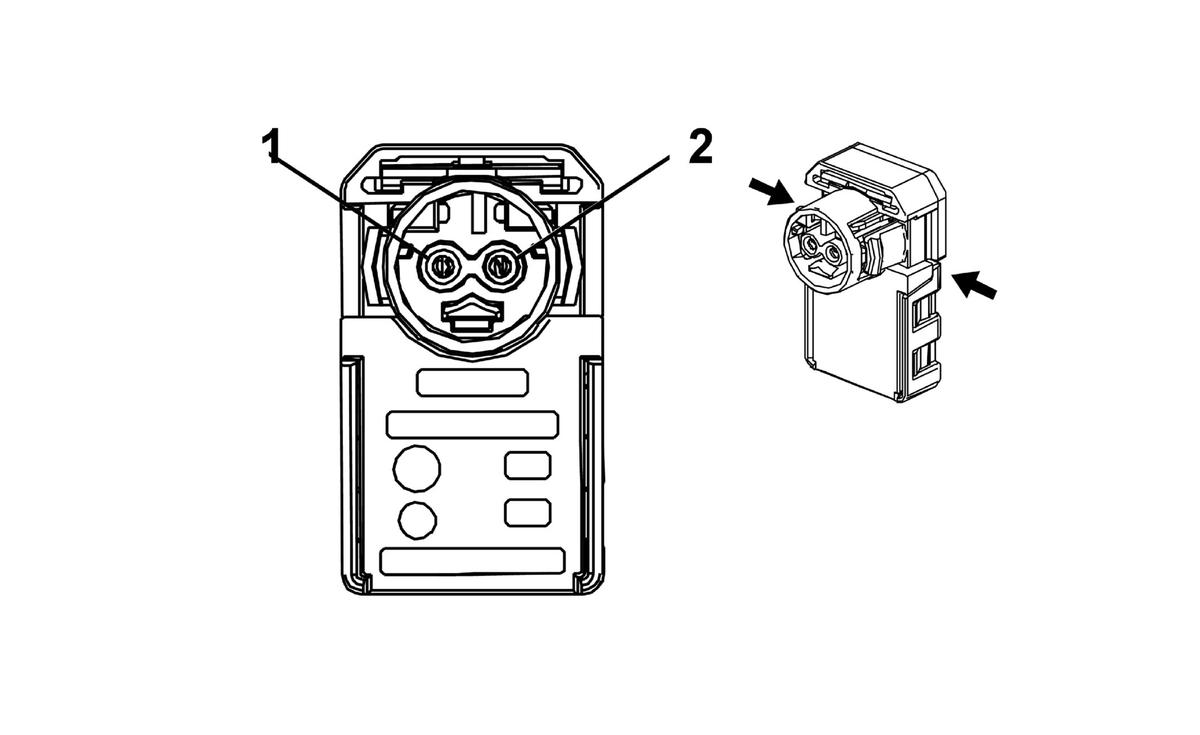

Fig 1: Connector End View Inflatable Restraint Roof Rail Module - Driver
GM2231587Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Roof Rail Module - Driver

Pin Wire Circuit Function
1 0.35 PU/WH 5019 Roof Rail Module - Left - High Control
2 0.35 PK 5020 Roof Rail Module - Left - Low Control
Connector Part Information
  • Harness: Body
  • OEM Connector: 13262034
  • Service Connector: 13580445
  • Description: 2-Way F (YE)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 13580445
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
