Inflatable Restraint Steering Wheel Module Coil X3

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

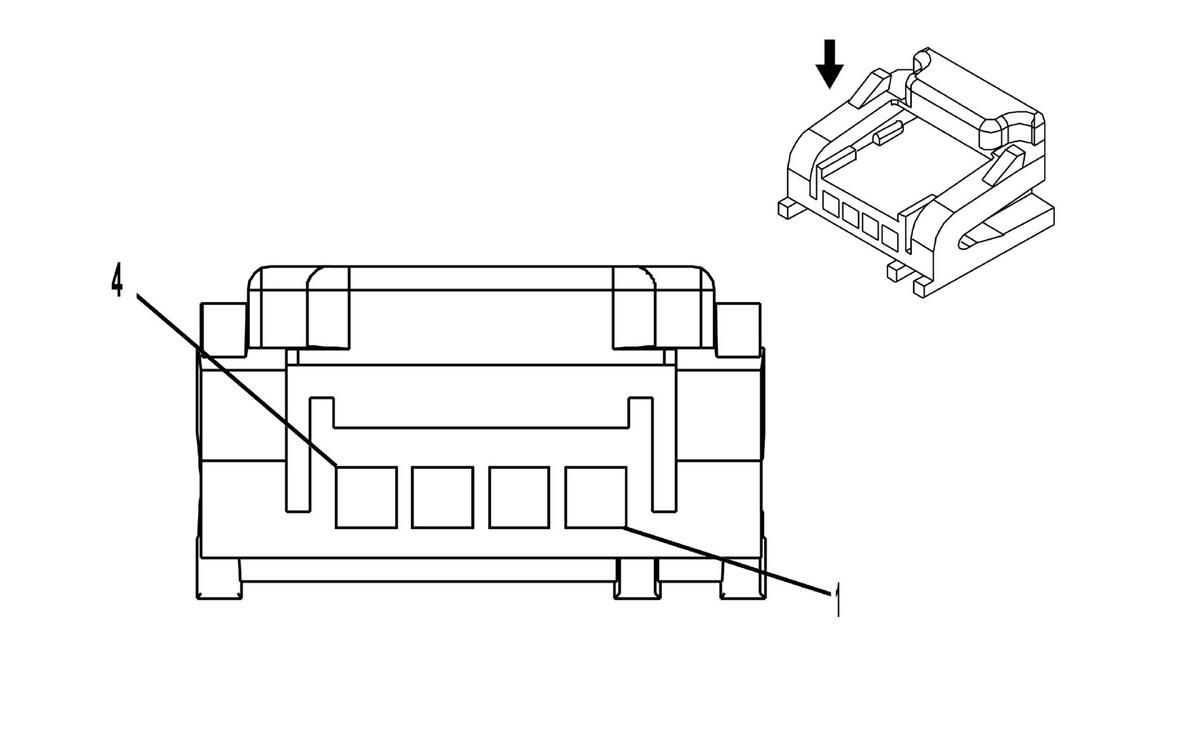

Fig 1: Connector End View Inflatable Restraint Steering Wheel Module Coil X3

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 TN	3021	Steering Wheel Module - Stage 1 - High Control
2	0.35 BN	3020	Steering Wheel Module - Stage 1 - Low Control
3	0.35 WH	3023	Steering Wheel Module - Stage 2 - High Control
4	0.35 PK	3022	Steering Wheel Module - Stage 2 - Low Control

Connector Part Information

Harness Type: Steering Column
OEM Connector: 15393421
Service Connector: 88987853
Description: 4-Way F Micro-Pack 064 Series (YE)

Terminal Part Information

Terminated Lead: Pending
Release Tool: J-38125-559
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: 12177007/19
Core/Insulation Crimp: E/2
