Memory Seat Adjuster Switch - Driver (A45)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

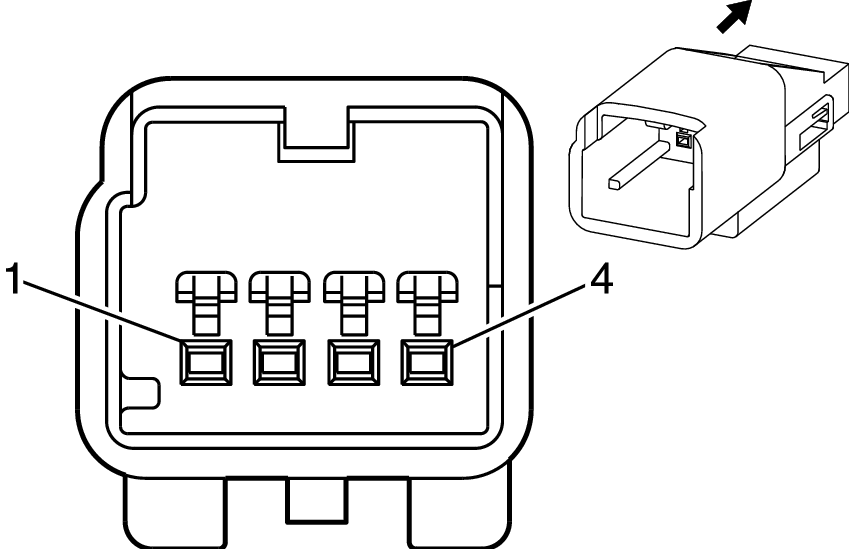

Fig 1: Connector End View Memory Seat Adjuster Switch - Driver (A45)

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 OG	614	Memory Set Switch Signal
2	0.35 GY/BK	5979	Memory Seat Switch Exit Signal
3	0.35 D-BU/WH	5978	Low Reference
4	0.35 BN/WH	6064	Memory Switch Dimming Control

Connector Part Information

Harness Type: Driver Door Trim Panel
OEM Connector: 7282-6560-40
Service Connector: 19153179
Description: 4-Way M 64 YESC Series (L-GY)

Terminal Part Information

Terminated Lead: 13575828
Release Tool: J-38125-553
Diagnostic Test Probe: J-35616-65B (L-BU)
Terminal/Tray: 7114-4720-02/14
Core/Insulation Crimp: H/H
