Instrument Panel - Left Side Knee Bolster
WARNING:
This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Instrument Panel - Left Side Knee Bolster
Items
1. X84 Data Link Connector
X84 Data Link Connector

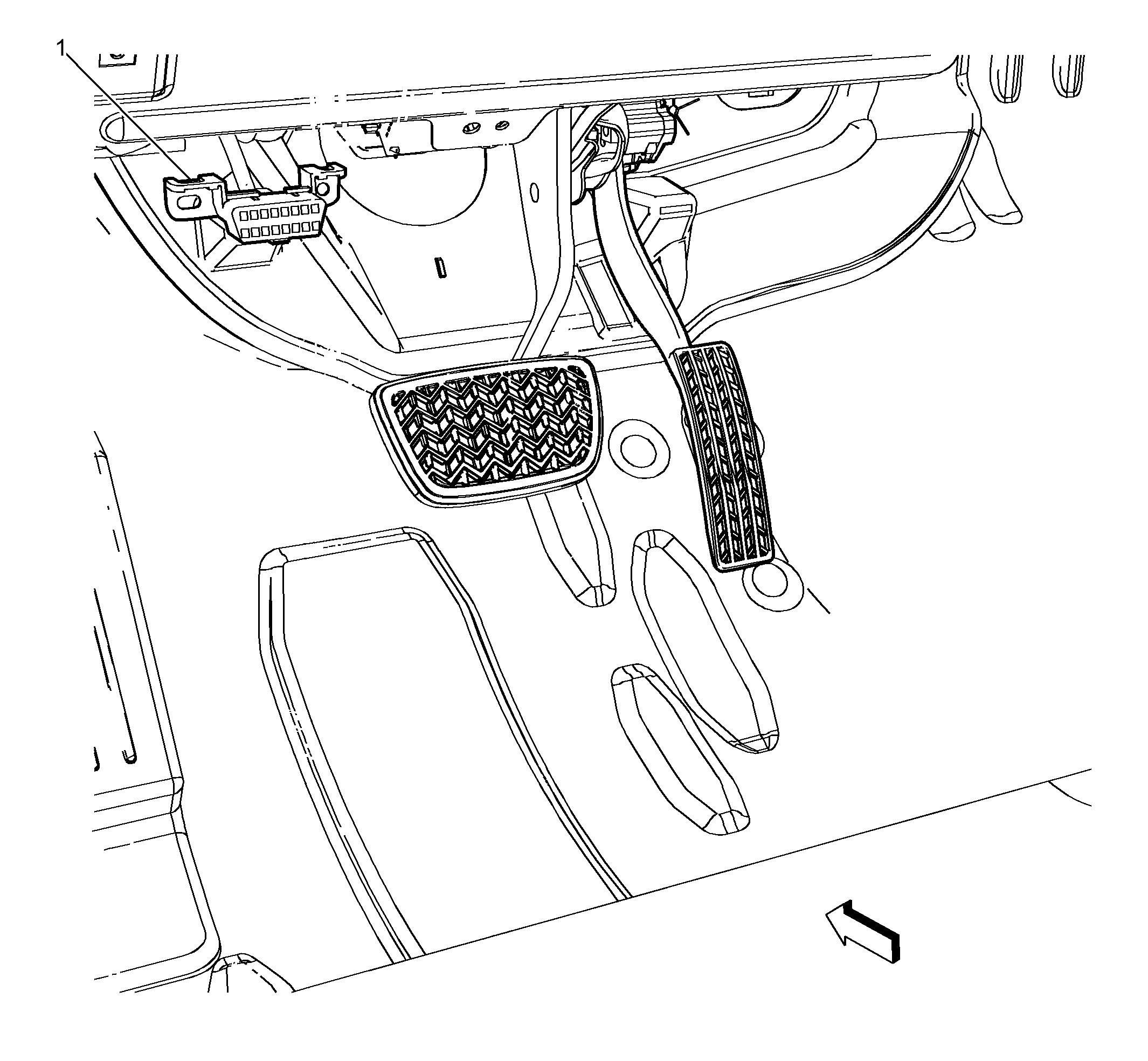

Fig 1: Below Left Knee Bolster
Courtesy of GENERAL MOTORS COMPANY
