Instrument Panel - Right Side Upper
WARNING:
This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Instrument Panel - Right Side Upper
Items
1. T4P Navigation Antenna (U4H or UUM or UUK)

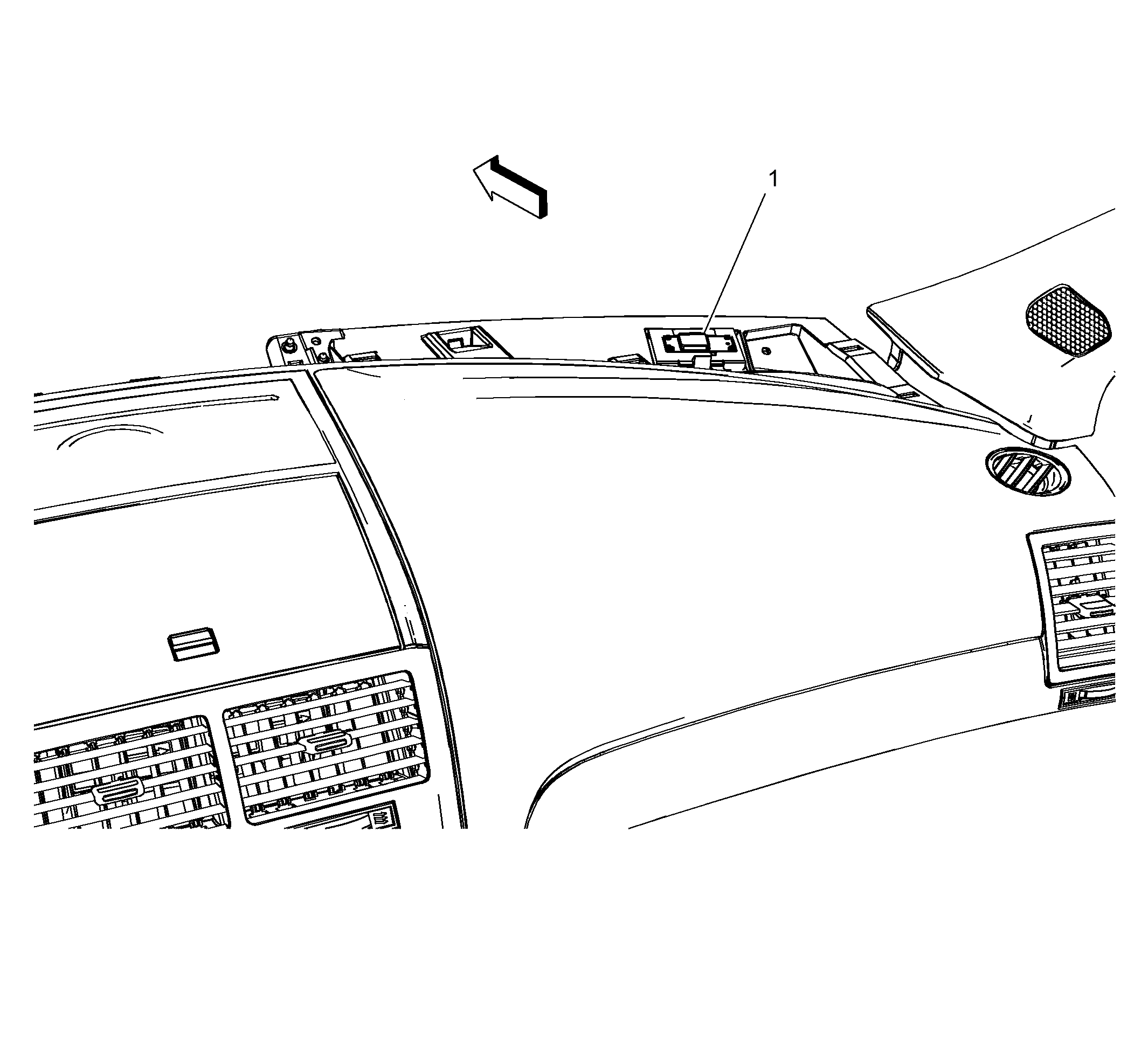

Fig 1: Right Side Of Upper Instrument Panel
Courtesy of GENERAL MOTORS COMPANY
