Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

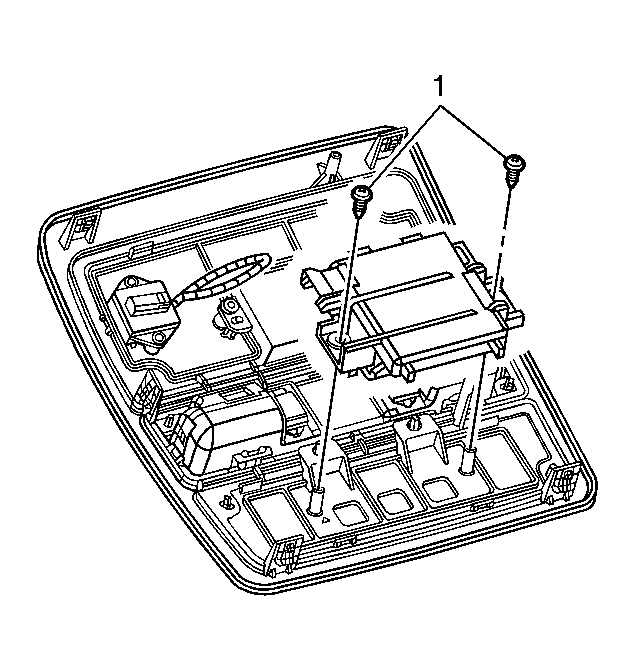

    Fig 1: Garage Door Opener
    GM1470612Courtesy of GENERAL MOTORS CORP.
  1. Locate the garage door opener to the overhead console.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the screws (1) securing the garage door opener the overhead console and tighten to 2 N.m (18 lb in).
  3. Connect the electrical connector.
  4. Install the overhead console. Refer to Roof Console Replacement .
  5. Refer to Control Module References for programming and setup information.
