Door Component Views

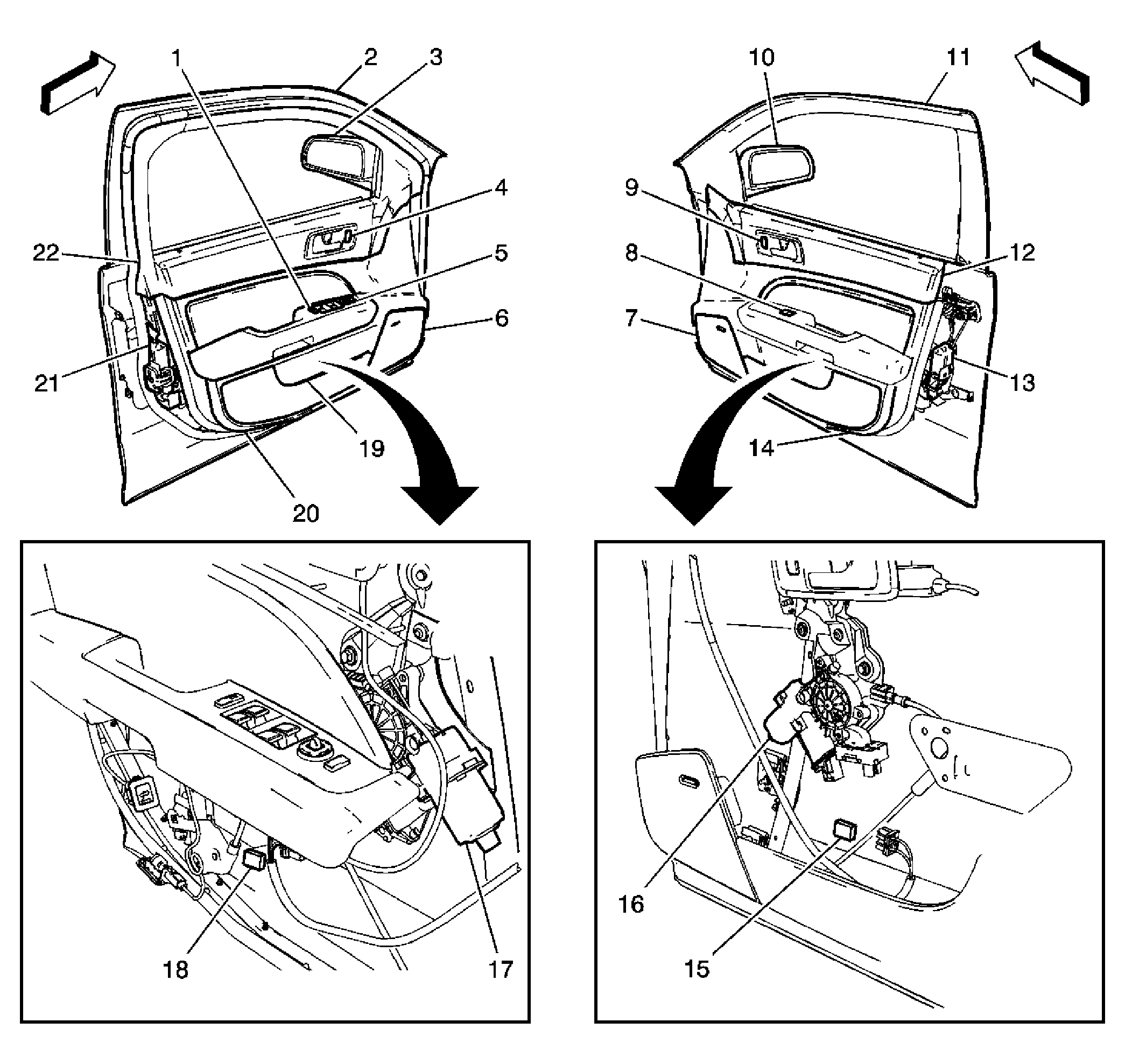

Fig 1: View Of Driver and Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Driver
2	Driver Door
3	Outside Rearview Mirror - Driver
4	Door Lock Switch - Driver
5	Outside Rearview Mirror Switch (Part of Window Switch - Driver)
6	Speaker - Left Front
7	Speaker - Right Front
8	Window Switch - Passenger
9	Door Lock Switch - Passenger
10	Outside Rearview Mirror - Passenger
11	Passenger Door
12	Door Lock Indicator - Passenger
13	Door Latch - Passenger
14	Courtesy Lamp - Right Front Door
15	Door Control Module - Passenger
16	Window Motor - Passenger
17	Window Motor-Driver
18	Door Control Module - Driver
19	Rear Compartment Lid Release Switch - Interior
20	Courtesy Lamp - Left Front Door
21	Door Latch - Driver
22	Door Lock Indicator - Driver

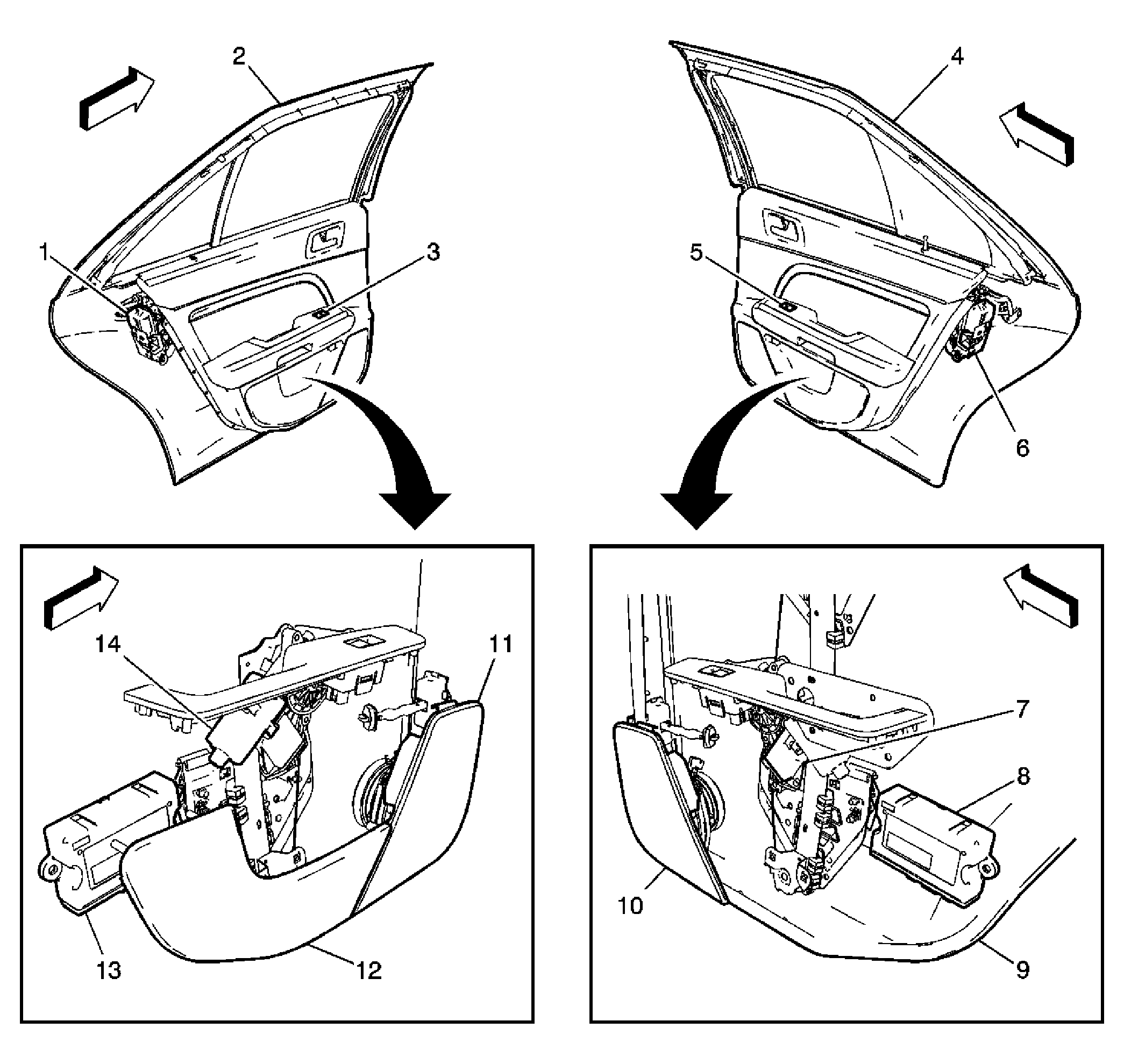

Fig 2: Exploded View Of Rear Passenger Doors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Left Rear
2	Left Rear Door
3	Window Switch - Left Rear
4	Right Rear Door
5	Window Switch - Right Rear
6	Door Latch - Right Rear
7	Window Motor - Right Rear
8	Door Control Module - Right Rear
9	Courtesy Lamp - Right Rear Door
10	Speaker - Right Rear
11	Speaker - Left Rear
12	Courtesy Lamp - Left Rear Door
13	Door Control Module - Left Rear
14	Window Motor - Left Rear
