Ground Views

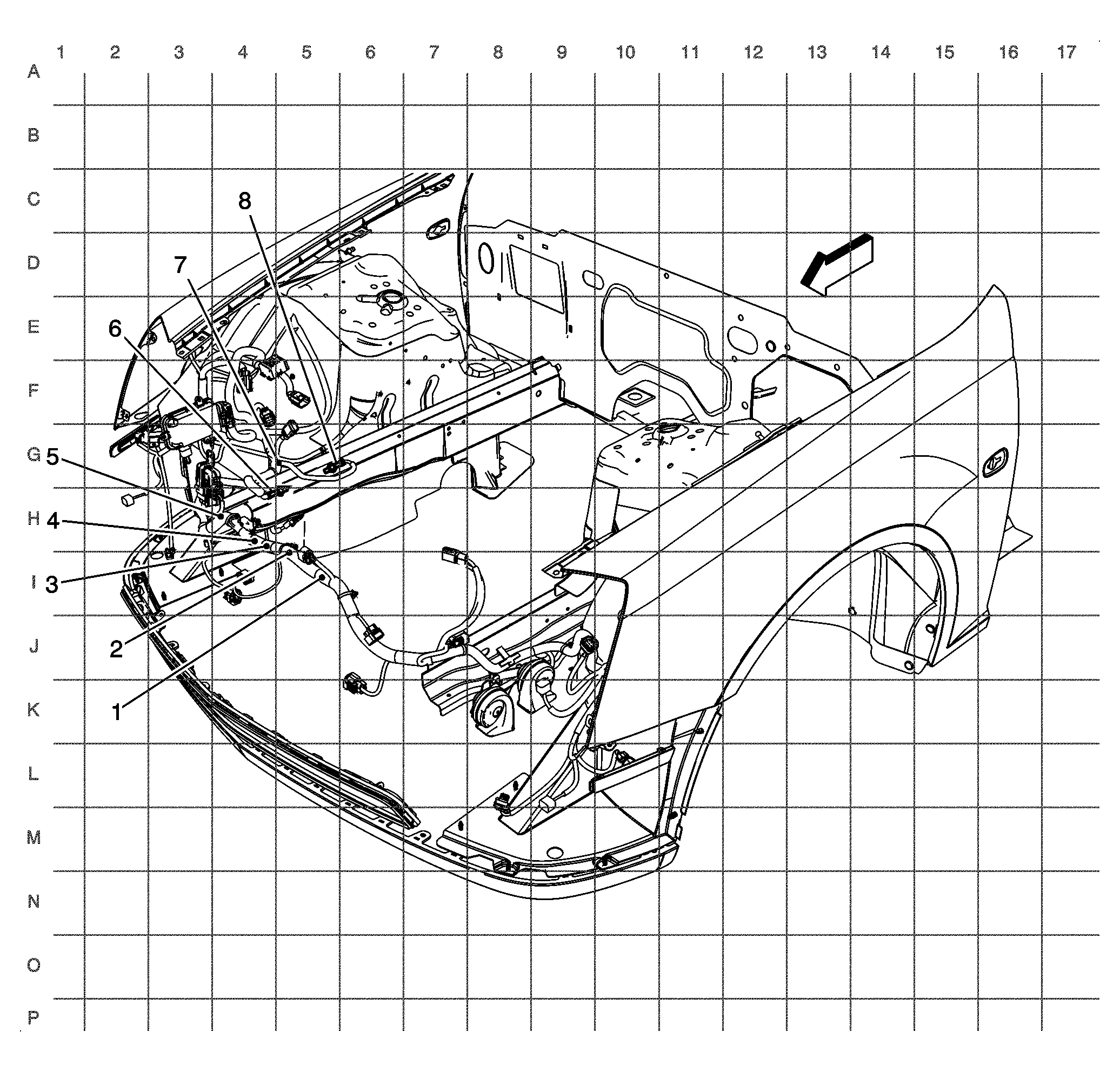

Fig 1: Identifying Forward Lamp Splices and Grounds and Components
GM1970127Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J106
2 J114
3 J110
4 J111
5 J107
6 G104
7 J116
8 G110

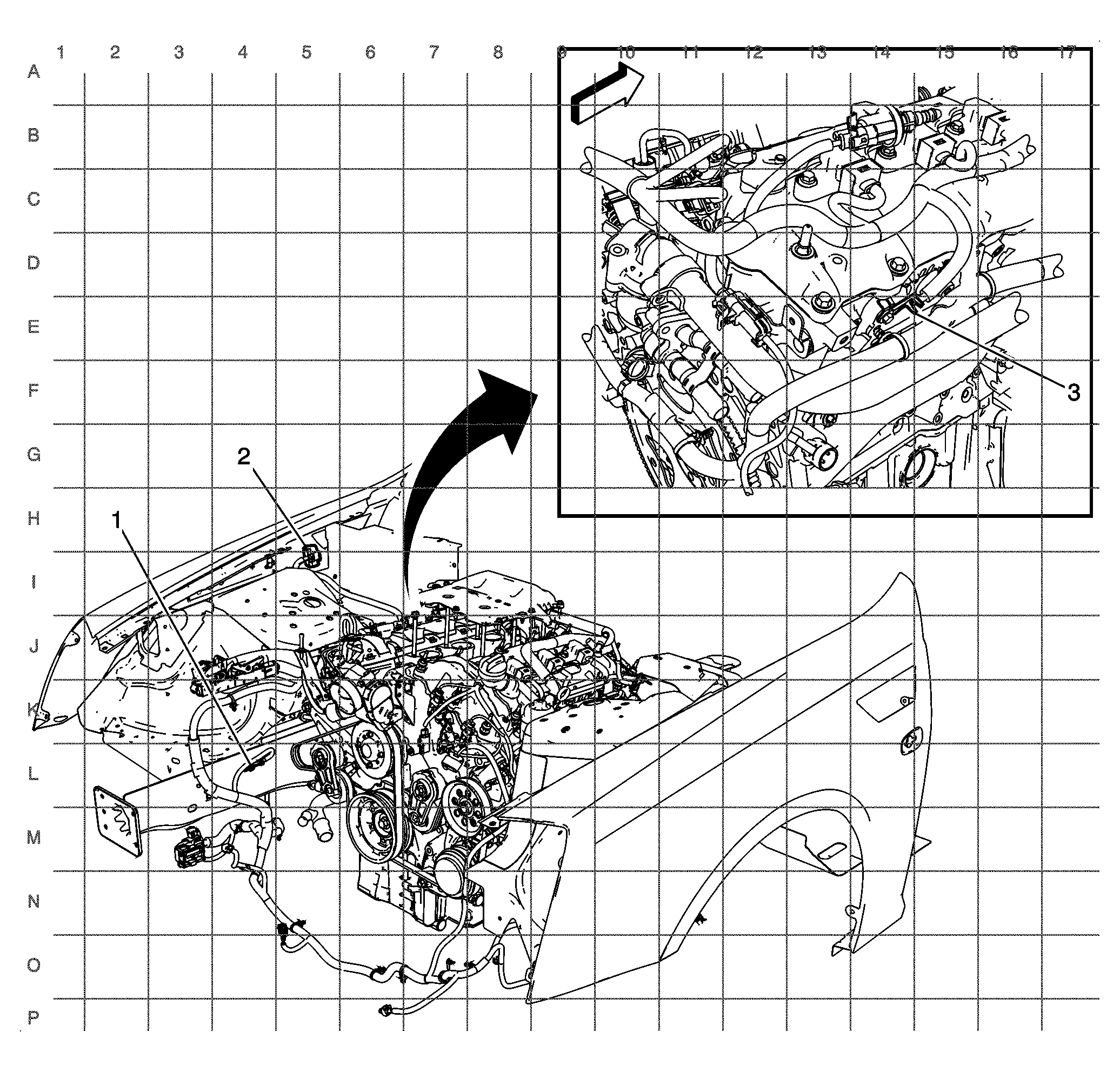

Fig 2: Identifying Engine-Front (LLT) and Components
GM1972228Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 X101
3 G109

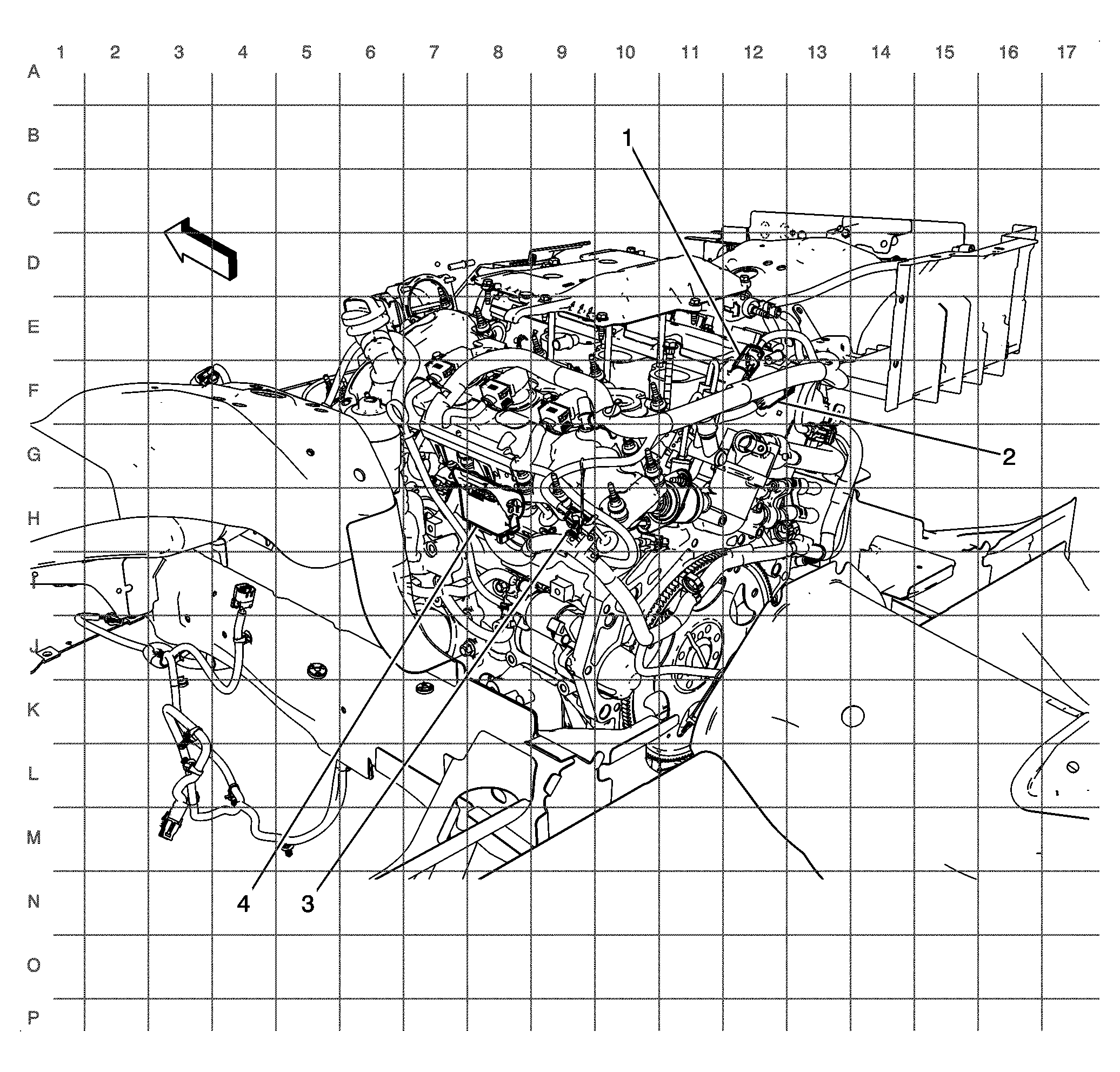

Fig 3: Identifying Engine-Left Rear (LLT) and Components
GM1972223Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X160
2 X161
3 G112
4 X102

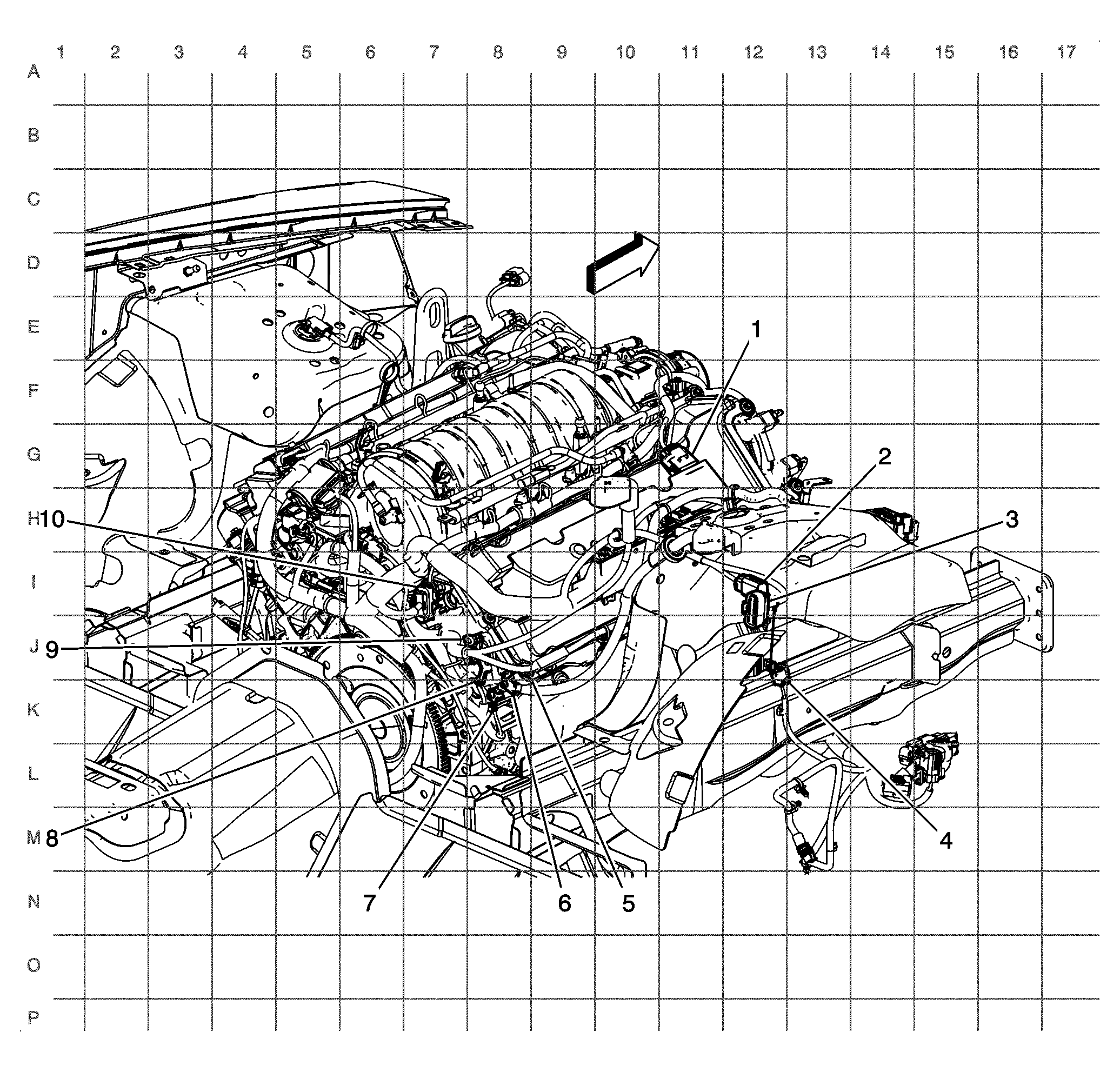

Fig 4: Identifying Engine-Right Rear (LH2) and Components
GM1970182Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X139
2 X100
3 X101
4 X113
5 G107
6 G106
7 Valve Cover Ground
8 G100
9 G107 Ground Strap
10 104

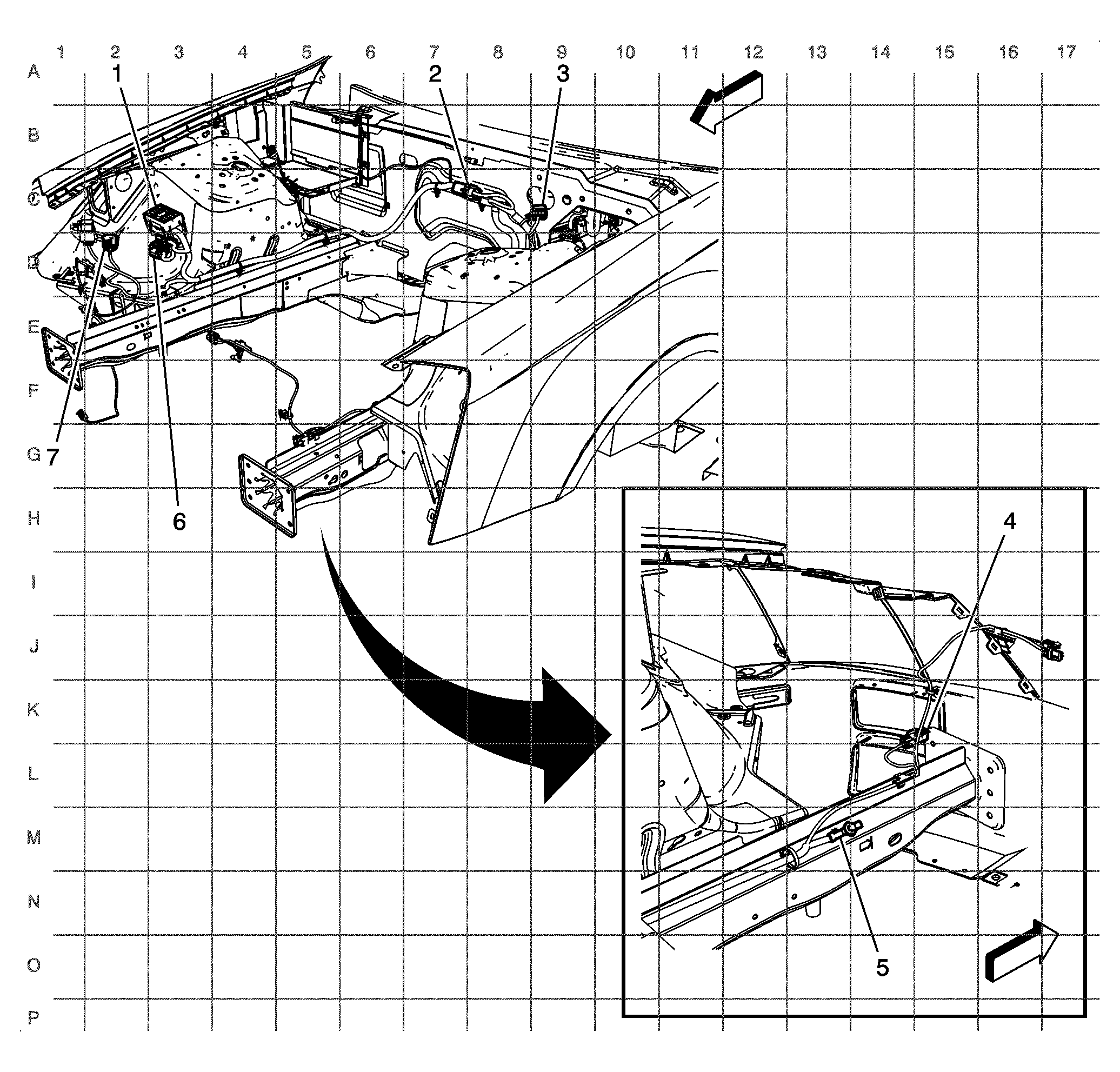

Fig 5: Identifying Instrument Panel Harness-Engine Compartment and Components
GM1970194Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X103
2 X102
3 JX201
4 X116
5 G101
6 X111
7 X112

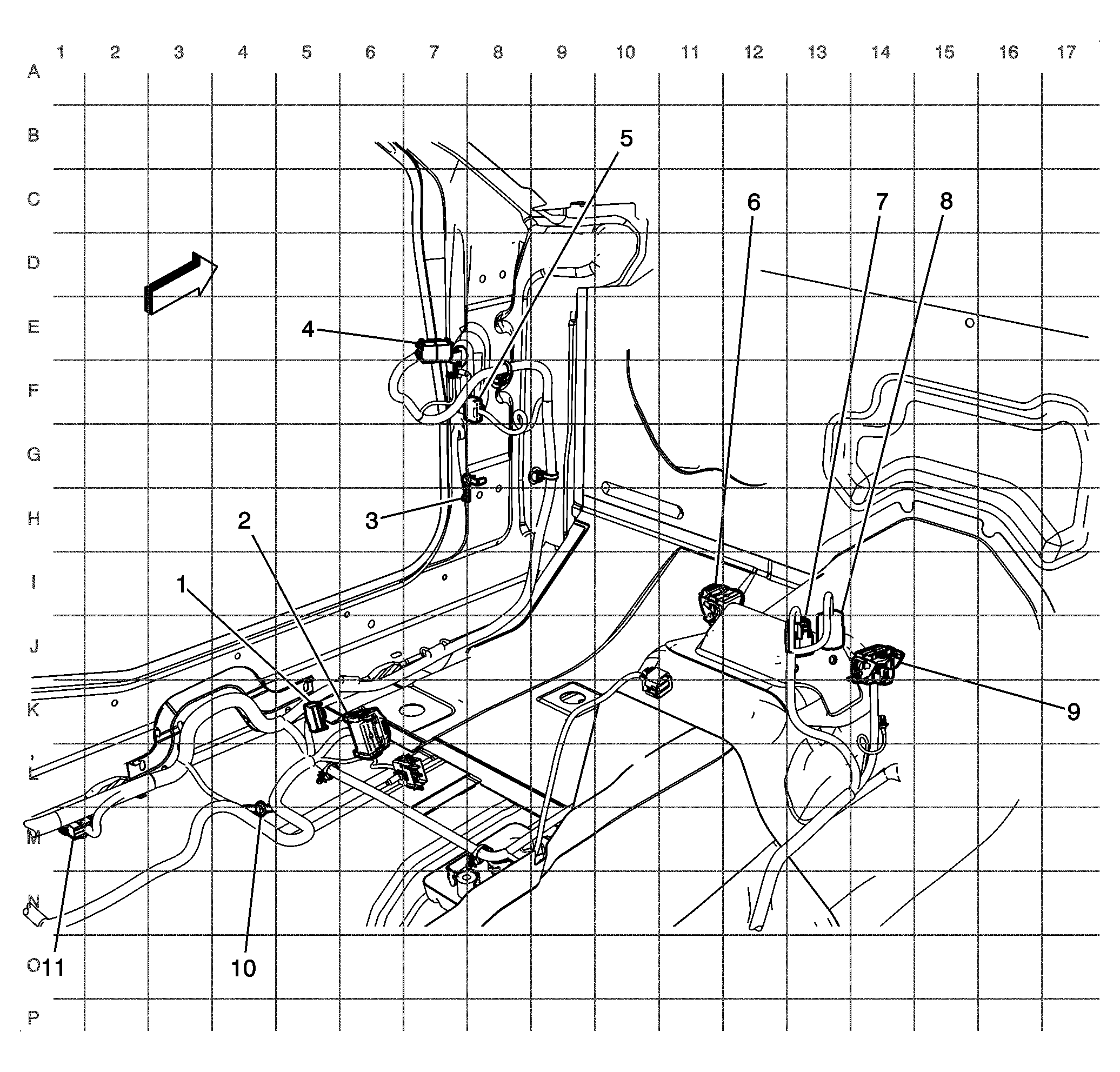

Fig 6: Identifying Body Harness-Left Front Passenger Compartment and Components
GM1970225Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X301
2 X300
3 G200
4 X205
5 X500
6 X204
7 X213
8 X212
9 X201
10 G307
11 JX300

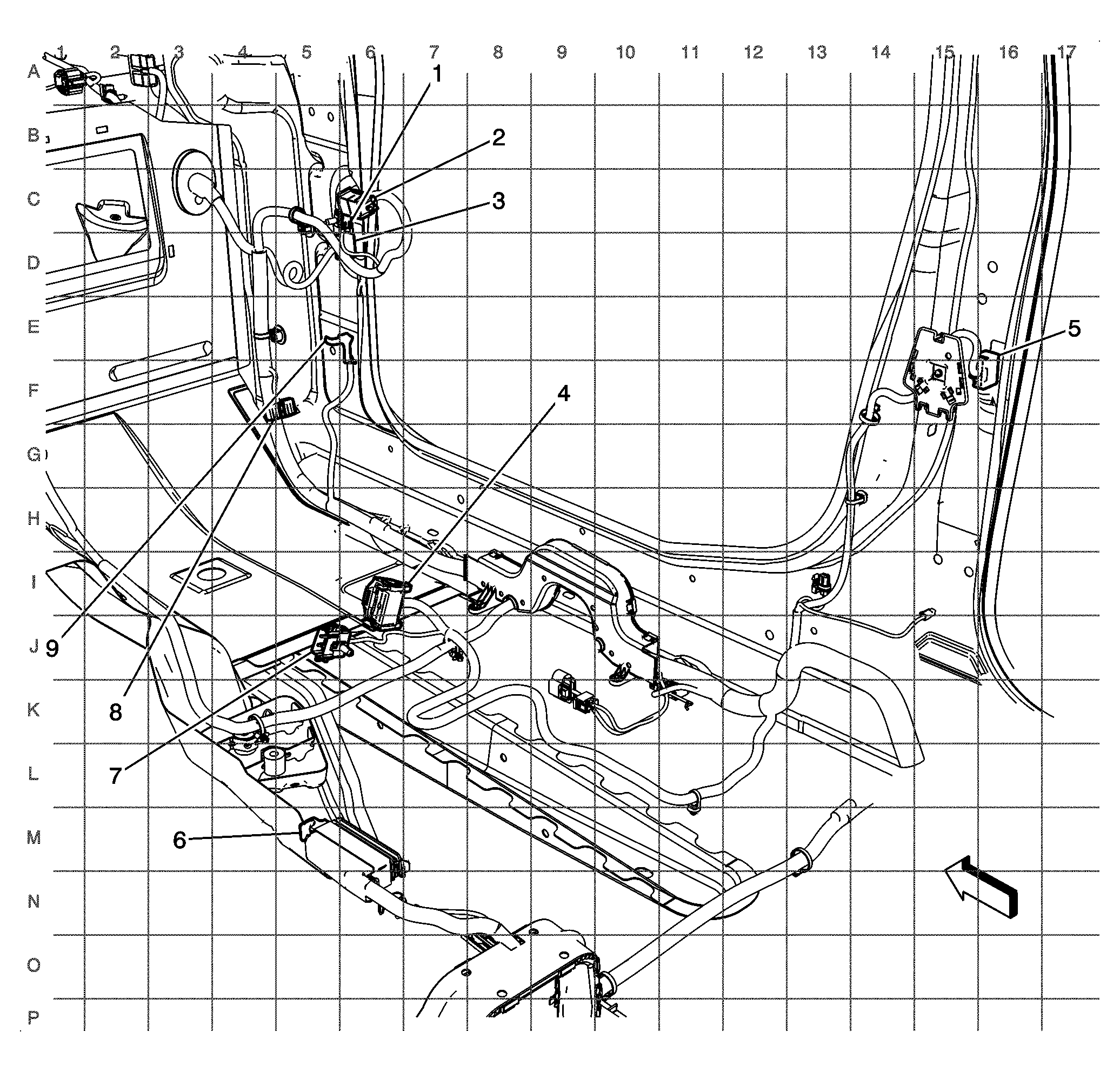

Fig 7: Body Harness-Right Front Passenger Compartment
GM1970229Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X217
2 X200
3 X600
4 X307
5 X800
6 G306
7 X318
8 JX303
9 G201

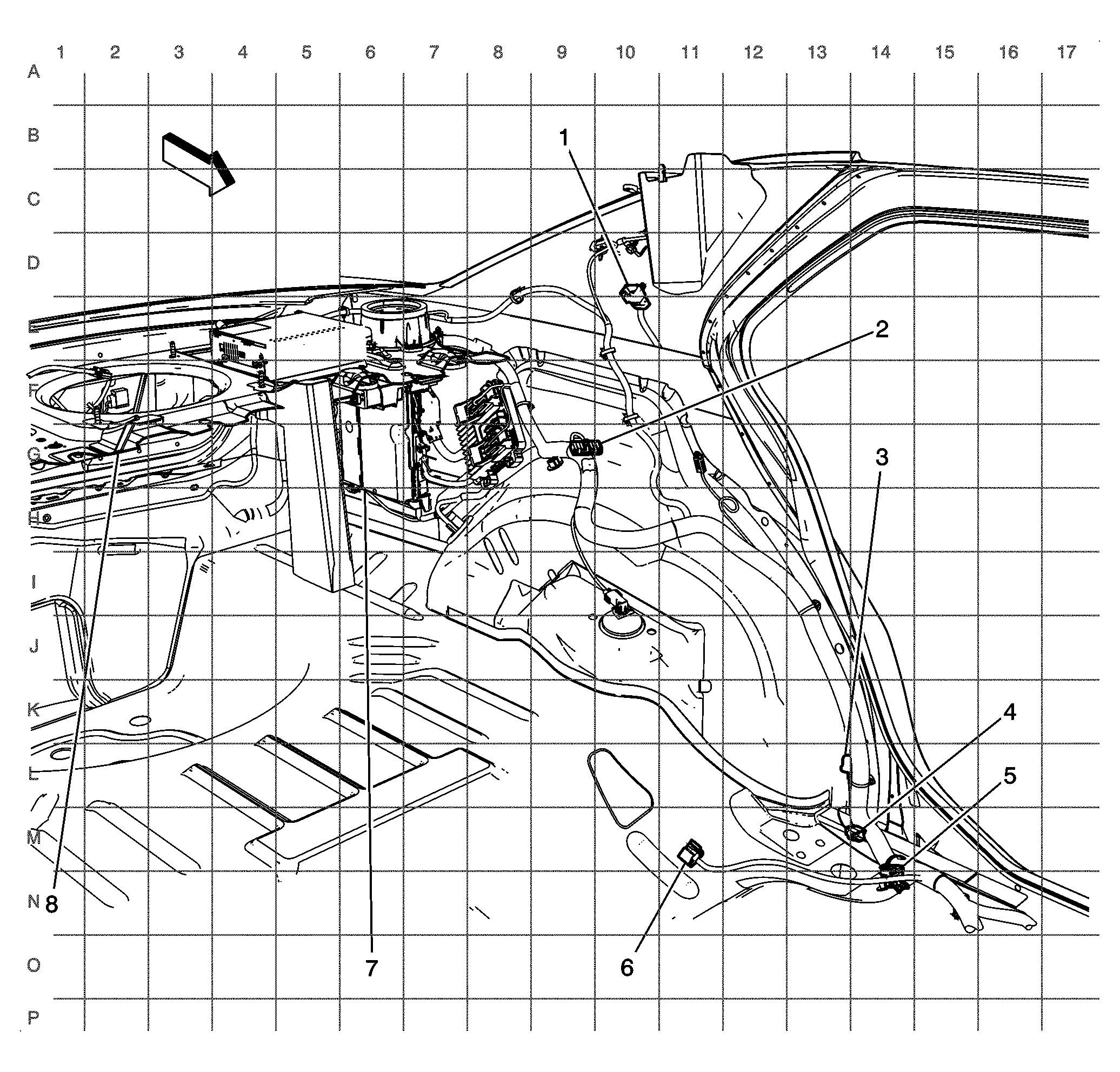

Fig 8: Identifying Body Harness-Left Rear Cargo Compartment and Components
GM1970234Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X308
2 JX305
3 X320
4 X320
5 Windshield Wiper Inhibit Relay (WCV)
6 X302
7 G402
8 Rear Shelf

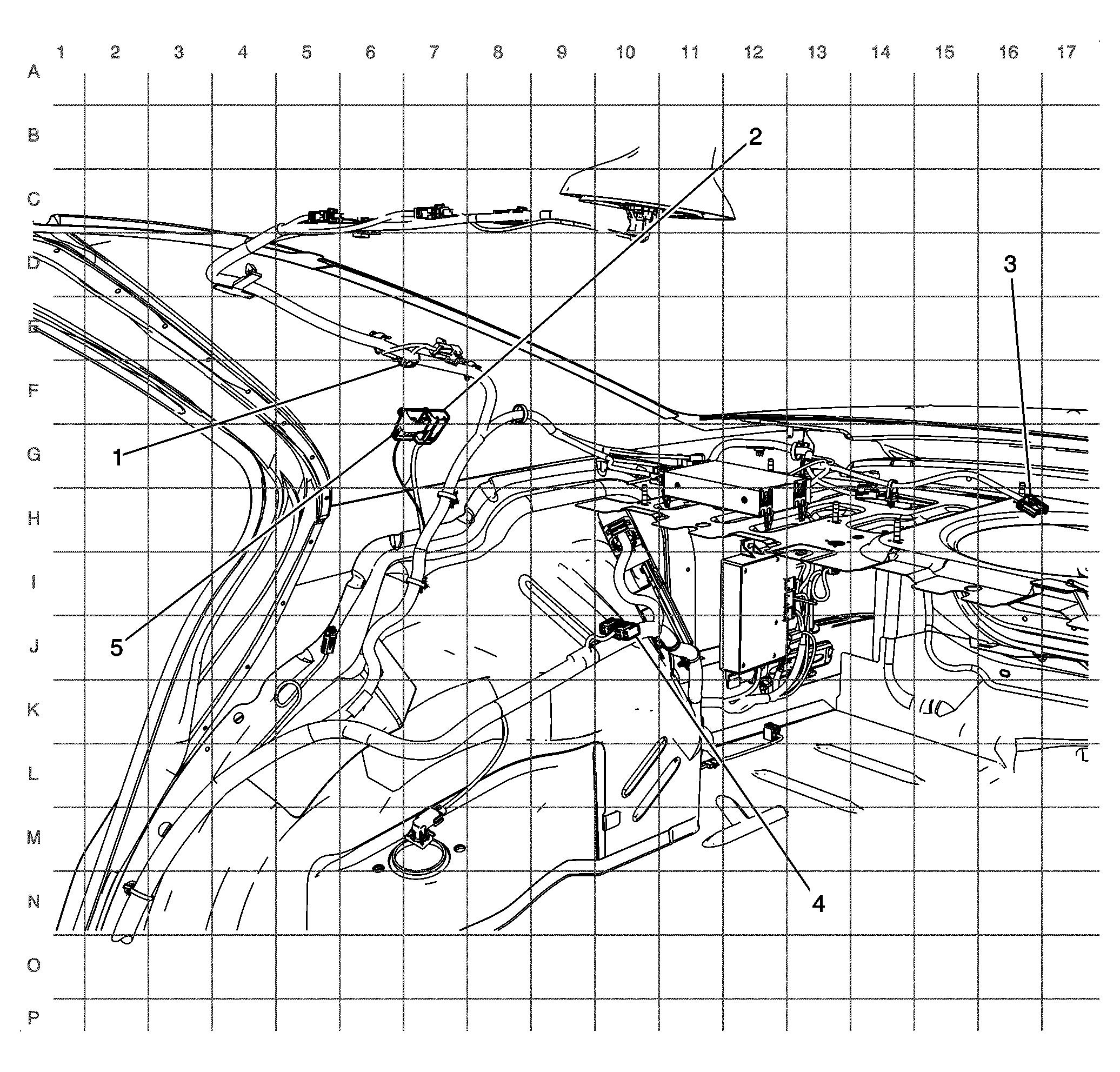

Fig 9: Identifying Body Harness-Right Rear Cargo Compartment and Components (1 of 2)
GM1970256Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G403
2 X310
3 Rear Decklid
4 JX304
5 X305
Fig 10: Identifying Body Harness - Right Rear Cargo Compartment 2 of 2
GM1488394Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Rear Fender
2 G401
3 Trunk Compartment Floor Panel
