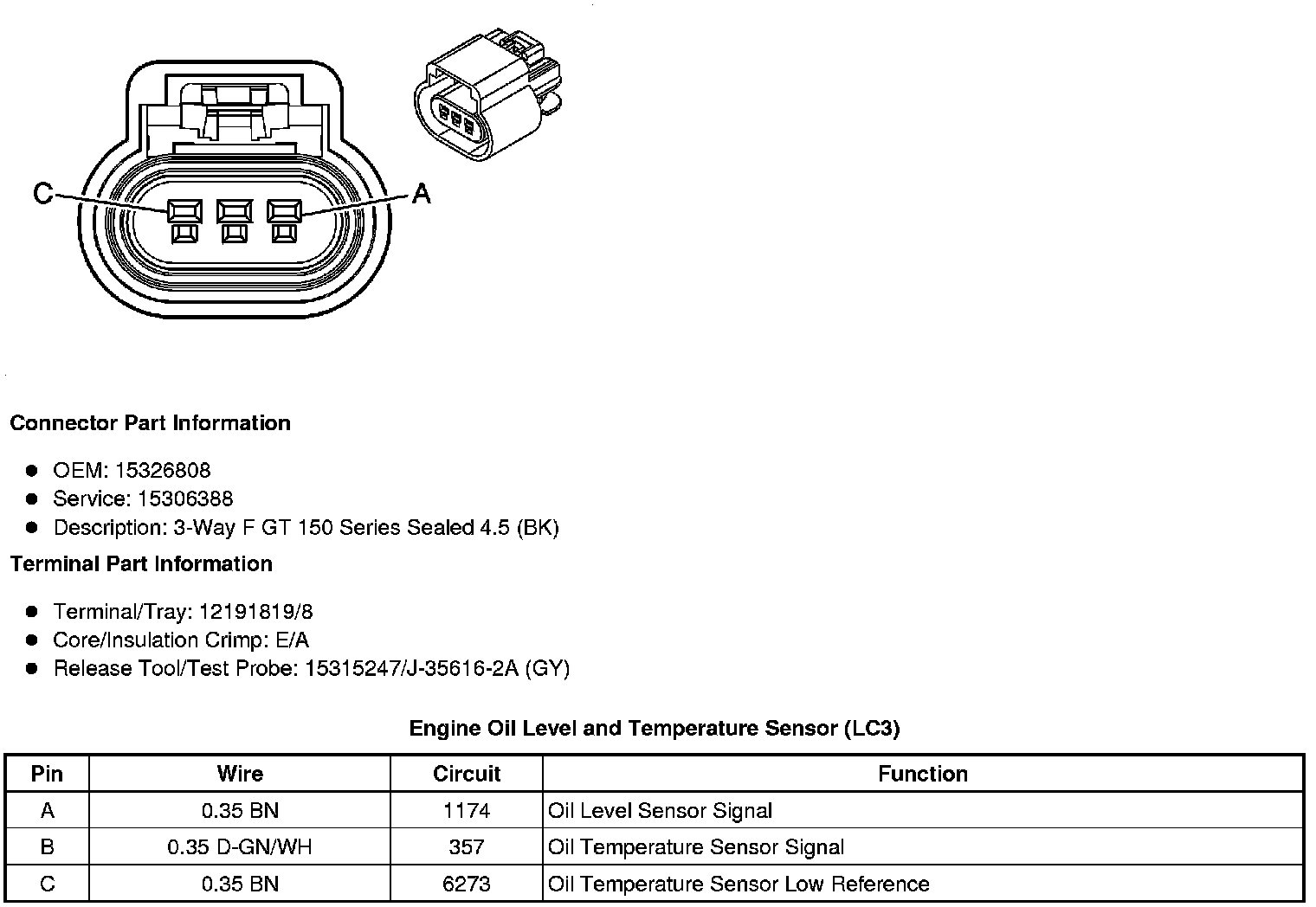

Oil Temperature Sensor/Switch, Engine
Component Connector End Views
Engine Oil Level and Temperature Sensor (LC3)
