Installation Procedure

    CAUTION: Refer to Fastener Caution .

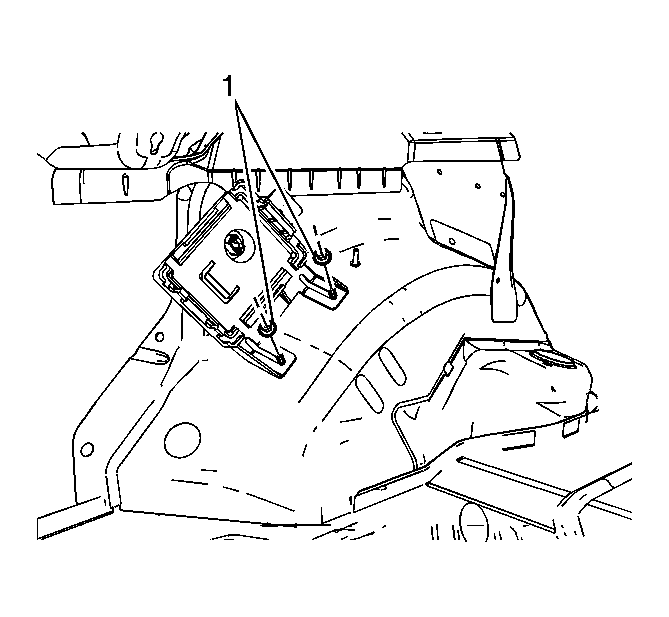

    Fig 1: Identifying Stability Control Module Bracket and Nuts
    GM1906586Courtesy of GENERAL MOTORS CORP.
  1. If removed, install the stability control module bracket and the nuts (1).

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

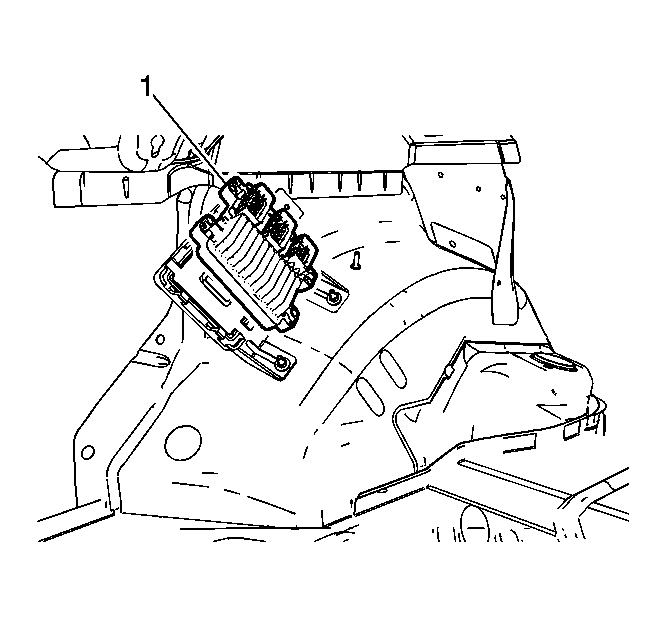

    2. Fig 2: Identifying Stability Control Module to the Bracket
    GM1906585Courtesy of GENERAL MOTORS CORP.
  2. Install the stability control module (1) to the bracket.

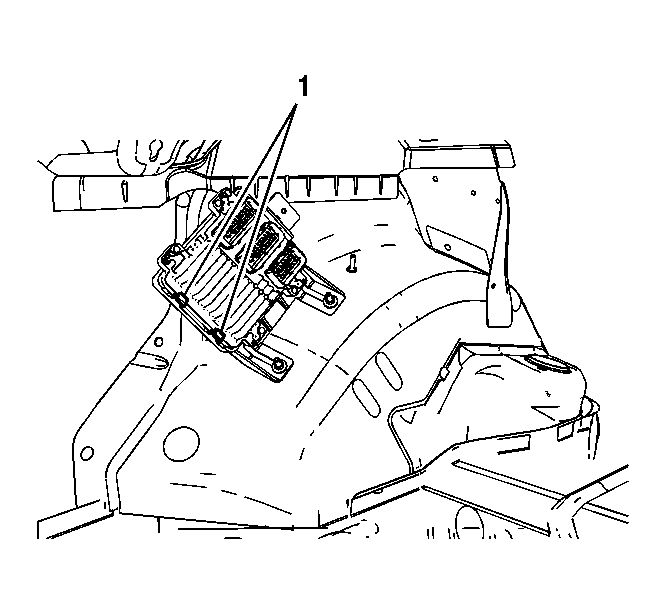

    3. Fig 3: Identifying Module Bracket Locking Tabs
    GM1906584Courtesy of GENERAL MOTORS CORP.
  3. Press the stability control module into the module bracket locking tabs (1).
  4. Connect the stability control module electrical connectors.
  5. Install the left rear compartment side trim panel. Refer to Rear Compartment Trim Panel Replacement .
  6. Program the stability control module. Refer to Control Module References .
  7. Perform the Diagnostic System Check - Vehicle .
