Door Control Module Schematics

WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

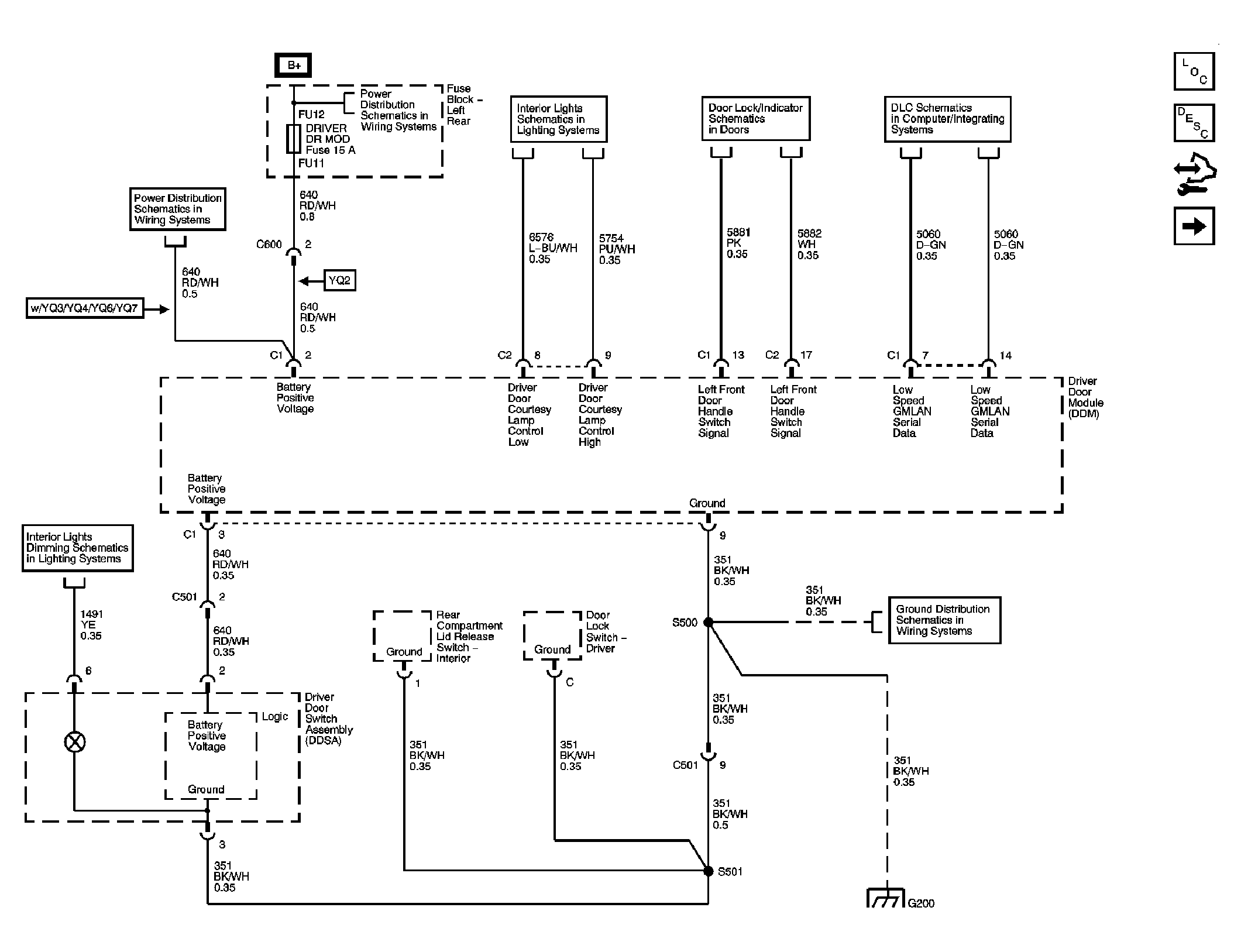

Fig 1: DDM Power, Ground and DLC

Courtesy of GENERAL MOTORS CORP.

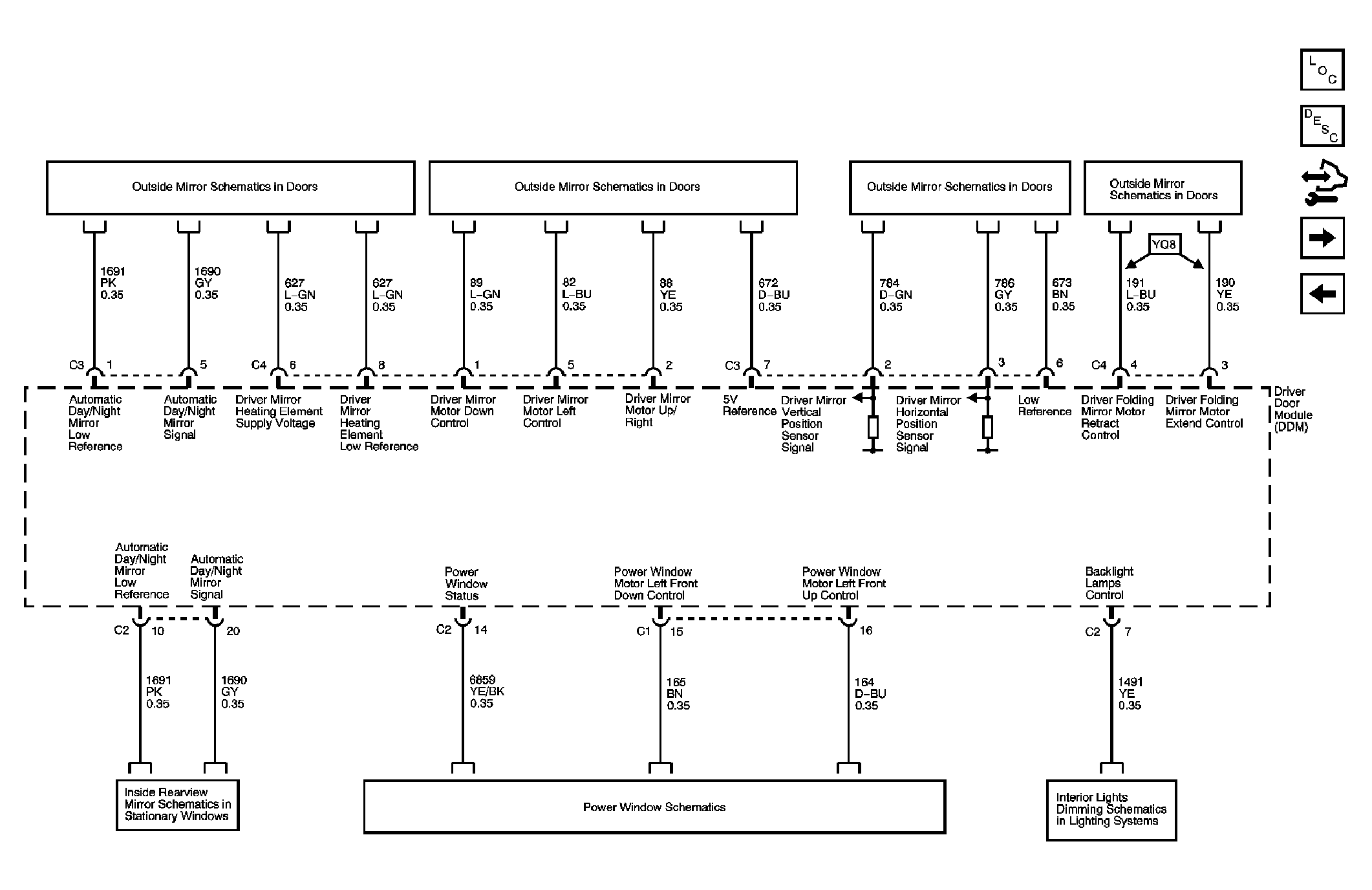

Fig 2: DDM Signals/Controls (1 of 2)

Courtesy of GENERAL MOTORS CORP.

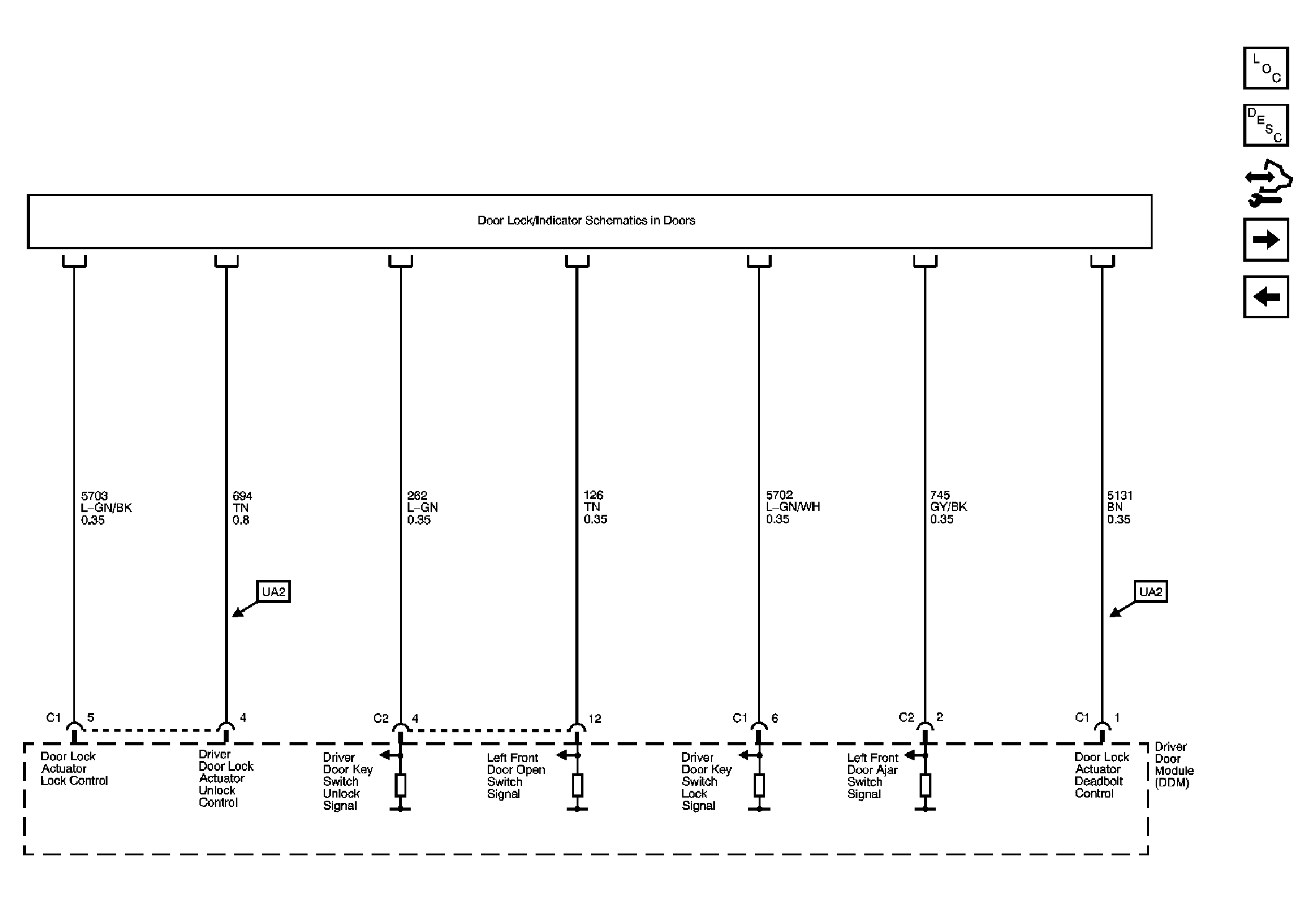

Fig 3: DDM Signals/Controls (2 of 2)

Courtesy of GENERAL MOTORS CORP.

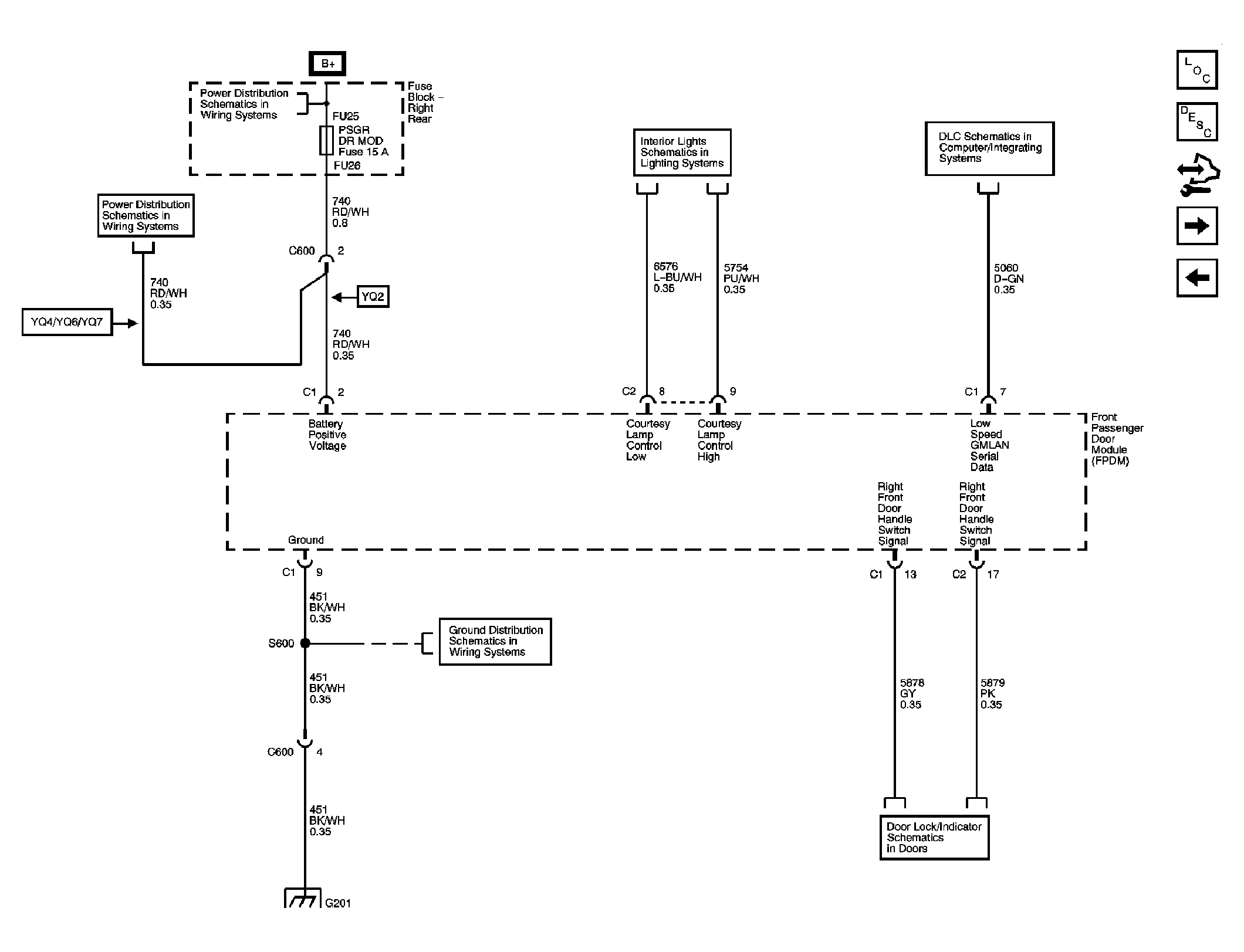

Fig 4: FPDM Power, Ground and DLC

Courtesy of GENERAL MOTORS CORP.

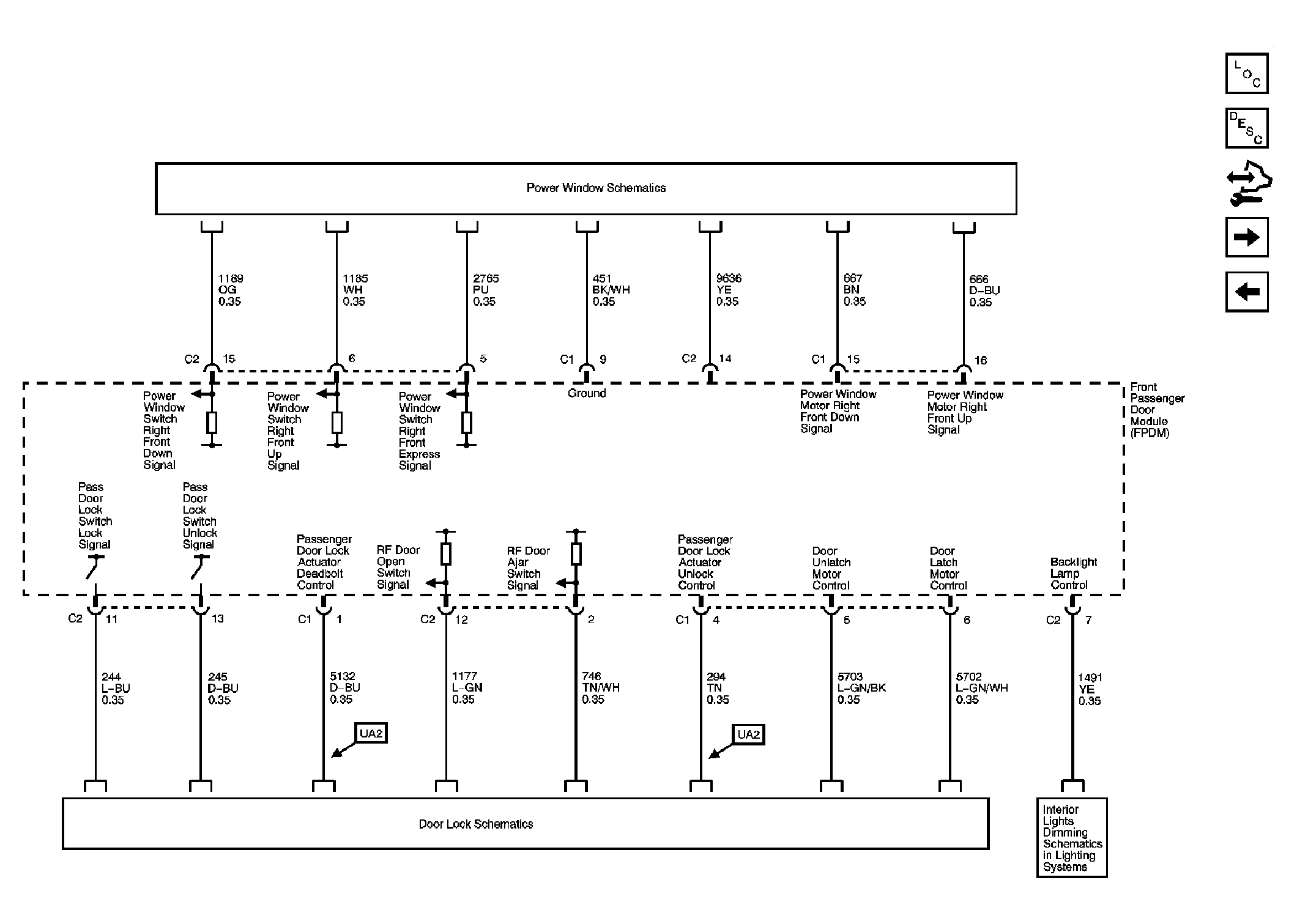

Fig 5: FPDM Signals/Controls (1 of 2)

Courtesy of GENERAL MOTORS CORP.

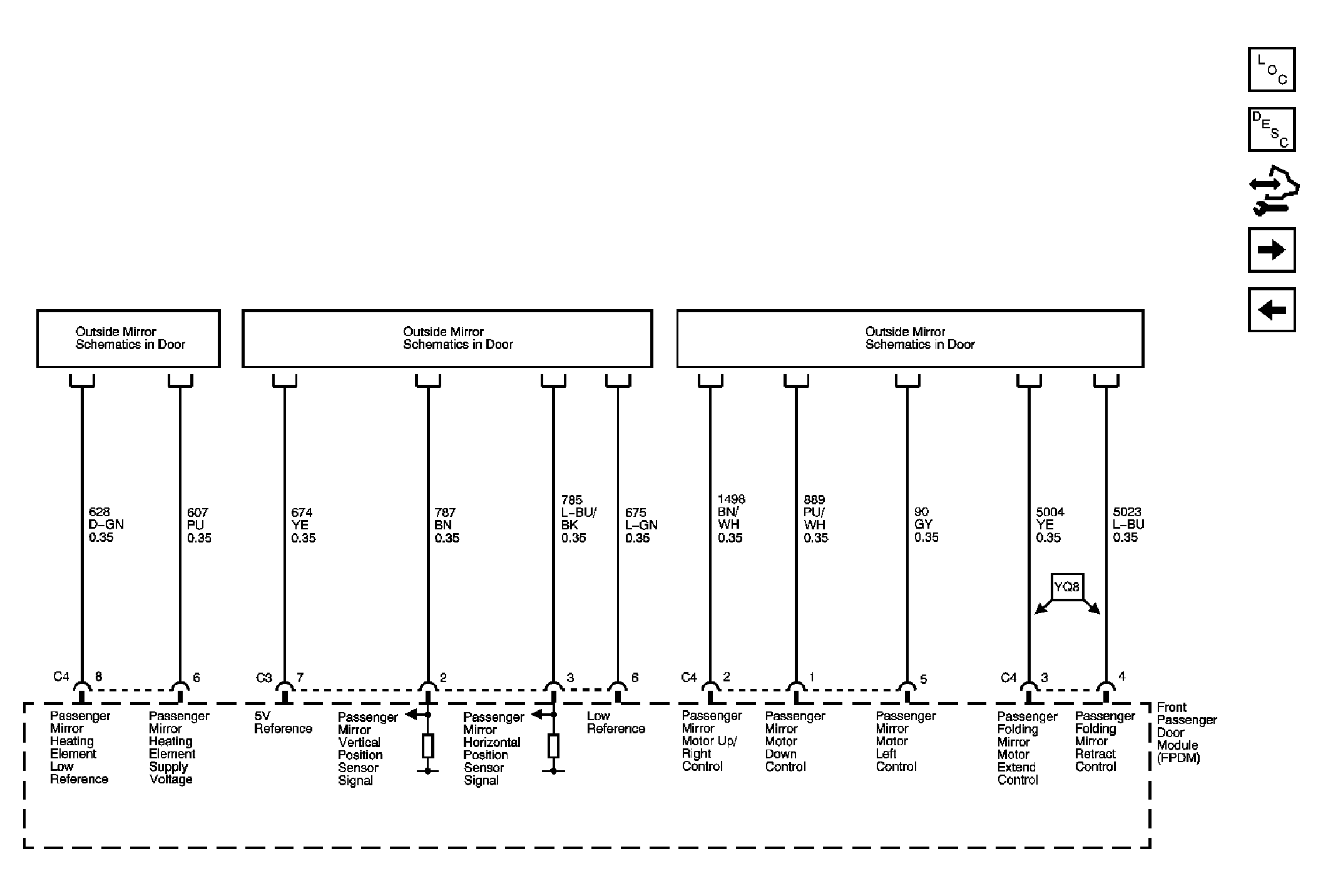

Fig 6: FPDM Signals/Controls (2 of 2)

Courtesy of GENERAL MOTORS CORP.

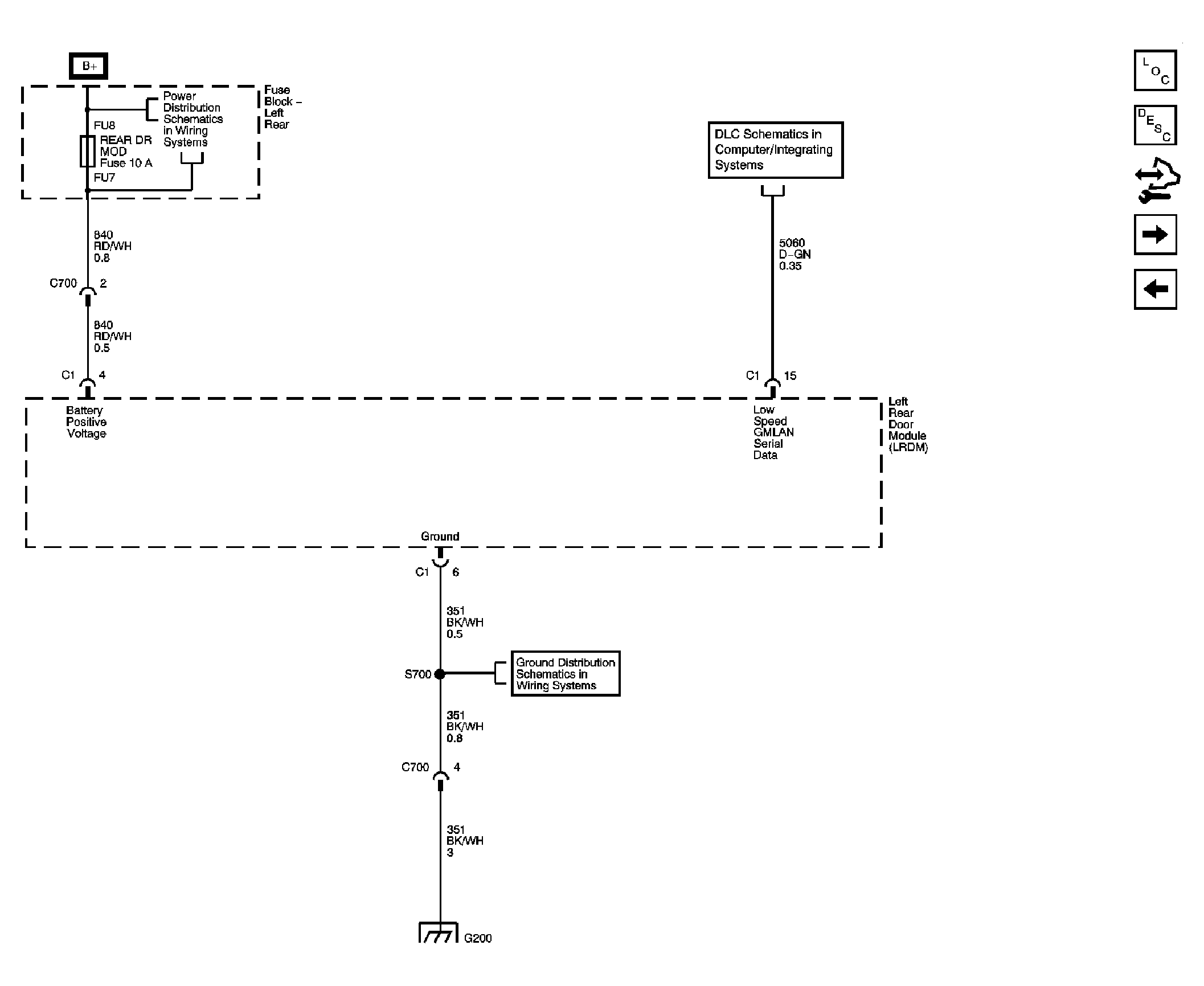

Fig 7: LRDM Power, Ground and DLC

Courtesy of GENERAL MOTORS CORP.

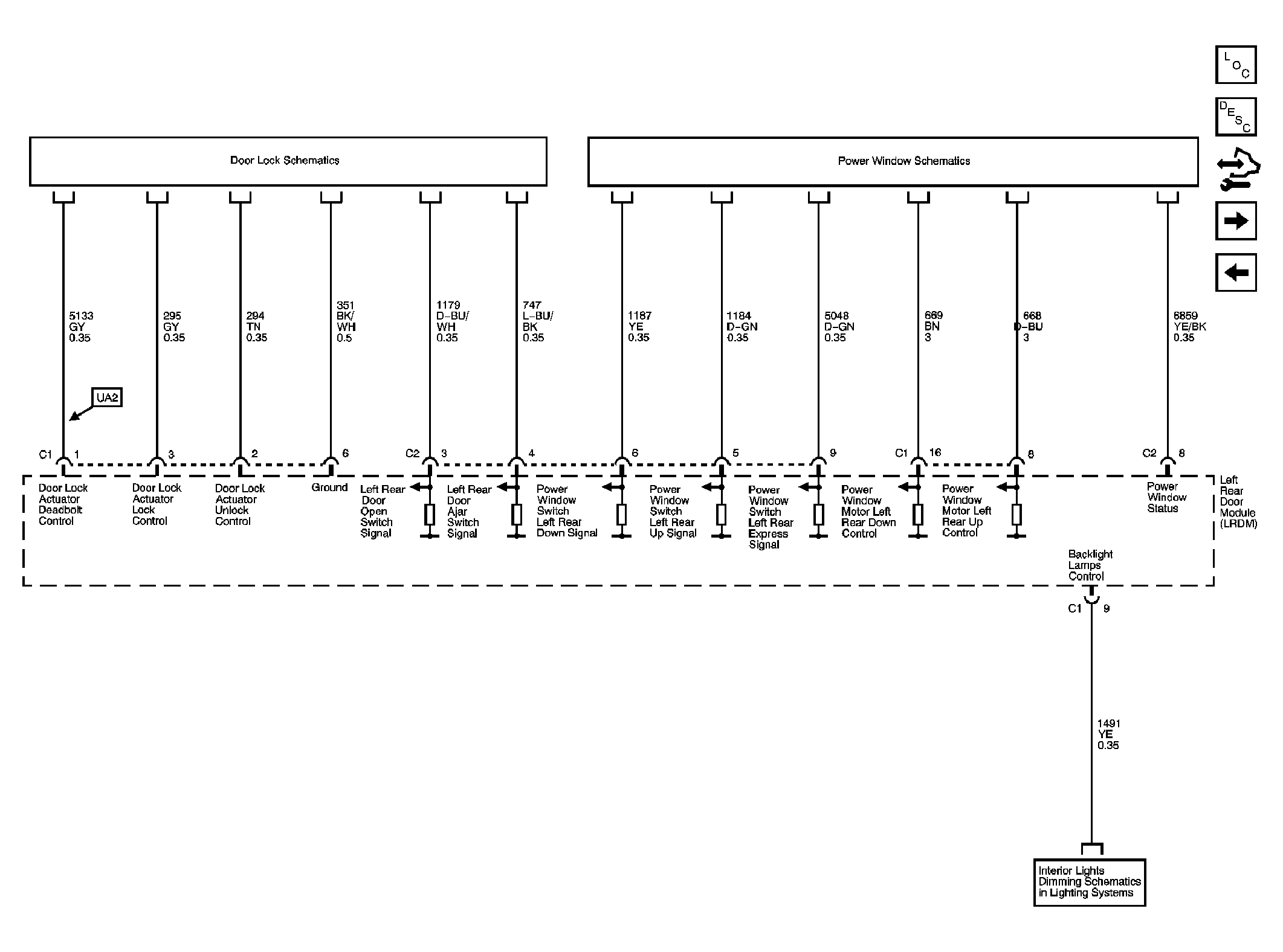

Fig 8: LRDM Signals/Controls

Courtesy of GENERAL MOTORS CORP.

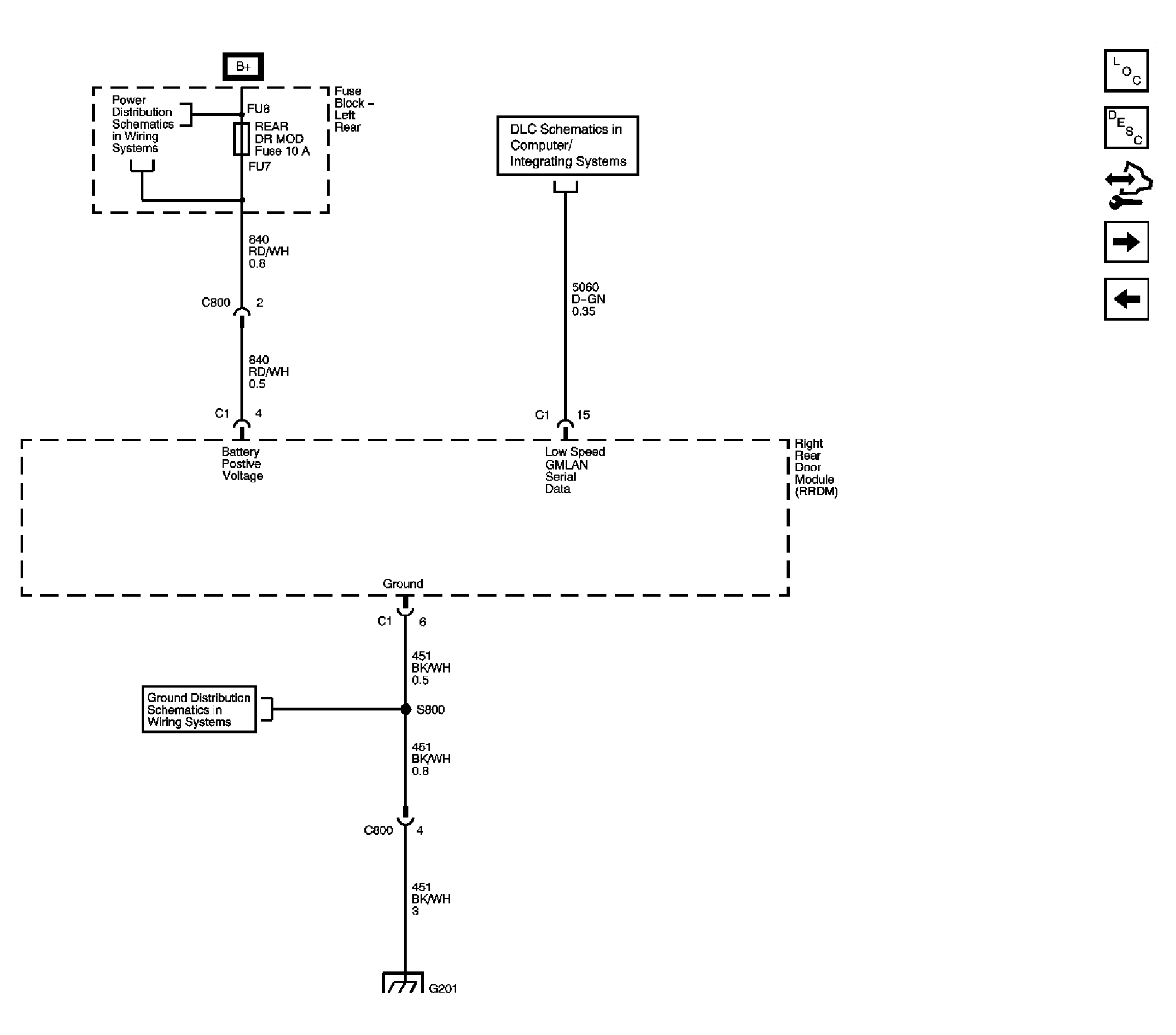

Fig 9: RRDM Power, Ground and DLC

Courtesy of GENERAL MOTORS CORP.

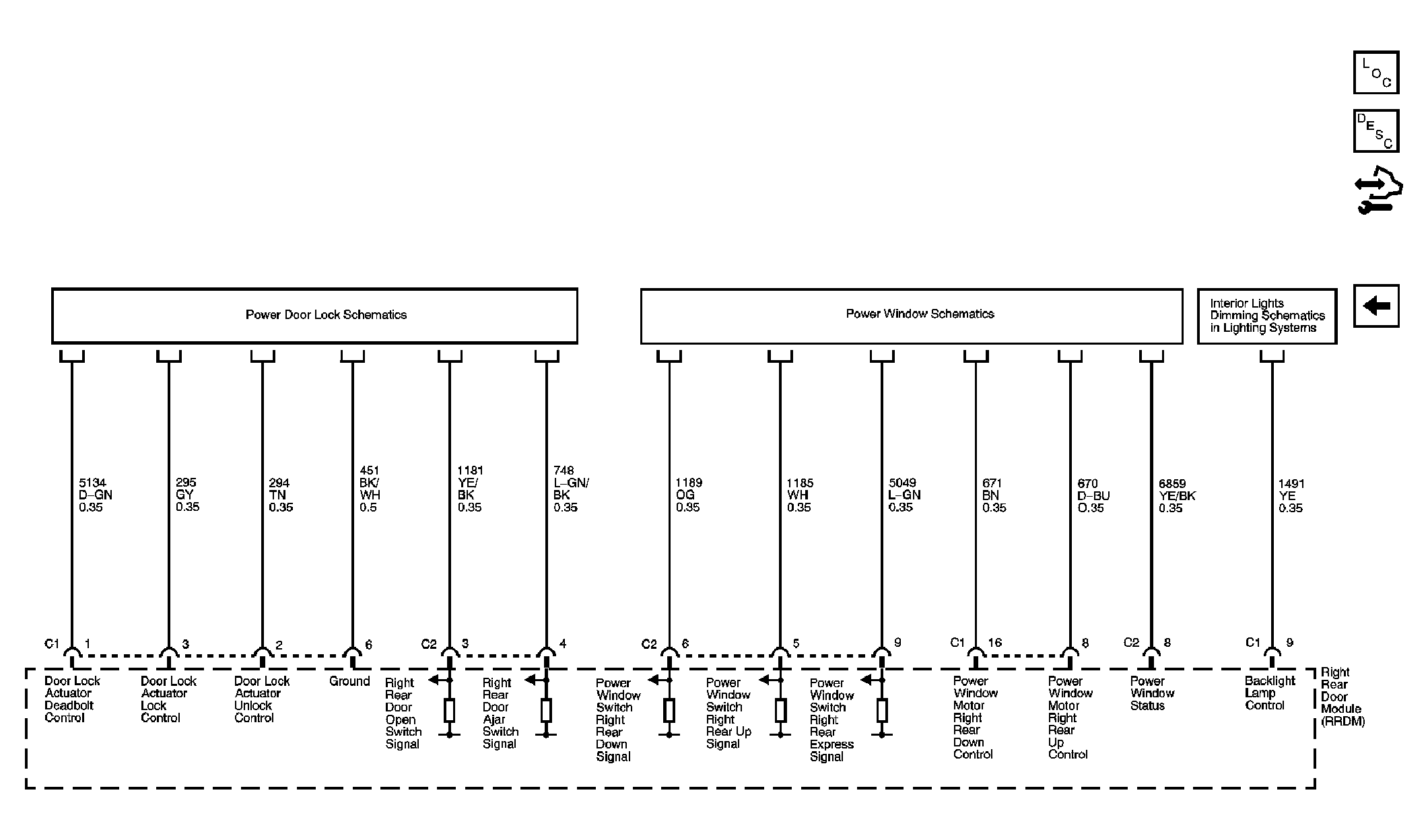

Fig 10: RRDM Signals/Controls

Courtesy of GENERAL MOTORS CORP.
