Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

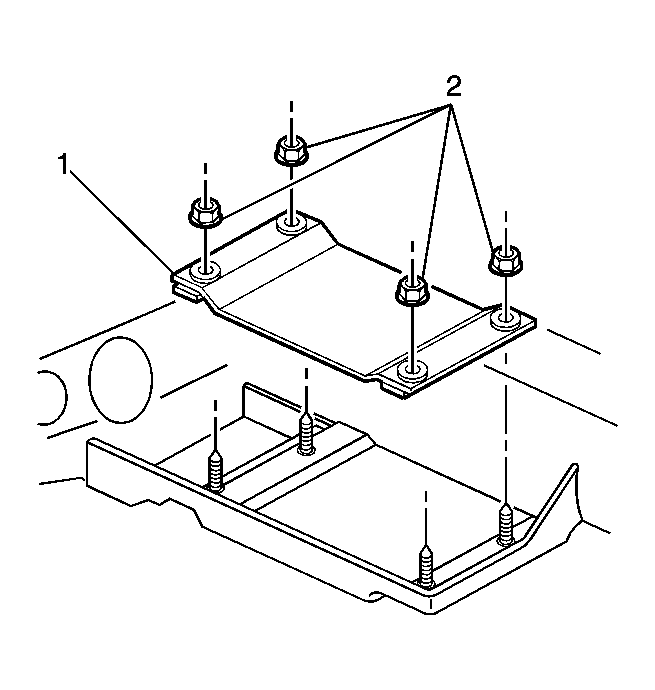

    Fig 1: Removing & Installing Brake Pressure Modulator Valve
    GM1351322Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the BPMV mounting bracket (1) to the frame.
  2. Install the 4 BPMV mounting nuts (2).

    Tighten:  Tighten the BPMV bracket mounting nuts to 12N.m (106 lb in).

  3. Install the brake pressure modulator valve to the BPMV bracket. Refer to Brake Pressure Modulator Valve Replacement (CTS)  or Brake Pressure Modulator Valve Replacement (CTS-V) .
