Radio Antenna Module - Right C2

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

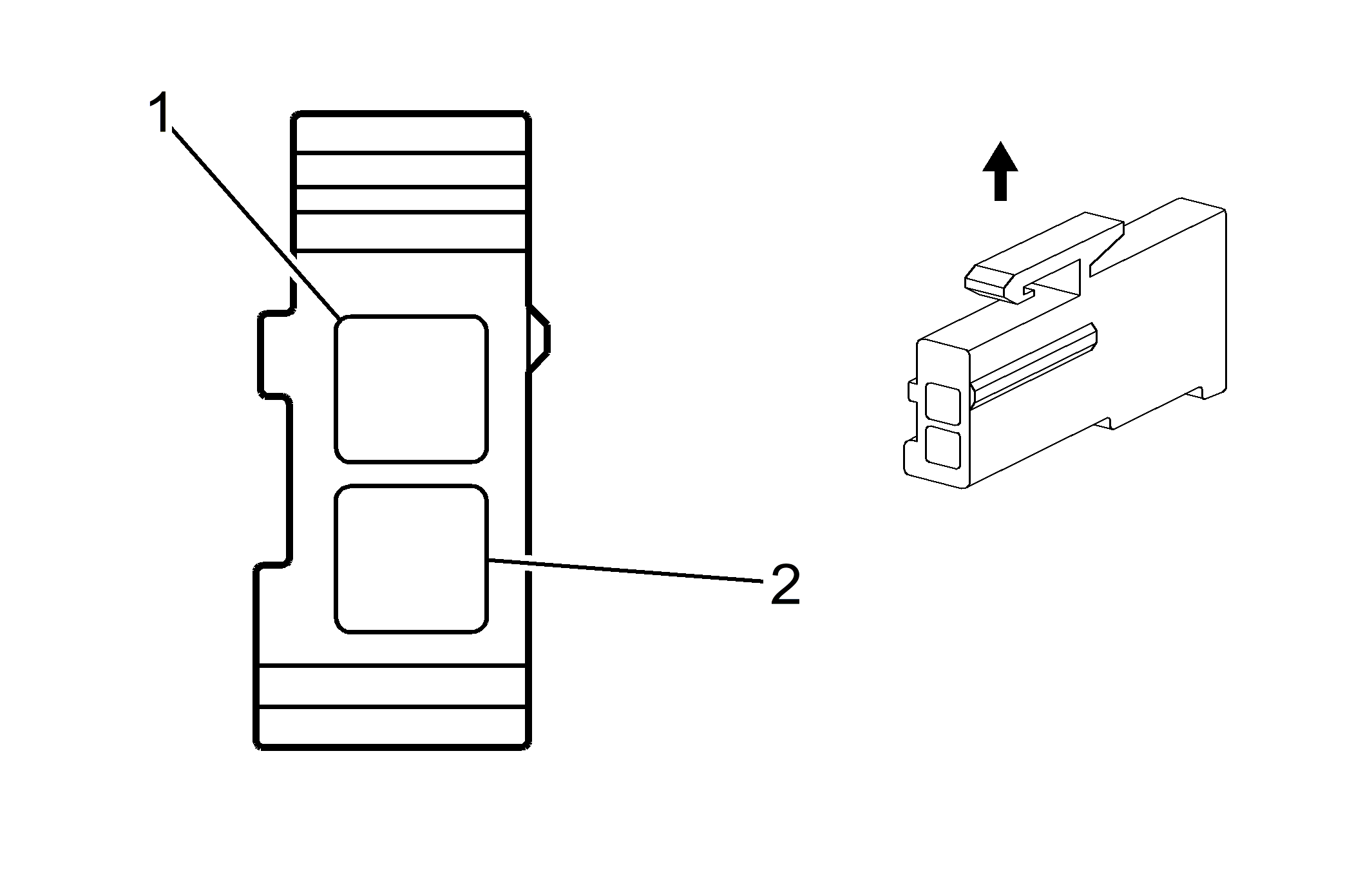

Fig 1: Radio Antenna Module - Right C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio Antenna Module - Right C2 Connector Parts Information

Connector Part Information

OEM: 10774586
Service: 88953289
Description: 2-Way F Metri-Pack 150 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Radio Antenna Module - Right C2 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	YE	-	Right Antenna Signal - AM
2	RD	-	Right Antenna Signal - FM
