Radio C2

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

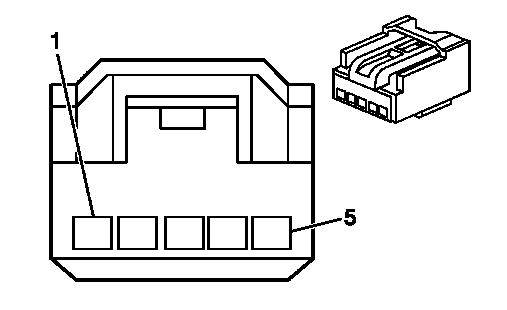

Fig 1: Radio C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio C2 Connector Parts Information

Connector Part Information

OEM: 15380274
Service: 88986439
Description: 5-Way F (BK)

Terminal Part Information

Pins: 1, 2, 2
Terminal/Tray: 15445905/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12180559/J-35616-6 (BN)

Radio C2 Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	PK	5149	Voice Recognition Audio Signal
2	BARE	1705	Drain Wire (Export)
2	PK/BK	5152	Voice Recognition Audio Low Reference
3-5	-	-	Not Used
