Power Roof Systems Component Views
WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Switch (CF5) |
| 2 |
Outside Moisture Sensor (CE1) |
| 3 |
Intellabeam Sensor (TQ5) |
| 4 |
Cellular Microphone (UE1) |
| 5 |
OnStar® Button Assembly (UE1) |
| 6 |
Inside Rearview Mirror (ISRVM) |
Courtesy of GENERAL MOTORS CORP.

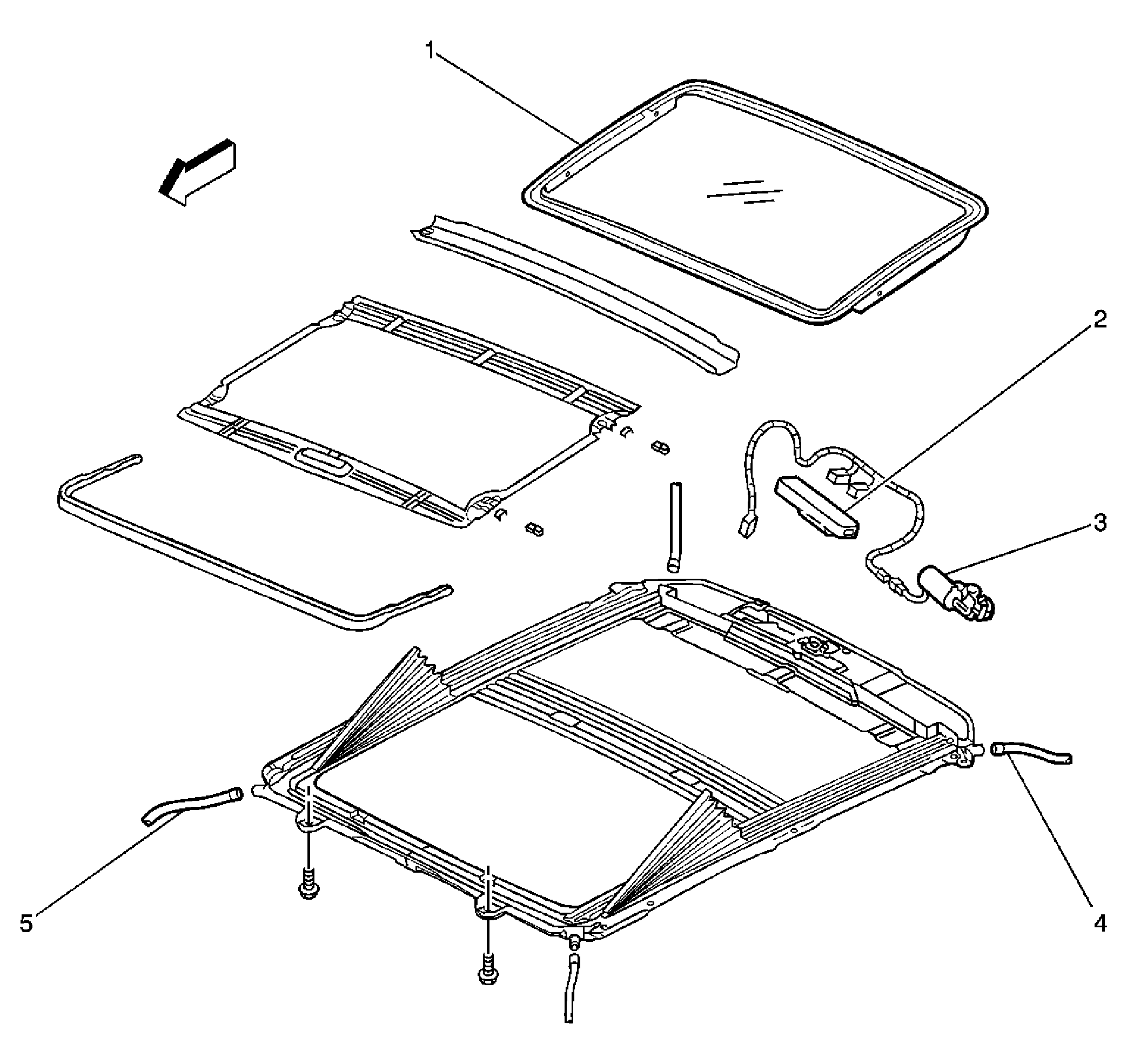

| Callout |
Component Name |
| 1 |
Sunroof Glass Panel |
| 2 |
Sunroof Module |
| 3 |
Sunroof Motor (w/Limit Switch and Obstruction Sensors)(Part of Sunroof Module) |
| 4 |
Sunroof Rear Drain Hose |
| 5 |
Sunroof Front Drain Hose |
