Keyless Entry (without ATH)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

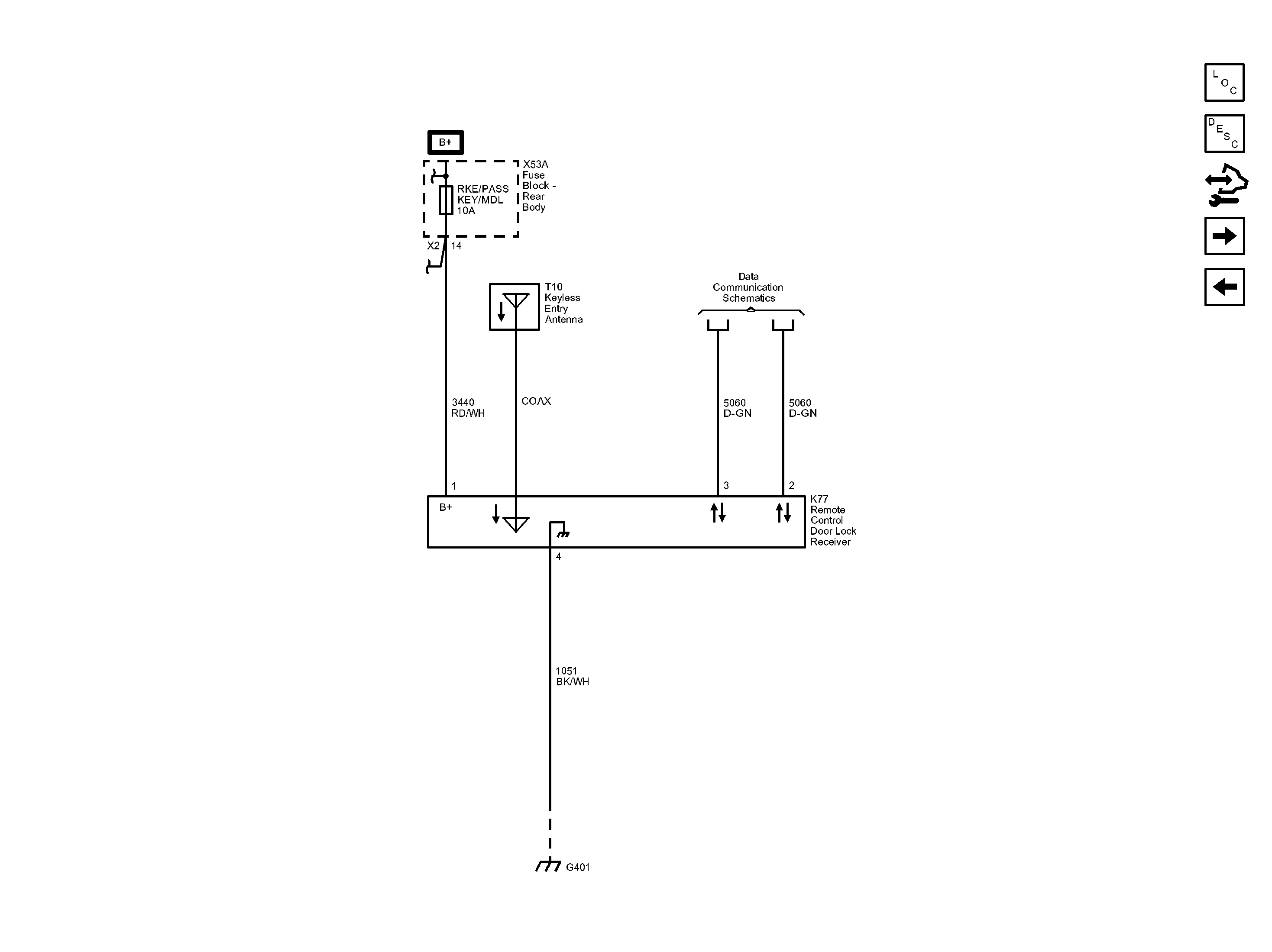

Fig 1: Keyless Entry Wiring Schematic (without ATH)
GM2779209Courtesy of GENERAL MOTORS COMPANY
