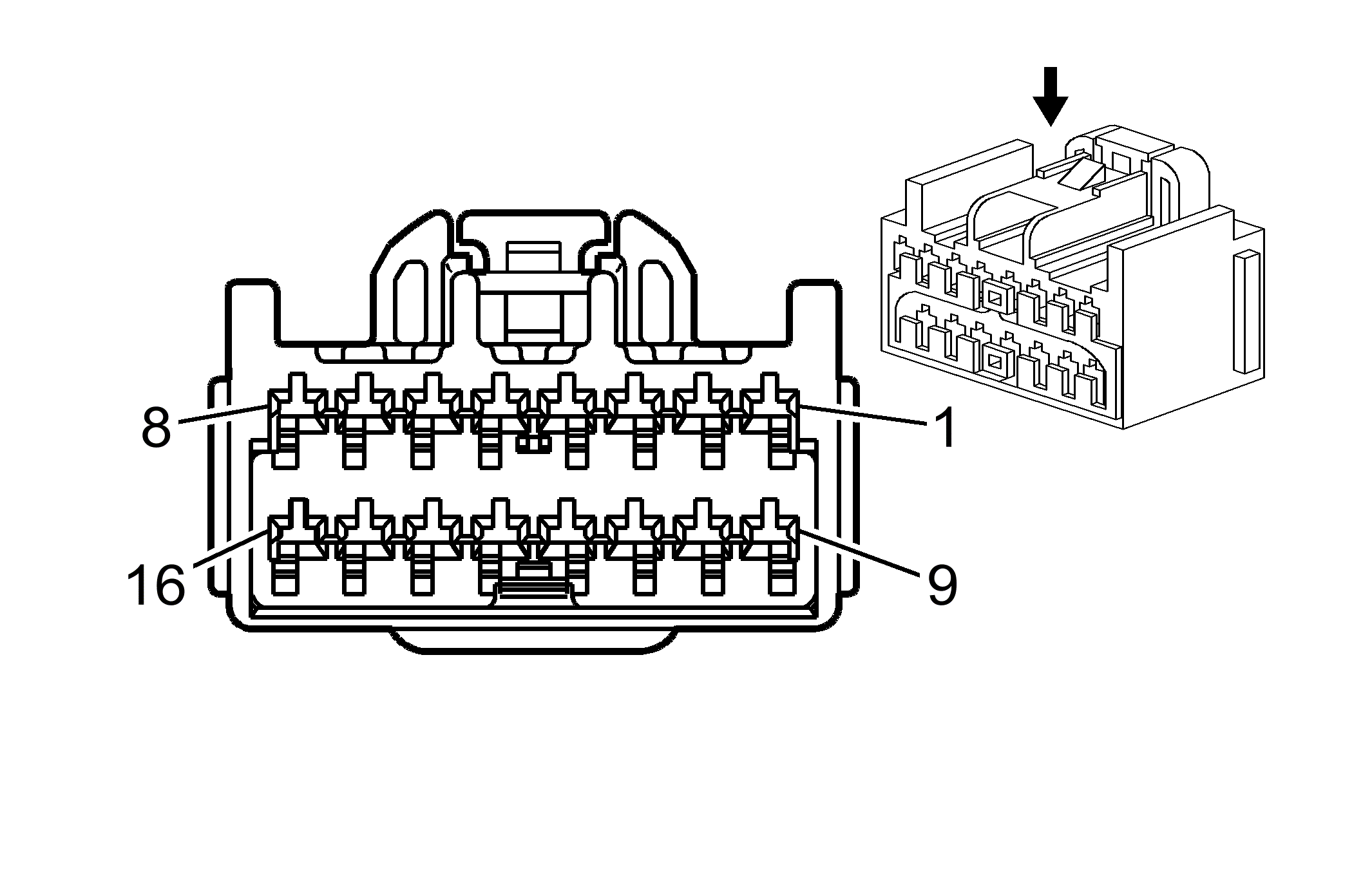

K40 Seat Memory Control Module X1 (A45)
WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Pending | Pending | Pending | Service by Harness - See Part Catalog | Service by Harness - See Part Catalog | N | A |
K40 Seat Memory Control Module X1 (A45)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1-5 | - | - | - | Not Occupied | - | - |
| 6 | 0.8 | PK | 2077 | Driver Seat Cushion Heated/Cool Ventilation Module Heat Control | I | KA1/KB6 |
| 7 | 1 | TN | 2110 | Steering Column Telescope Motor Control - Reverse | I | - |
| 8 | 1 | OG | 2098 | Steering Column Telescope Motor Forward | I | - |
| 9 | 1 | TN | 285 | Driver Seat Horizontal Motor Forward Control | I | - |
| 10 | 1 | L-GN | 284 | Driver Seat Horizontal Motor Rearward Control | I | - |
| 11 | 0.8 | L-GN | 2078 | Driver Seat Cushion Heated/Cool Ventilation Module Cool Control | I | KA1/KB6 |
| 12 | 1 | D-GN | 286 | Driver Seat Front Vertical Motor Up Control | I | - |
| 13 | 1 | D-BU | 287 | Driver Seat Front Vertical Motor Down Control | I | - |
| 14 | 0.8 | D-BU/WH | 2479 | Passenger Seat Cushion Heated/Cool Ventilation Module Heat Control | I | KA1/KB6 |
| 15 | 1 | YE | 282 | Driver Seat Rear Vertical Motor Up Control | I | - |
| 16 | 1 | L-BU/BK | 283 | Driver Seat Rear Vertical Motor Down Control | I | - |
