S84P Door Switch Panel Control Module - Passenger X5 (Coupe)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

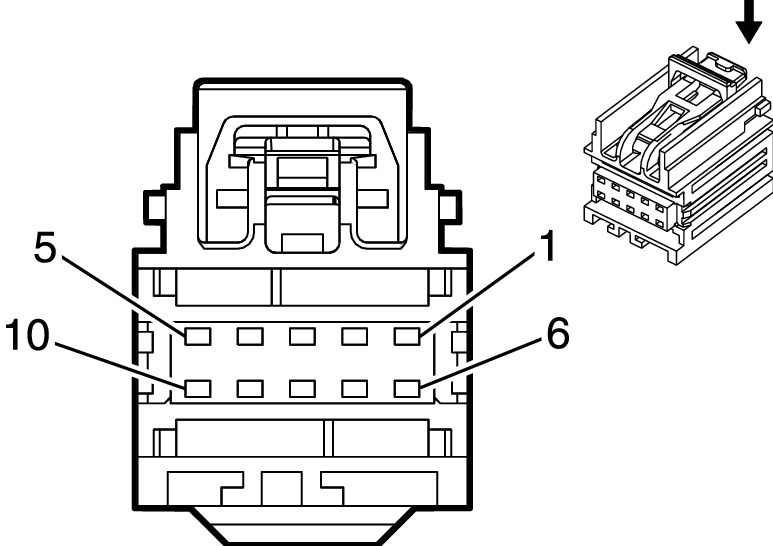

GM2235437
Connector Part Information
  • Harness Type: Front Passenger Door Trim
  • OEM Connector: 15127041
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 10-Way F 0.64 YESC Kaizen Series (GN)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13575735 J-35616-2A (GY) J-38125-553 12191812 19 E C
S84P Door Switch Panel Control Module - Passenger X5 (Coupe)

Pin Size Color Circuit Function Terminal Type ID Option
1-6 - - - Not Occupied - -
7 0.35 TN 5858 Lamp Dimming Control I -
8 - - - Not Occupied - -
9 0.35 PU 5877 Right Front Door Handle Switch Signal (4) I -
10 - - - Not Occupied - -
