Windshield Wiper System Module Replacement

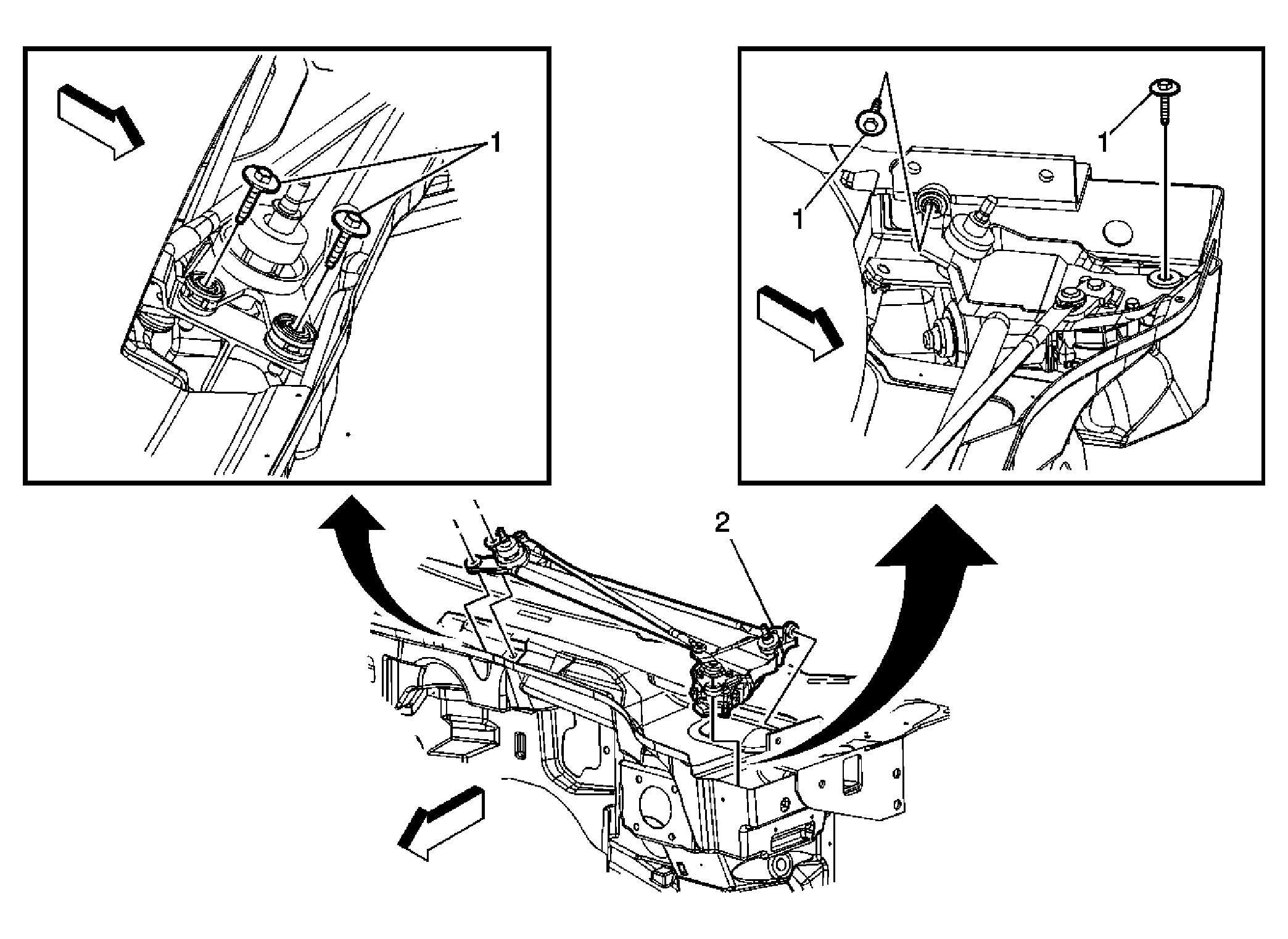

Fig 1: Identifying Windshield Wiper System Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the wiper arms. Refer to Windshield Wiper Arm Replacement . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Wiper System Module Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Windshield Wiper Drive System Module Tip: Lift the wiper module assembly from the plenum and disconnect the wiper motor electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the wiper arms. Refer to Windshield Wiper Arm Replacement .
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .

Windshield Wiper System Module Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Windshield Wiper Drive System Module
Tip: Lift the wiper module assembly from the plenum and disconnect the wiper motor electrical connector.
