Exhaust Tail Pipe Flow Control Valve Solenoid (LC3)

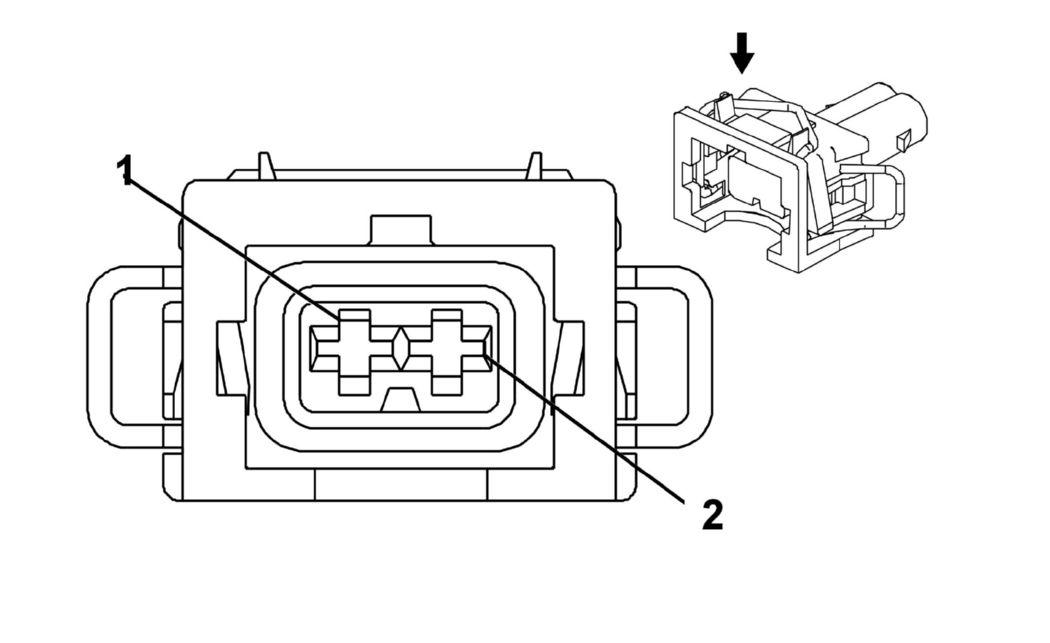

Fig 1: Exhaust Tail Pipe Flow Control Valve Solenoid (LC3) Connector End View

Courtesy of GENERAL MOTORS CORP.

Exhaust Tail Pipe Flow Control Valve Solenoid (LC3)

Pin	Wire	Circuit	Function
1	0.5 BK	1150	Ground
2	0.5 TN/WH	1962	Exhaust Valve Solenoid Supply

Connector Part Information  OEM: 12131678 Service: 89046833 Description: 2-Way F Mini-Timer Series (BK)

Terminal Part Information  Terminal/Tray: 60012941/21 Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: 12122378/J-35616-4A (PU)
