Inflatable Restraint I/P Module, X2

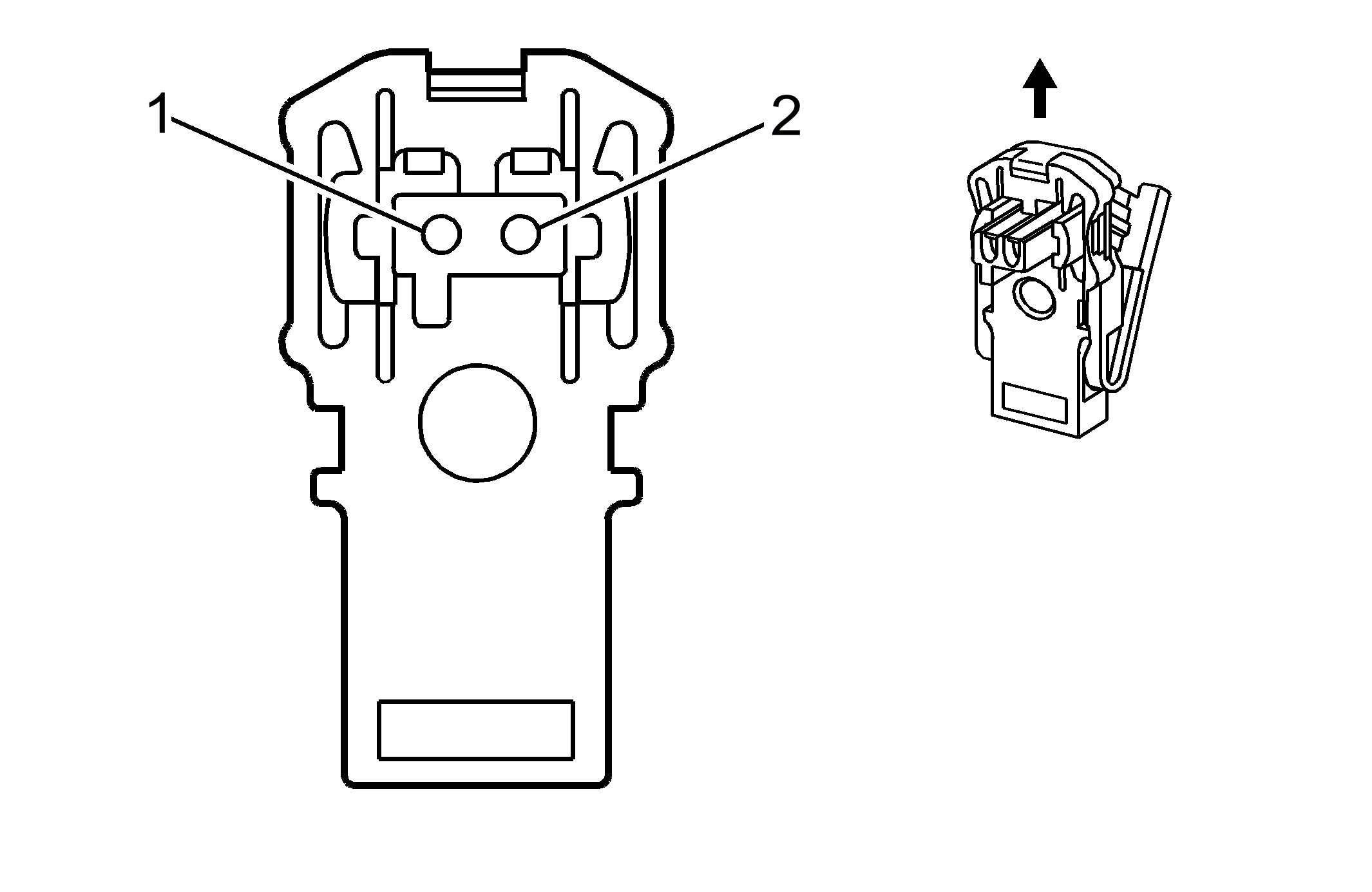

Fig 1: Inflatable Restraint I/P Module, X2 Connector End View
GM739643Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint I/P Module, X2

Pin Wire Circuit Function
1 0.5 GY 3027 I/P Module Stage 2 - High Control
2 0.5 PU 3026 I/P Module Stage 2 - Low Control
Connector Part Information
  • OEM: CA-252-92-5 Q
  • Service: See Catalog
  • Description: 2-Way F (PU +YE Case)
Terminal Part Information
  • Terminal/Tray: Service with Pigtail
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
