Fuel Level Sensor

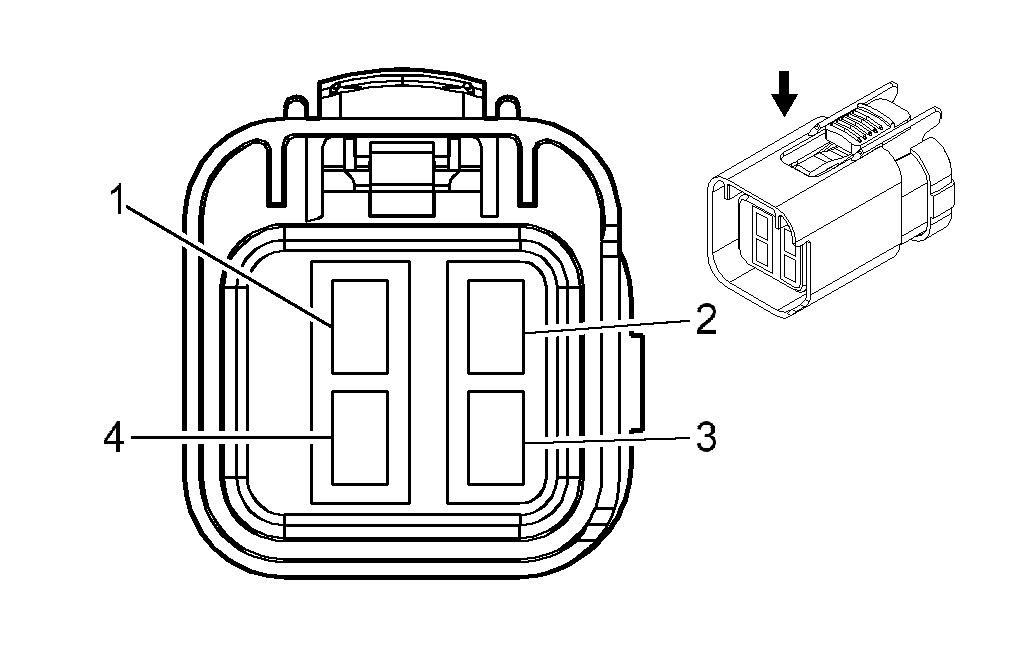

Fig 1: Fuel Level Sensor Connector End View
GM697003Courtesy of GENERAL MOTORS CORP.
Fuel Level Sensor

Pin Wire Circuit Function
1 0.5 L-BU 1937 Fuel Level Sensor Signal - Secondary
2 - - Not Used
3 0.5 BK/WH 850 Ground
4 0.5 BK 808 Low Reference
Connector Part Information
  • OEM: 15324862
  • Service: 15306441
  • Description: 4-Way F Metri-Pack 150.2 Series (BK)
Terminal Part Information
  • Terminal/Tray: 54001800/22
  • Core/Insulation Crimp: 2/4
  • Release Tool/Test Probe: 12094429/J-35616-4A (PU)
