Component Connector End Views: Generator

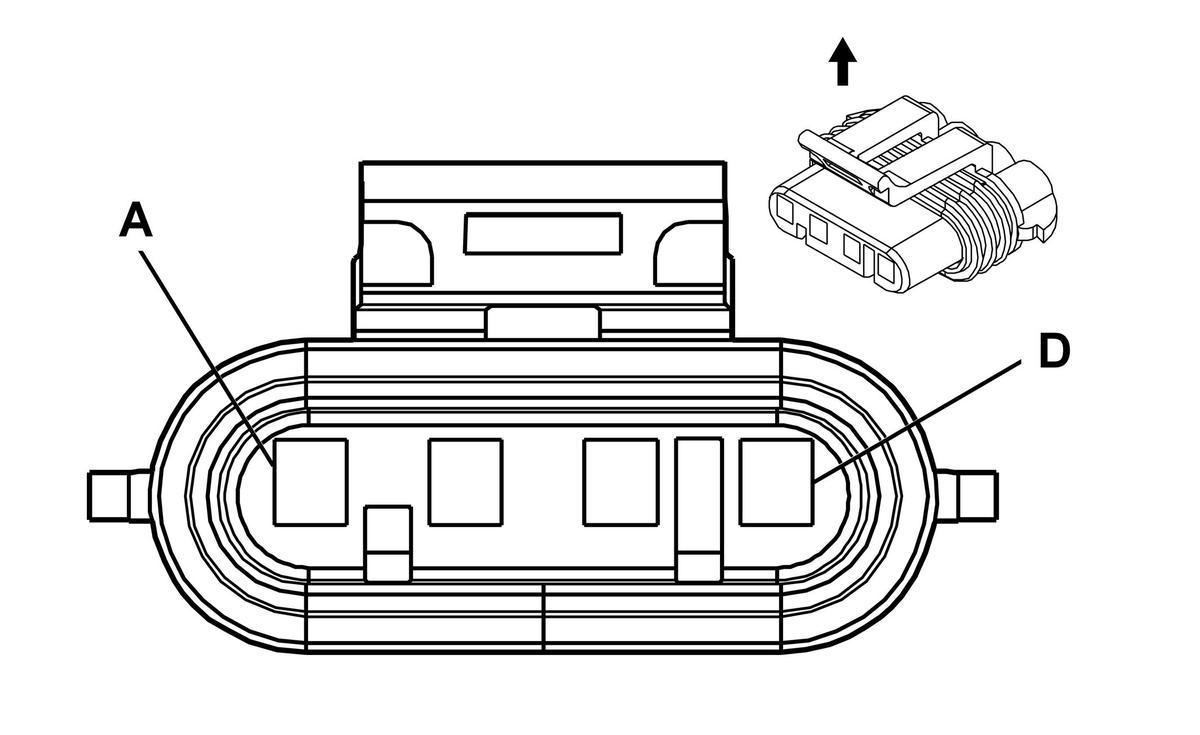

Fig 1: Generator Connector End View
GM697046Courtesy of GENERAL MOTORS CORP.
Generator

Pin Wire Circuit Function
A - - Not Used
B 0.35 OG 225 Generator Turn On Signal
C 0.35 GY 23 Generator Field Duty Cycle Signal
D 0.5 RD/WH 2540 Battery Positive Voltage
Connector Part Information
  • OEM: 12186568
  • Service: See Catalog
  • Description: 4-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
