Memory Seat Module - Driver X1

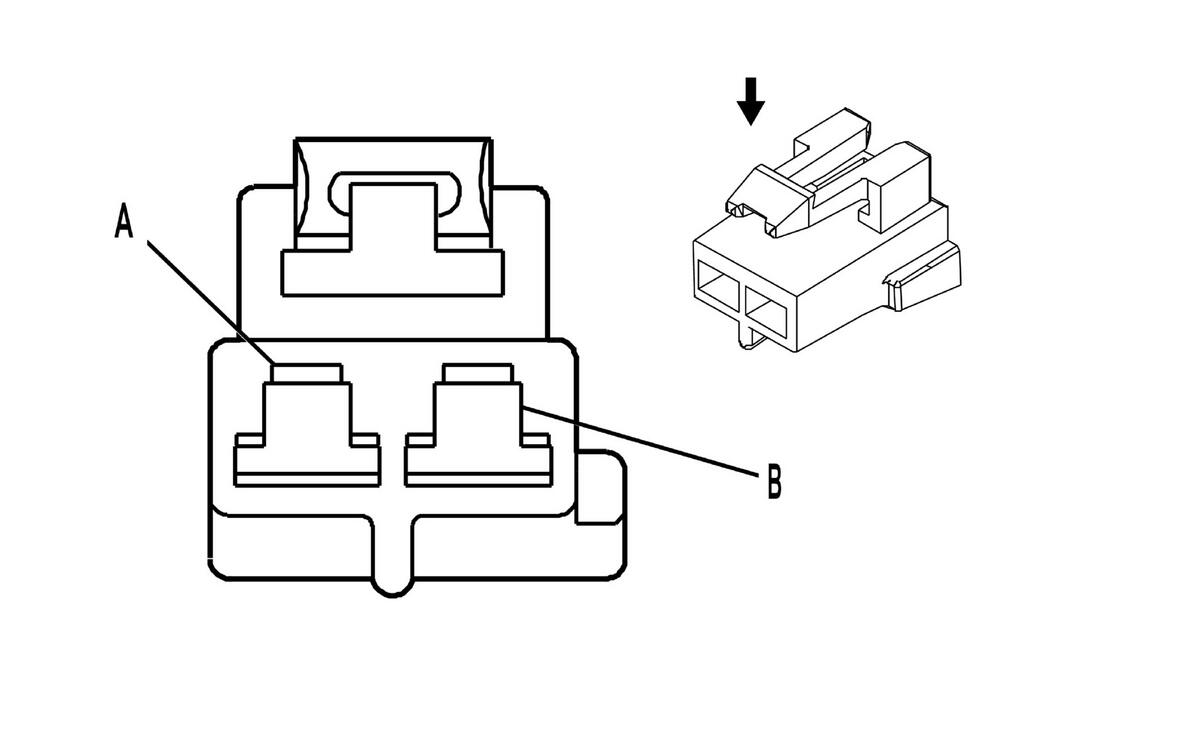

Fig 1: Memory Seat Module - Driver X1 Connector End View
GM808706Courtesy of GENERAL MOTORS CORP.
Memory Seat Module - Driver X1

Pin Wire Circuit Function
A 3 RD/WH 1540 Battery Positive Voltage
B 3 BK 1150 Ground
Connector Part Information
  • OEM: 12064749
  • Service: 12101888
  • Description: 2-Way F Metri-Pack 480 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12084595/2
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12094430/J-35616-40 (BU)
