Radio Antenna Module - Left

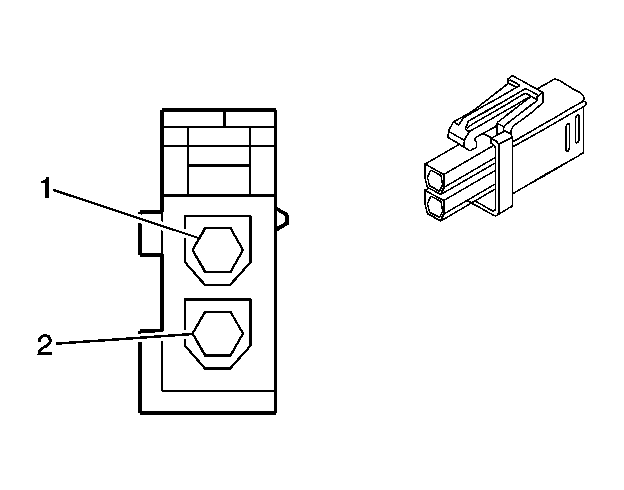

Fig 1: Radio Antenna Module - Left Connector End View
GM1664518Courtesy of GENERAL MOTORS CORP.
Radio Antenna Module - Left

Pin Wire Circuit Function
1 0.35 GN - Low Reference
2 0.35 BU - FM 2 Signal
Connector Part Information
  • OEM: 172165-1
  • Service: See Catalog
  • Description: 2-Way M Mini-Universal Mate-N-Lock Series (NA)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
