Windshield Outside Moisture Sensor
Courtesy of GENERAL MOTORS CORP. Windshield Outside Moisture Sensor
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 GY |
91 |
Windshield Wiper Switch Signal 2 |
| 2 |
0.35 L-GN |
1715 |
Windshield Wiper Switch High Signal |
| 3 |
0.35 BK |
1550 |
Ground |
| 4 |
0.35 YE |
143 |
Accessory Voltage |
| 5 |
0.35 L-BU |
1714 |
Windshield Wiper Switch Low Signal |
| 6 |
0.35 PK |
94 |
Windshield Washer Switch Signal |
| 7 |
0.35 PK |
5780 |
Windshield Wiper Motor Park Switch Signal |
| 8 |
- |
- |
Not Used |

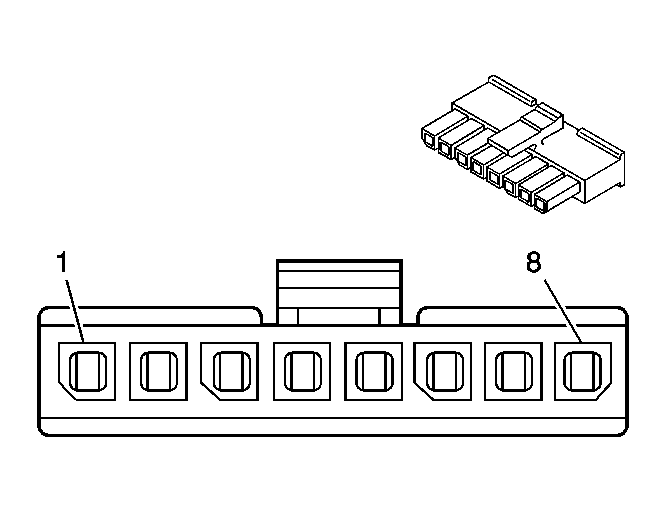

Connector Part Information
- OEM: 15398934
- Service: 88953367
- Description: 8-Way F Micro-Fit Series (BK)
|
Terminal Part Information
- Terminal/Tray: 43030-0010/23
- Core/Insulation Crimp: H/H
- Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)
|
