Windshield Wiper/Washer Switch
Courtesy of GENERAL MOTORS CORP. Windshield Wiper/Washer Switch
| Pin |
Wire |
Circuit |
Function |
| G |
0.35 PK |
94 |
Windshield Washer Switch Signal |
| H |
0.35 L-BU |
1714 |
Windshield Wiper Switch Low Signal |
| J |
- |
- |
Not Used |
| K |
0.35 L-GN |
1715 |
Windshield Wiper Switch High Signal |
| L |
- |
- |
Not Used |
| M |
0.35 BK |
1450 |
Ground |
| N |
- |
- |
Not Used |

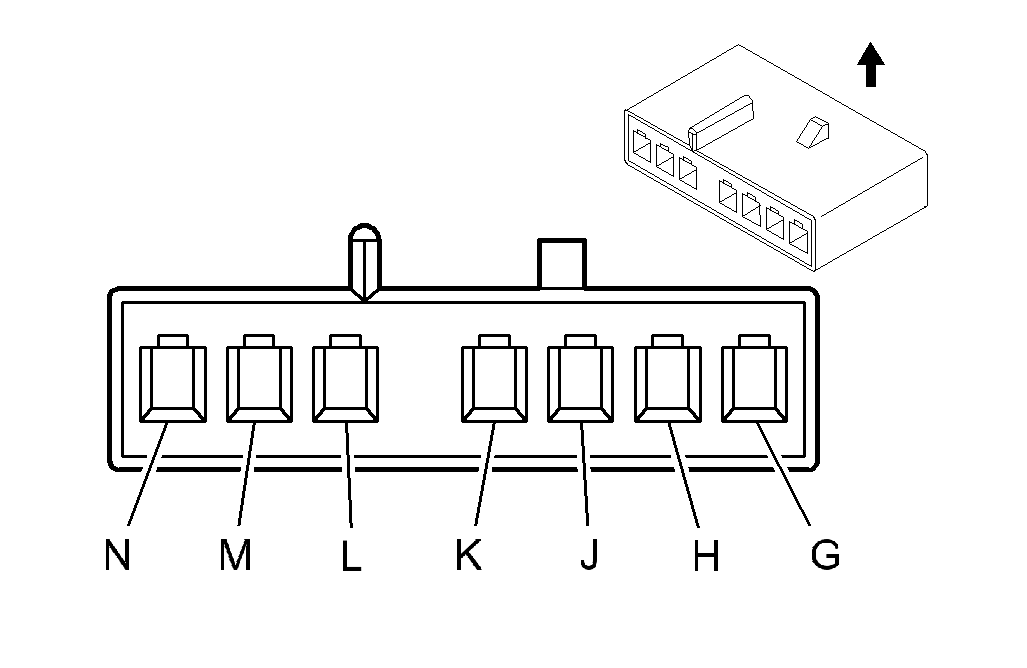

Connector Part Information
- OEM: 15339096
- Service: See Catalog
- Description: 7-Way F 150 Series (BK)
|
Terminal Part Information
- Terminal/Tray: 12064971/5
- Core/Insulation Crimp: E/C
- Release Tool/Test Probe: 12094429/J-35616-14 (GN)
|
