Passenger Compartment/Roof Component Views

Fig 1: Locating Modules

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Control Module
2	Digital Radio Receiver
2	Distance Sensing Cruise Control (DSCC) Module
4	Memory Seat Module - Driver
5	Driver Door Module (DDM)
6	Radio
7	Instrument Panel Cluster (IPC)
8	Head Up Display (HUD)
9	Remote Control Door Lock Receiver (RCDLR)
10	Electronic Brake Control Module (EBCM)
11	Cruise Control Forward Vehicle Distance Sensor
12	Transmission Control Module (TCM)
13	Engine Control Module (ECM)
14	Body Control Module (BCM)
15	Audio Amplifier
16	Steering Column Lock Control Module (Export)
17	Inflatable Restraint Sensing and Diagnostic Module (SDM)
18	Front Passenger Door Module (FPDM)
19	HVAC Control Module
20	Object Alarm Module
21	Vehicle Communication Interface Module (VCIM)
22	Radio Antenna Ground Plate
23	Radio Antenna Module - Right
24	Radio Antenna Module - Left

Fig 2: Identifying Garage Door Opener

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener (GDO)

Fig 3: Identifying Above Windshield Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunshade - Left
2	Inside Rearview Mirror
3	Cellular Telephone Microphone
4	Sunshade - Right
5	Folding Top Front Locating Pin Position Switch

Fig 4: Identifying Windshield Outside Moisture Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Outside Moisture Sensor

Fig 5: Identifying Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Driver
2	Speaker - Driver Seat Left
3	Speaker - Driver Seat Right
4	Door Latch - Driver
5	Inflatable Restraint Side Impact Module - Left
6	Seat Back Heated/Cooled Ventilation Module - Driver
7	Seat Back Ventilation Heating and Cooling Module - Driver
8	Seat Lumbar Adjuster Switch - Driver Upper
9	Seat Lumbar Adjuster Switch - Driver Lower
10	Seat Adjuster Switch - Driver
11	Inflatable Restraint Seat Position Sensor - Driver
12	Seat Adjuster Switch - Driver
13	Memory Seat Adjuster Switch - Driver

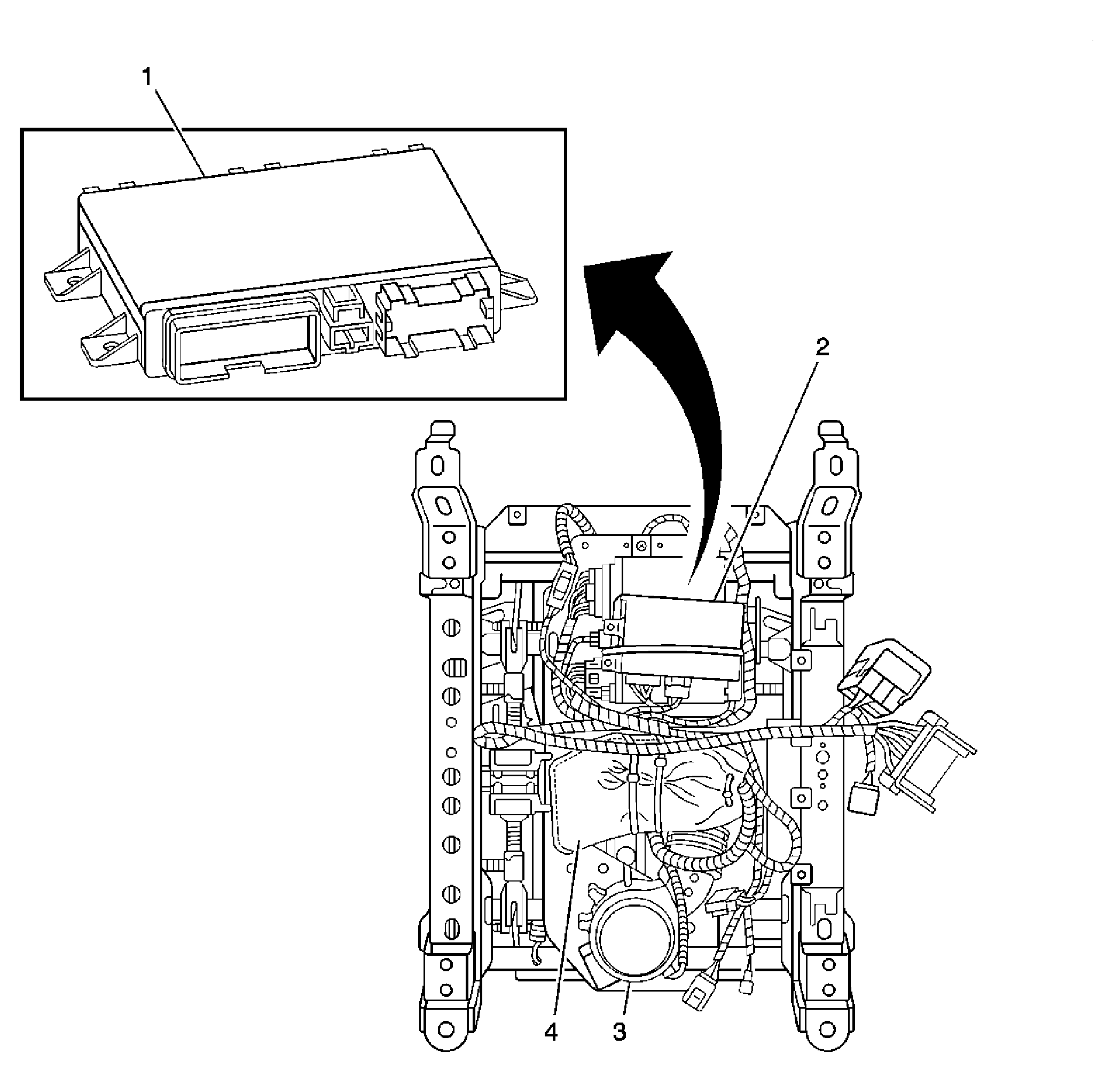

Fig 6: Identifying Bottom Of Drivers Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Memory Seat Module - Driver
2	Seat Climate Control Module - Driver
3	Seat Ventilation Heating and Cooling Blower - Driver
4	Seat Lumbar Pump/Control Module - Driver

Fig 7: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Passenger Seat Right
2	Speaker - Passenger Seat Left
3	Seat Belt Pretensioner - Passenger
4	Seat Adjuster Switch - Passenger
5	Inflatable Restraint Seat Position Sensor - Passenger
6	Seat Adjuster Switch - Passenger
7	Seat Lumbar Adjuster Switch - Passenger Lower
8	Seat Lumbar Adjuster Switch - Passenger Upper
9	Seat Cushion Ventilation Heating and Cooling Module - Passenger
10	Seat Back Ventilation Heating and Cooling Module - Passenger
11	Inflatable Restraint Side Impact Module - Right
12	Door Latch - Passenger

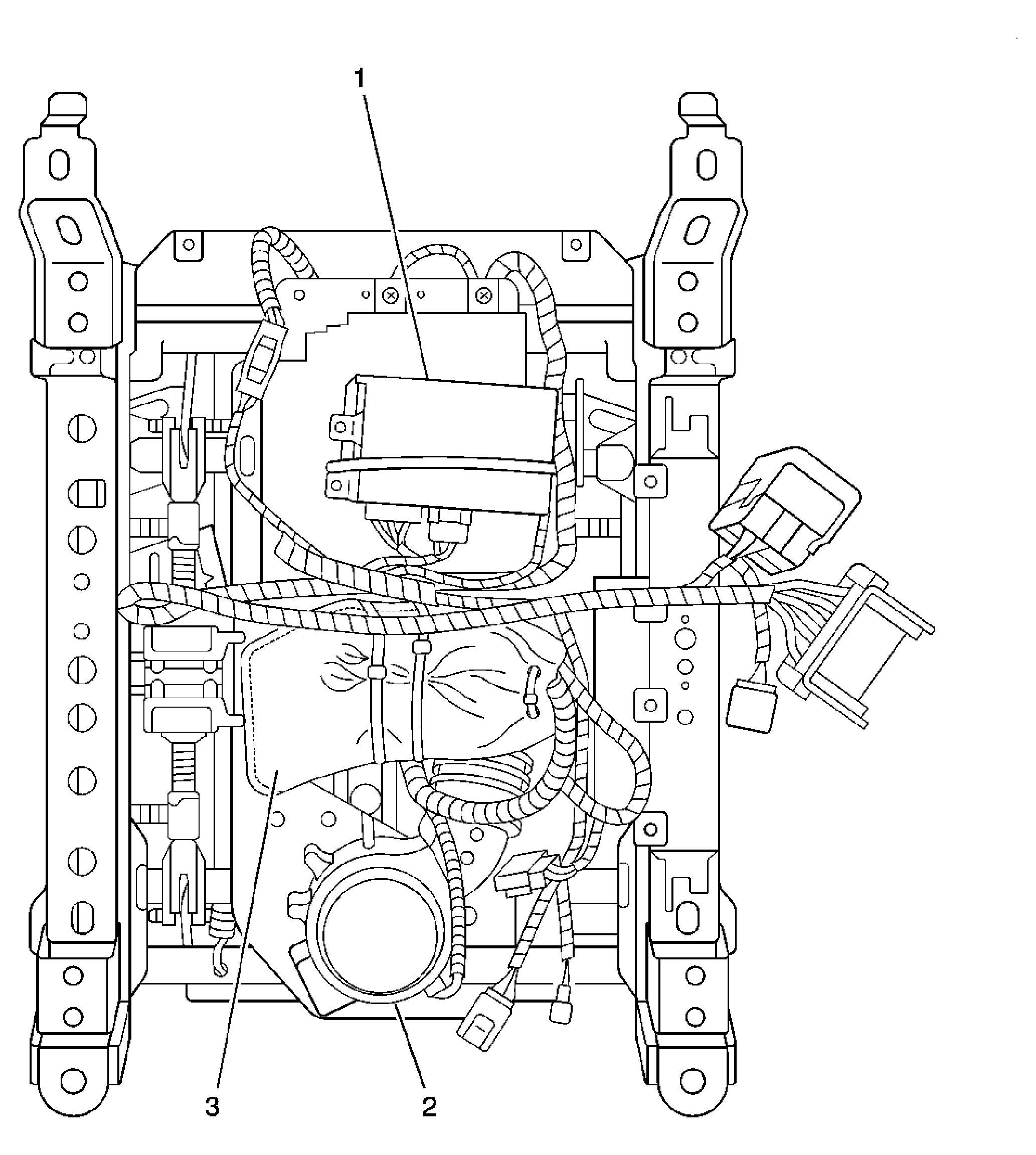

Fig 8: Identifying Bottom Of Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Climate Control Module - Passenger
2	Seat Ventilation Heating and Cooling Blower - Passenger
3	Seat Lumbar Pump/Control Module - Passenger

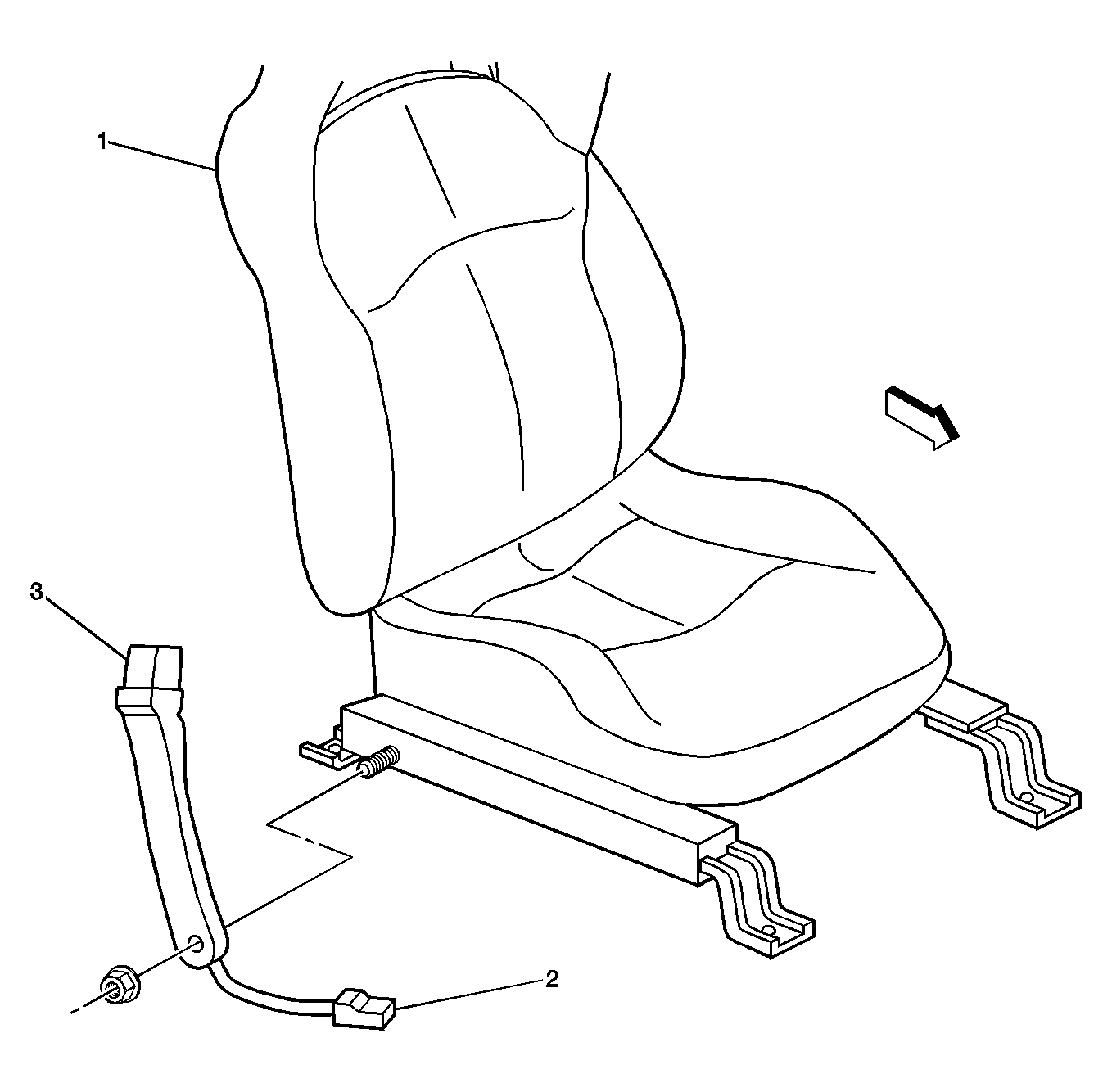

Fig 9: Identifying Driver Seat, Seat Belt Switch & Seat Buckle (Driver)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Drivers Seat
2	Seat Belt Switch-Driver Connector
3	Seat Belt Buckle-Driver

Fig 10: Identifying Center Of Vehicle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver
2	Rear Parking Assist (RPA) Display
3	Distance Sensing Cruise Control (DSCC) Module

Fig 11: Identifying Behind Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Object Alarm Module
2	Vehicle Communication Interface Module (VCIM)
3	Rear Parking Assist (RPA) Diagnostic Connector

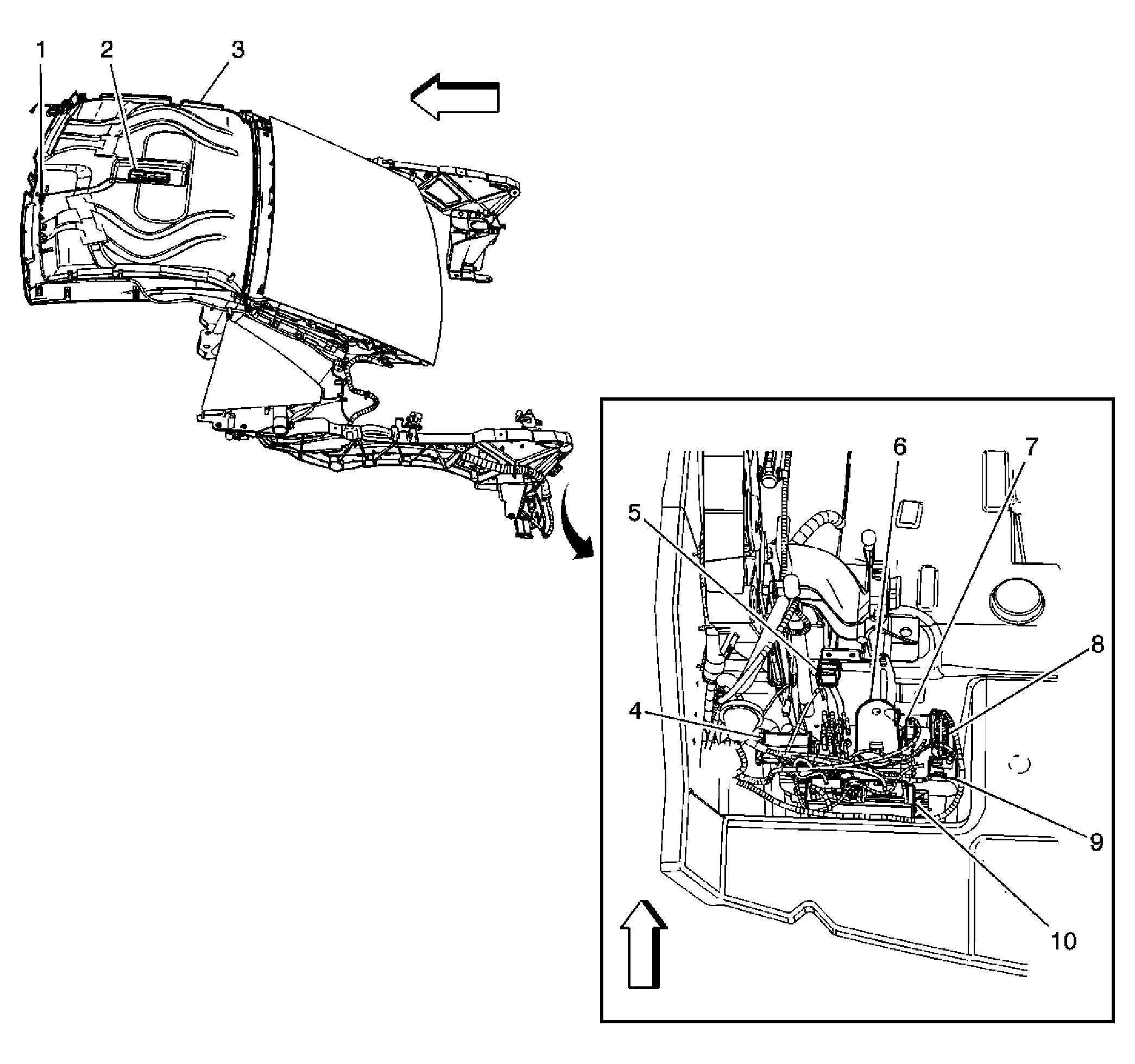

Fig 12: Locating Folding Top Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X333
2	Intrusion Sensor
3	Folding Top
4	X431
5	X435
6	Folding Top Pump/Motor Assembly
7	X911
8	X455
9	X433
10	Folding Top Control Module
