Front of Vehicle/Engine Compartment Component Views

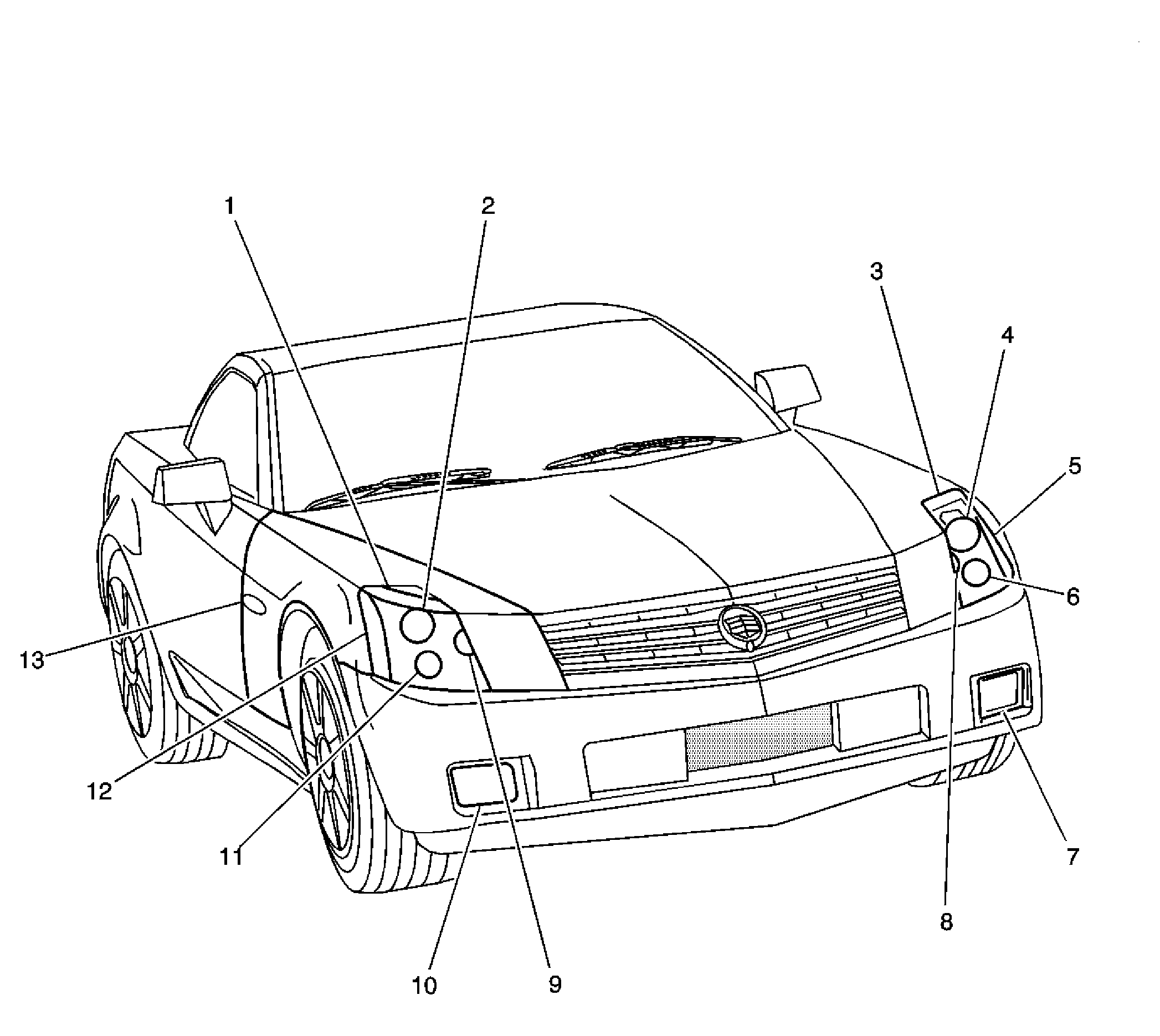

Fig 1: Identifying Front Of Vehicle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Assembly - Right
2	Turn Signal Lamp - Right Front
3	Headlamp Assembly - Left
4	Turn Signal Lamp - Left Front
5	Marker Lamp - Left Front
6	Headlamp Ballast - Left
7	Fog Lamp - Left Front
8	Park Lamp - Left Front (- T90), Position Lamp - Left (T90)
9	Park Lamp - Right Front (- T90), Position Lamp - Right (T90)
10	Fog Lamp - Right Front
11	Headlamp Ballast - Right
12	Marker Lamp - Right Front
13	Repeater Lamp - Right Front (T90) Repeater Lamp - Left Front Similar

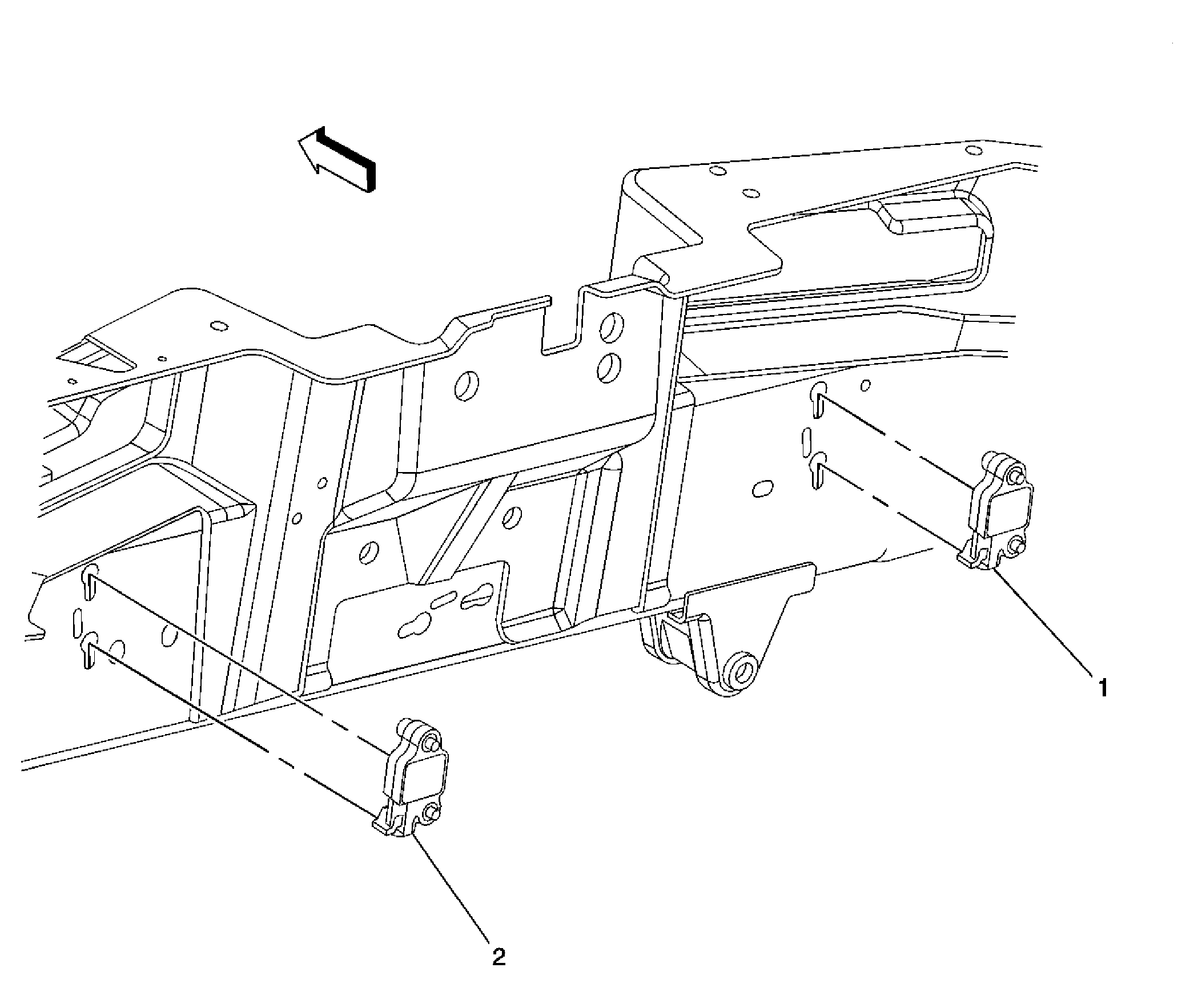

Fig 2: Identifying Inflatable Restraint Front End Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Right
2	Inflatable Restraint Front End Sensor - Left

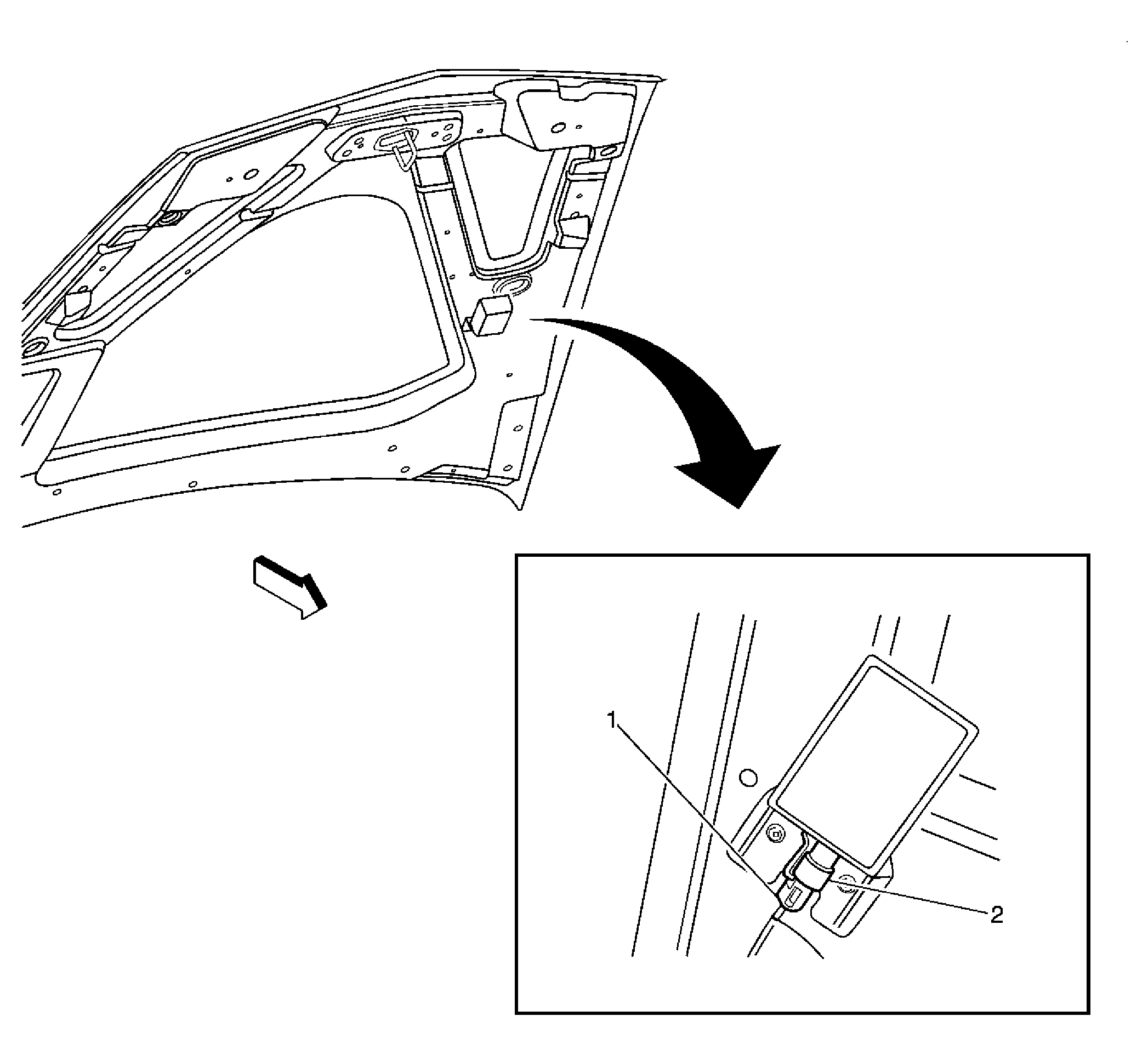

Fig 3: Locating Underhood Lamp Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Underhood Lamp Connector
2	Underhood Lamp

Fig 4: Identifying Left Front Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM)
2	Brake Pressure Modulator Valve (BPMV)
3	Brake Fluid Level Switch
4	Brake Fluid Pressure Sensor

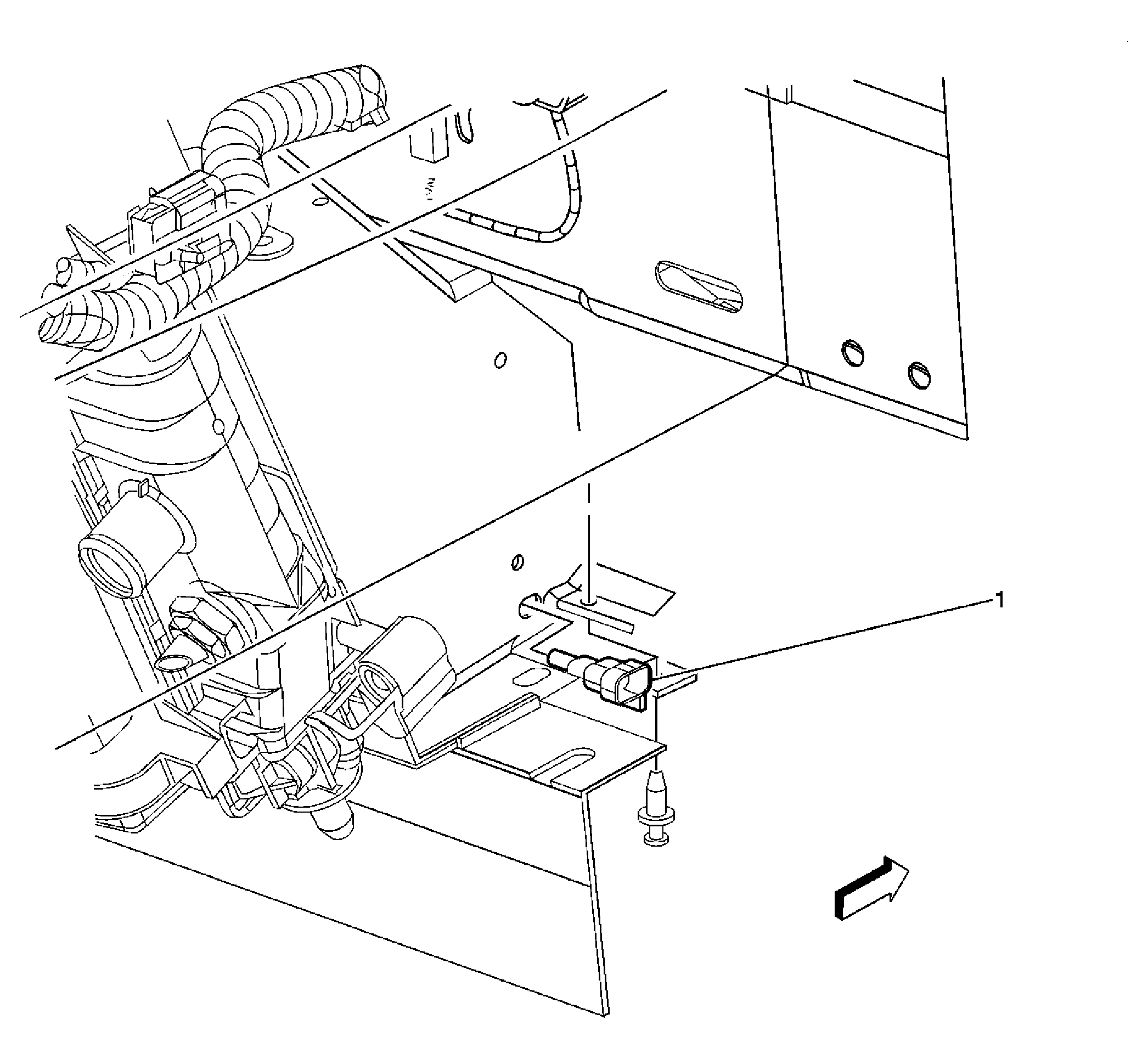

Fig 5: Identifying Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor

Fig 6: Identifying Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

Fig 7: Locating Underhood Fuse Block & Battery

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Battery

Fig 8: Identifying Lower Right Rear Of Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM)
2	Transmission Control Module (TCM) Connector
3	Engine Control Module (ECM) Connectors
4	Engine Control Module (ECM)
