Distance Sensing Cruise Control Module Replacement

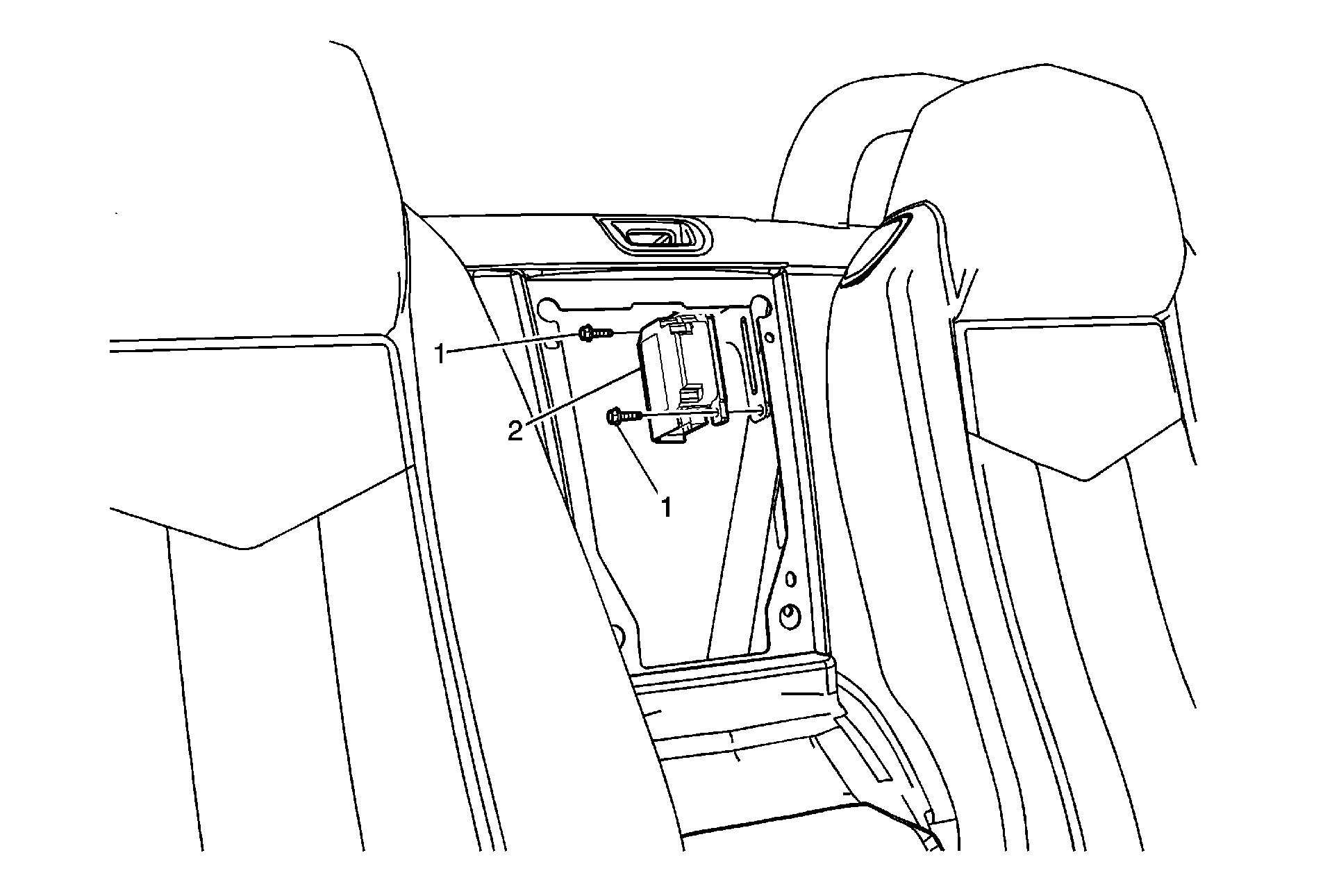

Fig 1: Identifying Distance Sensing Cruise Control Module
GM2268318Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the body rear compartment. Refer to BODY REAR COMPARTMENT REPLACEMENT .
1 Cruise Control Module Bolt (Qty: 2)
CAUTION: Refer to FASTENER CAUTION

Tighten:  3 N.m (27 lb in)
2 Cruise Control Module
Tip:  Disconnect the electrical connector.
Refer to Control Module References for programming and setup information.
