Installation Procedure

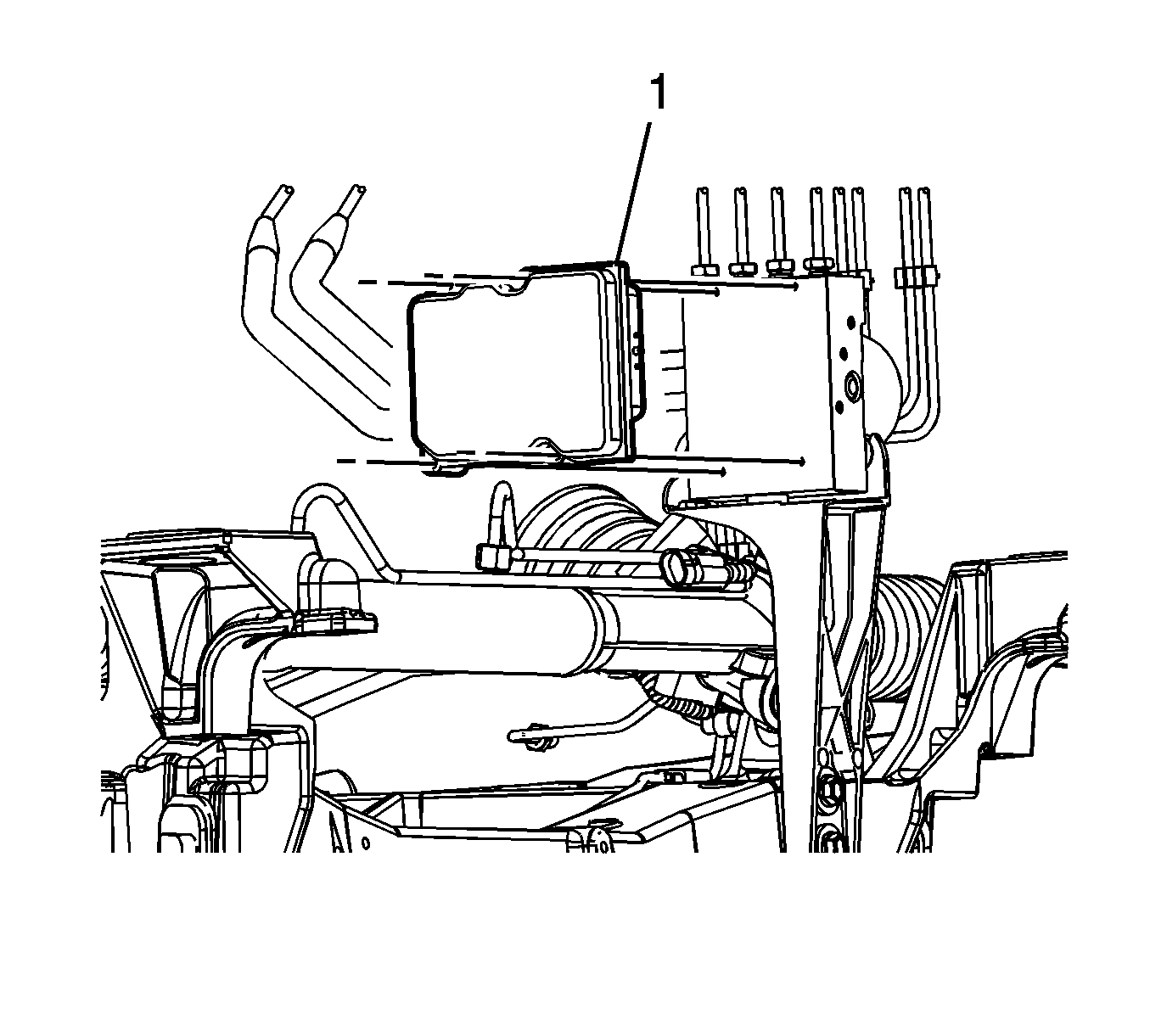

    Fig 1: Identifying EBCM
    GM2141646Courtesy of GENERAL MOTORS CORP.
  1. Install the EBCM (1) by carefully pressing straight onto the BPMV.

    Do not force the components together.

    2. CAUTION: Refer to Fastener Caution .

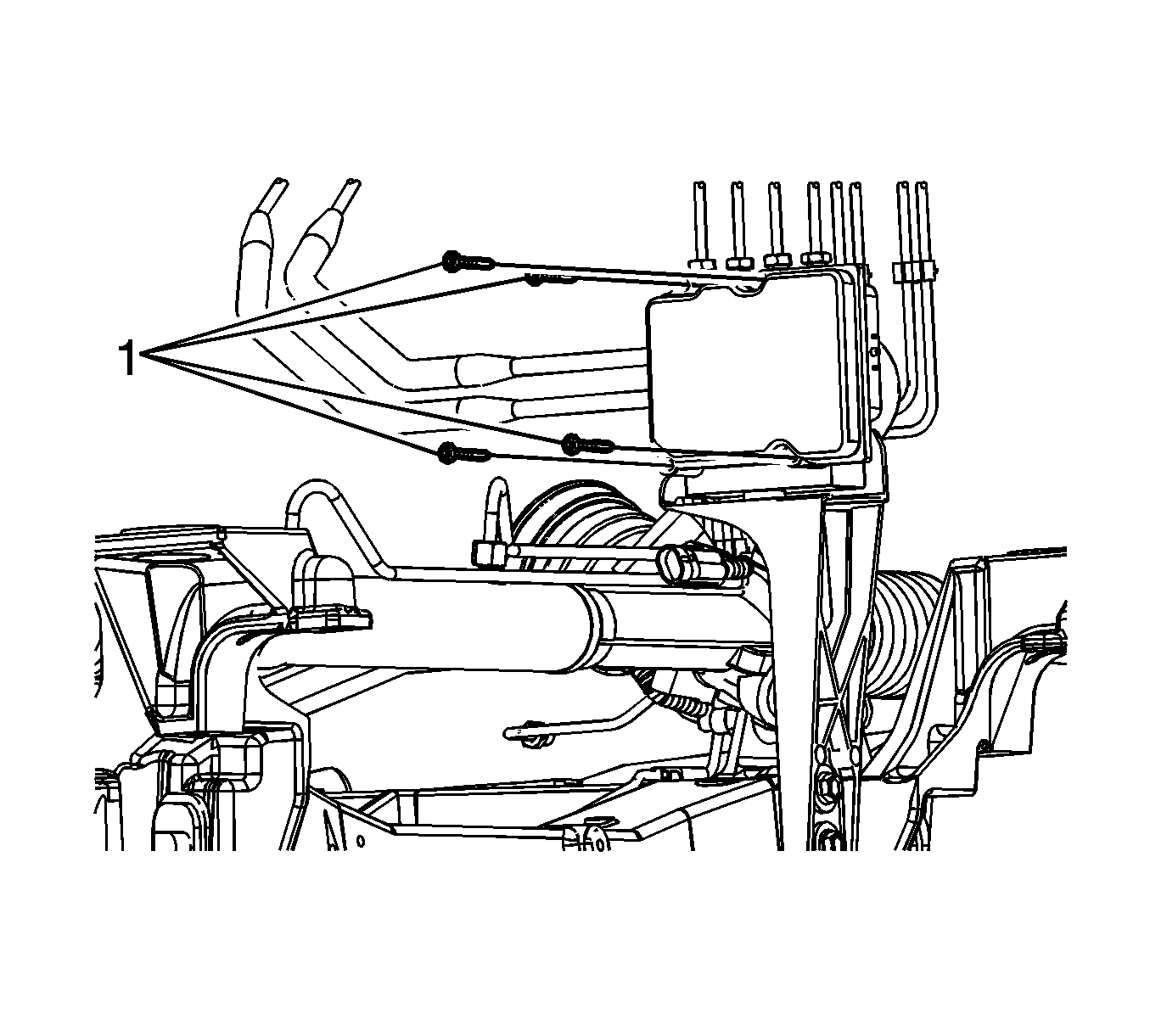

    Fig 2: Identifying EBCM Bolts
    GM2141645Courtesy of GENERAL MOTORS CORP.
  2. Install the EBCM bolts (1) and tighten in a cross pattern to 3 N.m (27 lb in).
  3. Connect the EBCM electrical connector.
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  5. If installing a new EBCM, program the EBCM. Refer to Service Programming System (SPS) .
  6. Perform the Diagnostic System Check - Vehicle .
