Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

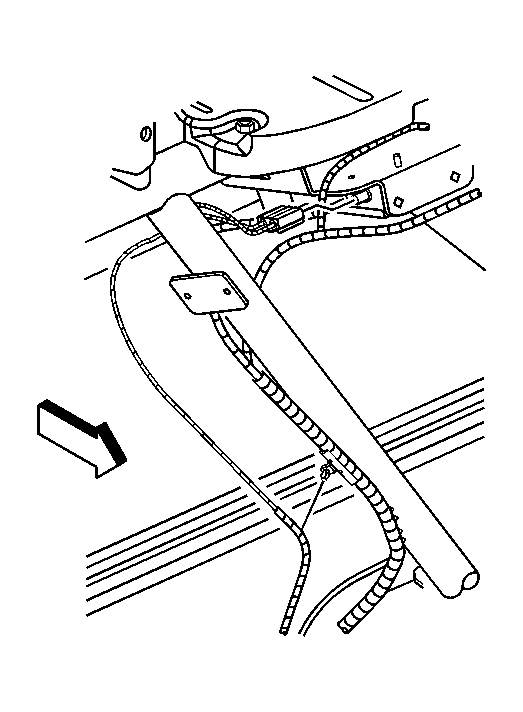

Fig 1: View Of Radio Receiver Coaxial & Electrical Leads

Courtesy of GENERAL MOTORS CORP.

Position the digital radio receiver to the vehicle and connect the coaxial and the electrical leads to the receiver.

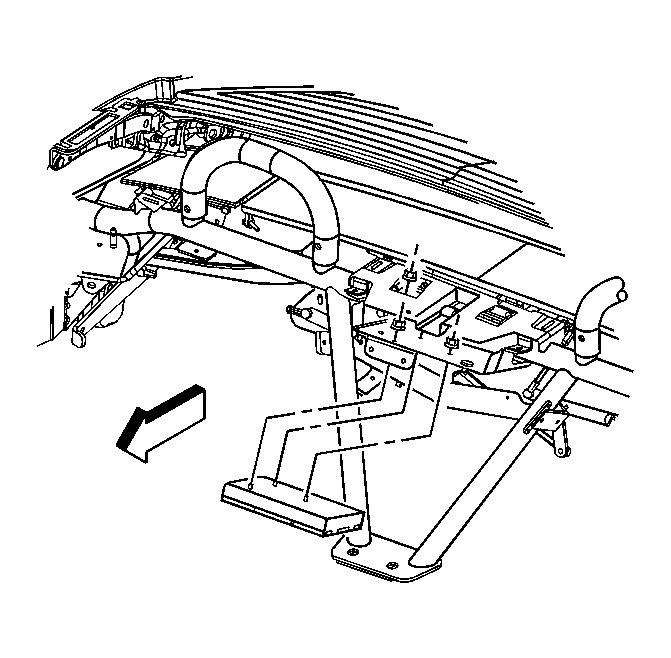

Fig 2: View Of Digital Radio Receiver & Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the receiver to the mounting bracket and install 3 retaining nuts.
Tighten: Tighten the nuts to 9 N.m (80 lb in).
Remove the rear compartment stowage trim. Refer to Body Rear Compartment Replacement .
Perform the setup procedure for the digital radio receiver. Refer to Control Module References for programming and setup information.
