Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

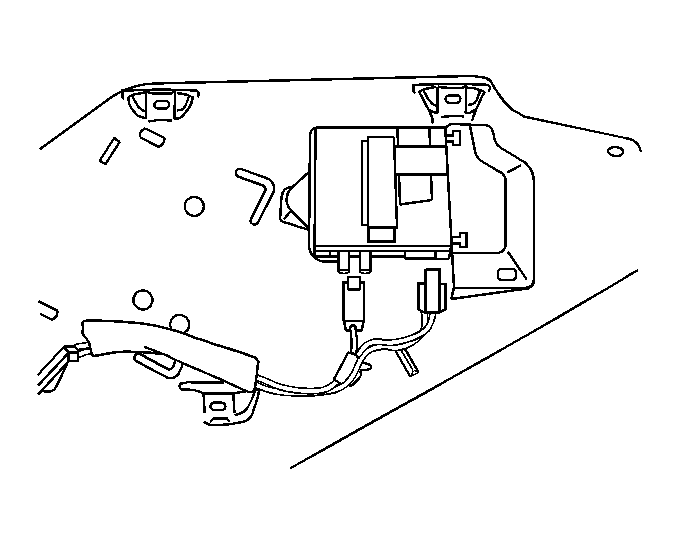

    Fig 1: View Of Antenna Module, Coaxial Lead & Electrical Lead
    GM1292925Courtesy of GENERAL MOTORS CORP.
  1. Install the antenna module into position on the antenna ground plate.
    2. NOTE: Refer to Fastener Notice .
  2. Install the antenna module retaining screws.

    Tighten:  Tighten the screws to 1.8 N.m (16 lb in).

  3. Connect the coaxial cable and the electrical lead to the antenna module.
  4. Install the antenna ground plate. Refer to Antenna Ground Plate Replacement .

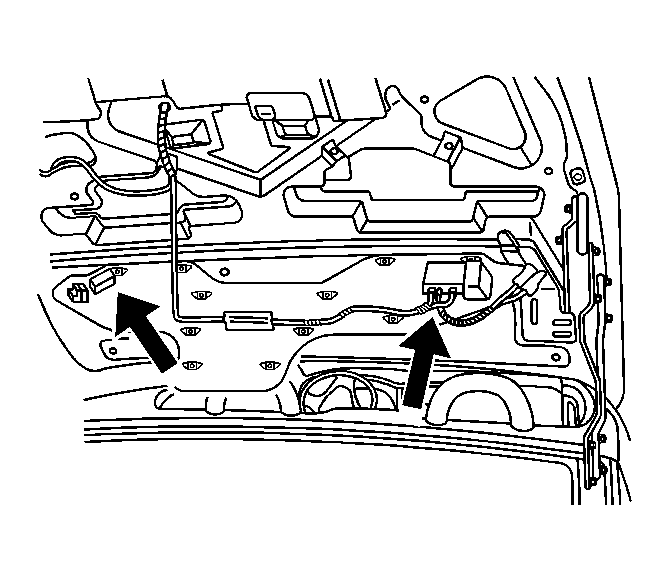

    5. Fig 2: View Of Antenna Module Coaxial Lead & Electrical Lead
    GM1292919Courtesy of GENERAL MOTORS CORP.
  5. Close the rear compartment lid.
