Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

Position the speaker to the I/P carrier and connect the speaker wire harness.

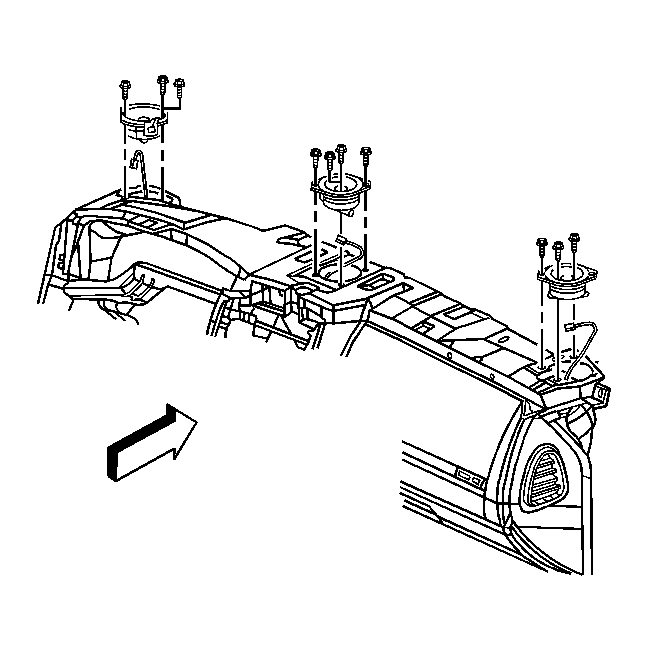

Fig 1: View Of Speaker & Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the speaker to the I/P carrier and secure the speaker with the 4 retaining screws.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).
Install the I/P trim pad. Refer to Instrument Panel Trim Pad Replacement .
