Remote Function Schematics

WARNING: This page is about a different car, the 2008 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

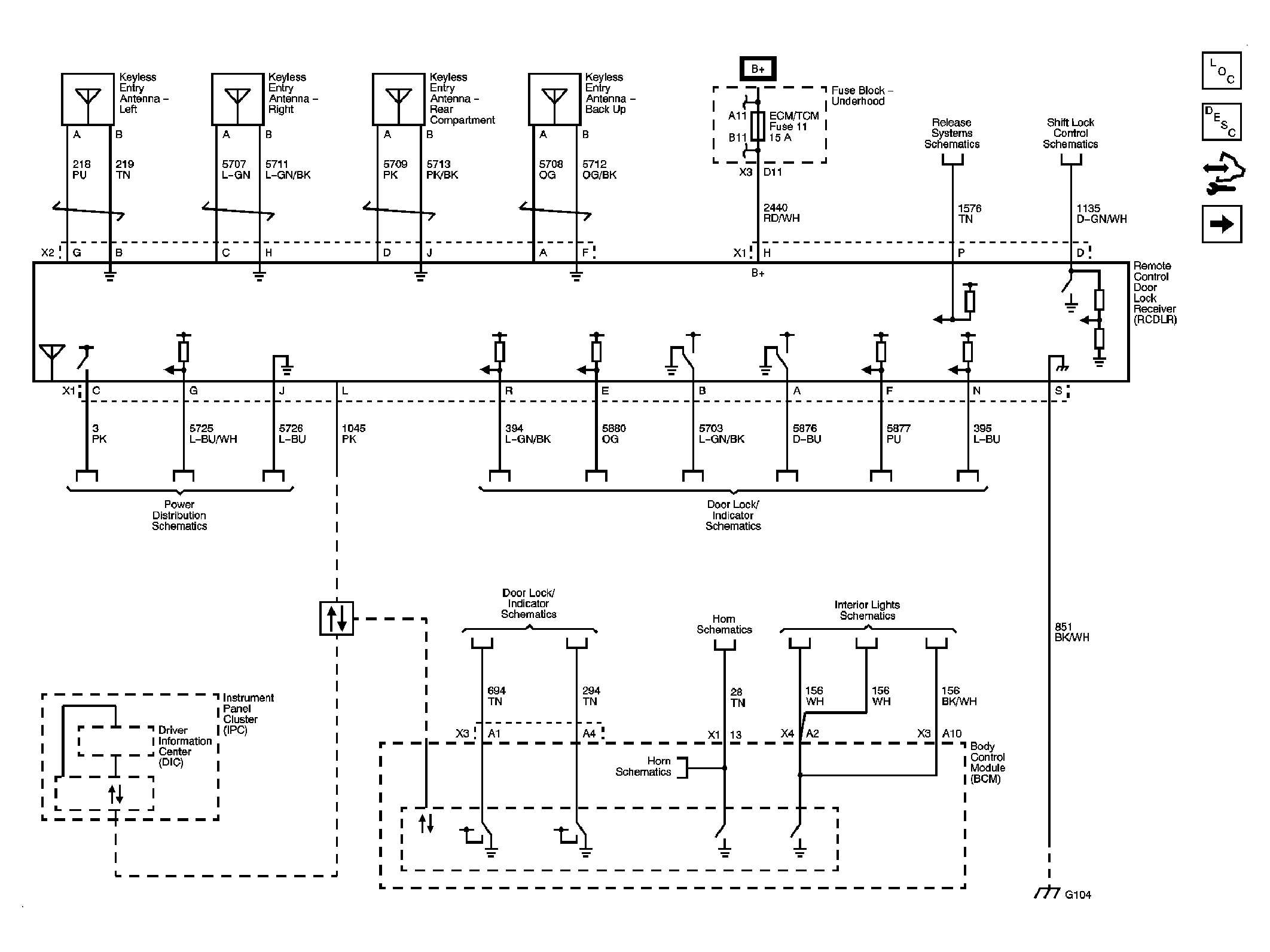

Fig 1: Keyless Entry
GM1899922Courtesy of GENERAL MOTORS CORP.

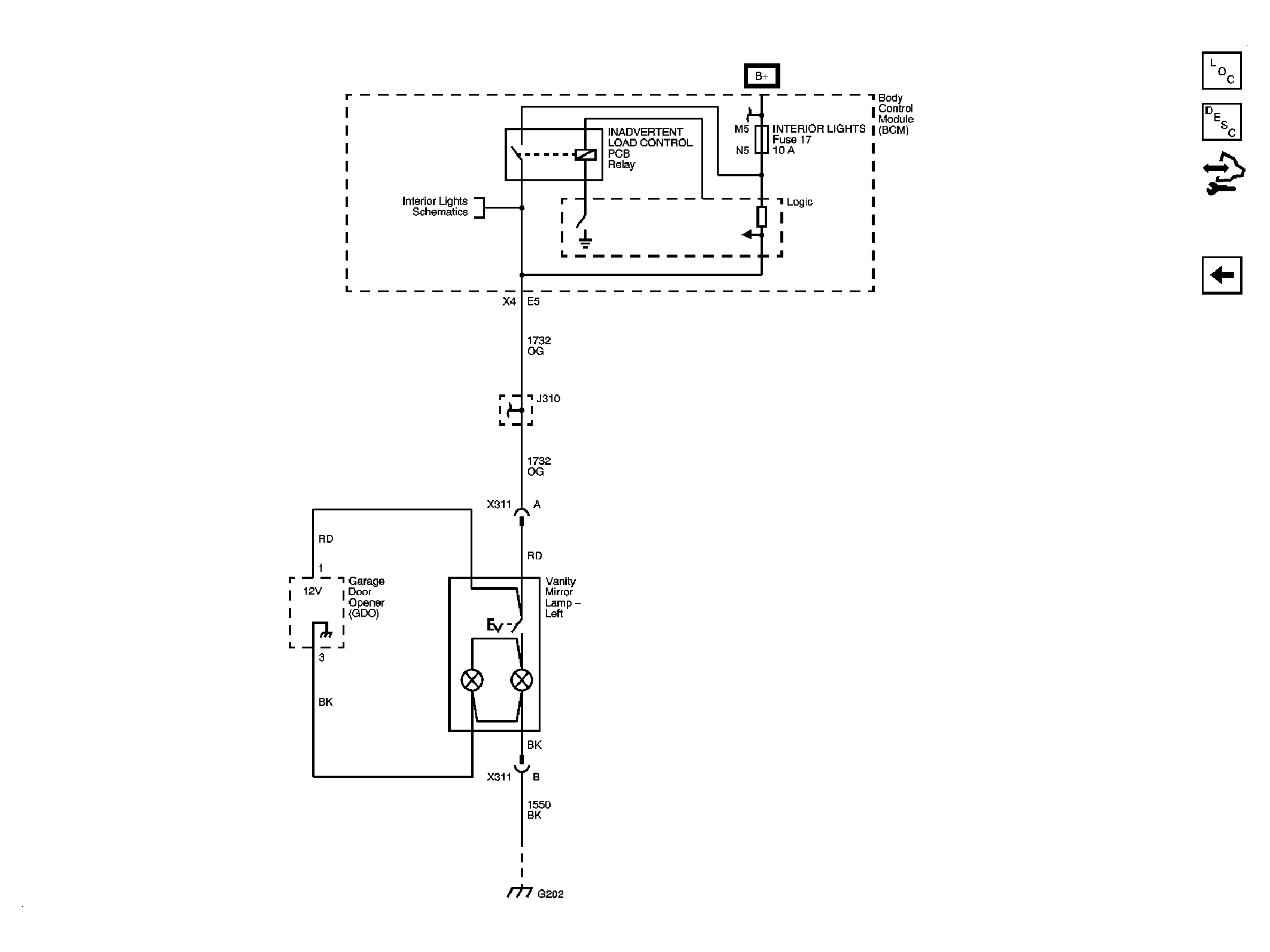

Fig 2: Garage Door Opener
GM1899923Courtesy of GENERAL MOTORS CORP.
