Headlamp Control Module Replacement (T84/T85)
WARNING: This page is about a different car, the 2008 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

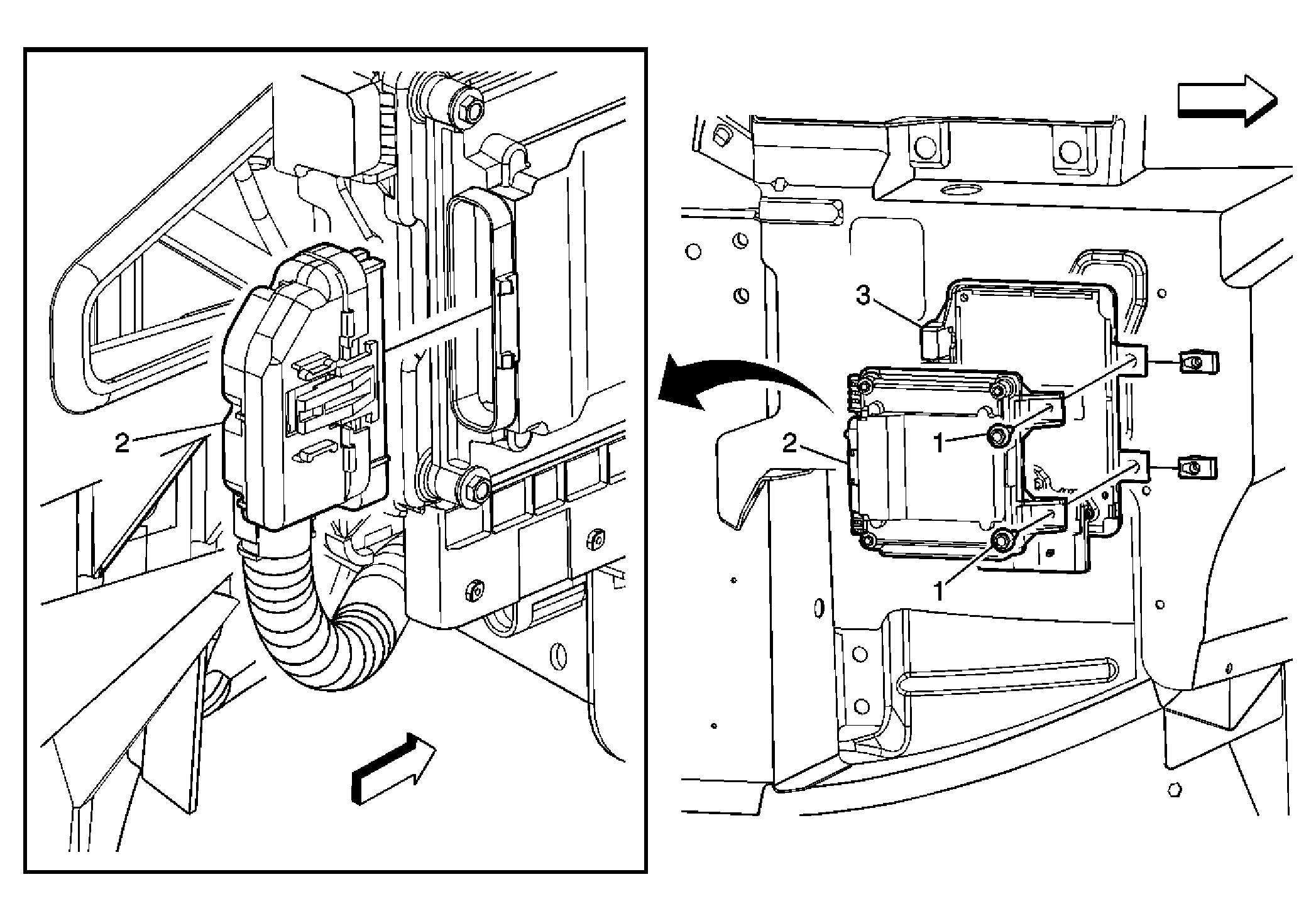

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the right front wheelhouse liner in order to access the headlamp control module. Refer to Wheelhouse Panel Replacement - Right Side . |
|
| 1 | Headlamp Control Module Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 6 N.m (53 lb in) |
| 2 | Headlamp Control Module Forward Lamp Harness Connector Procedure: Disengage the connector from the headlamp control module. |
| 3 | Headlamp Control Module Bracket Refer to Control Module References for programming and setup information. Procedure: Remove the headlamp control module from the bracket. |
