Remote Function Schematics
WARNING:
This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

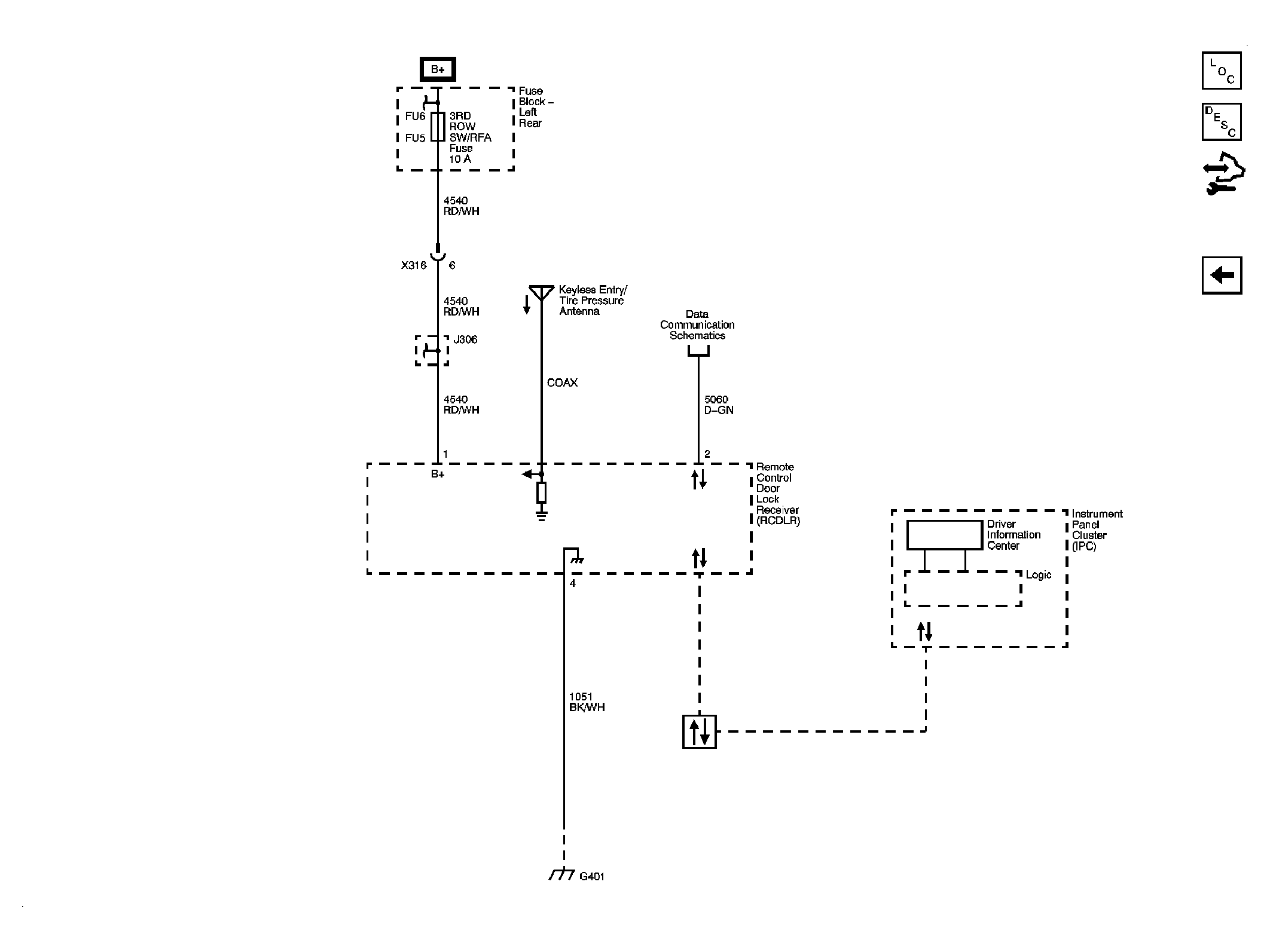

Fig 1: Remote Function Schematic (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

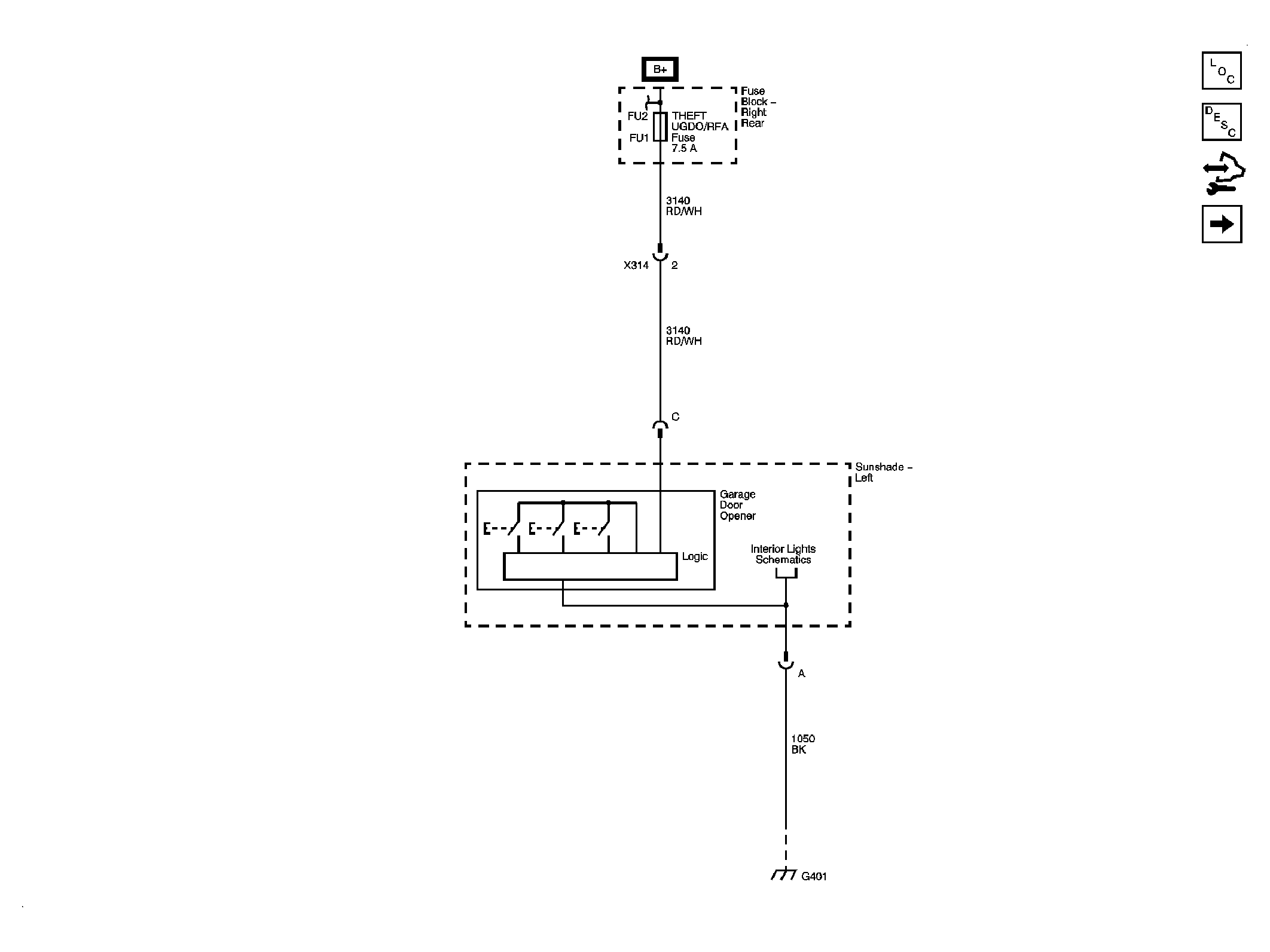

Fig 2: Remote Function Schematic (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
