Steering Wheel Heat Module Replacement

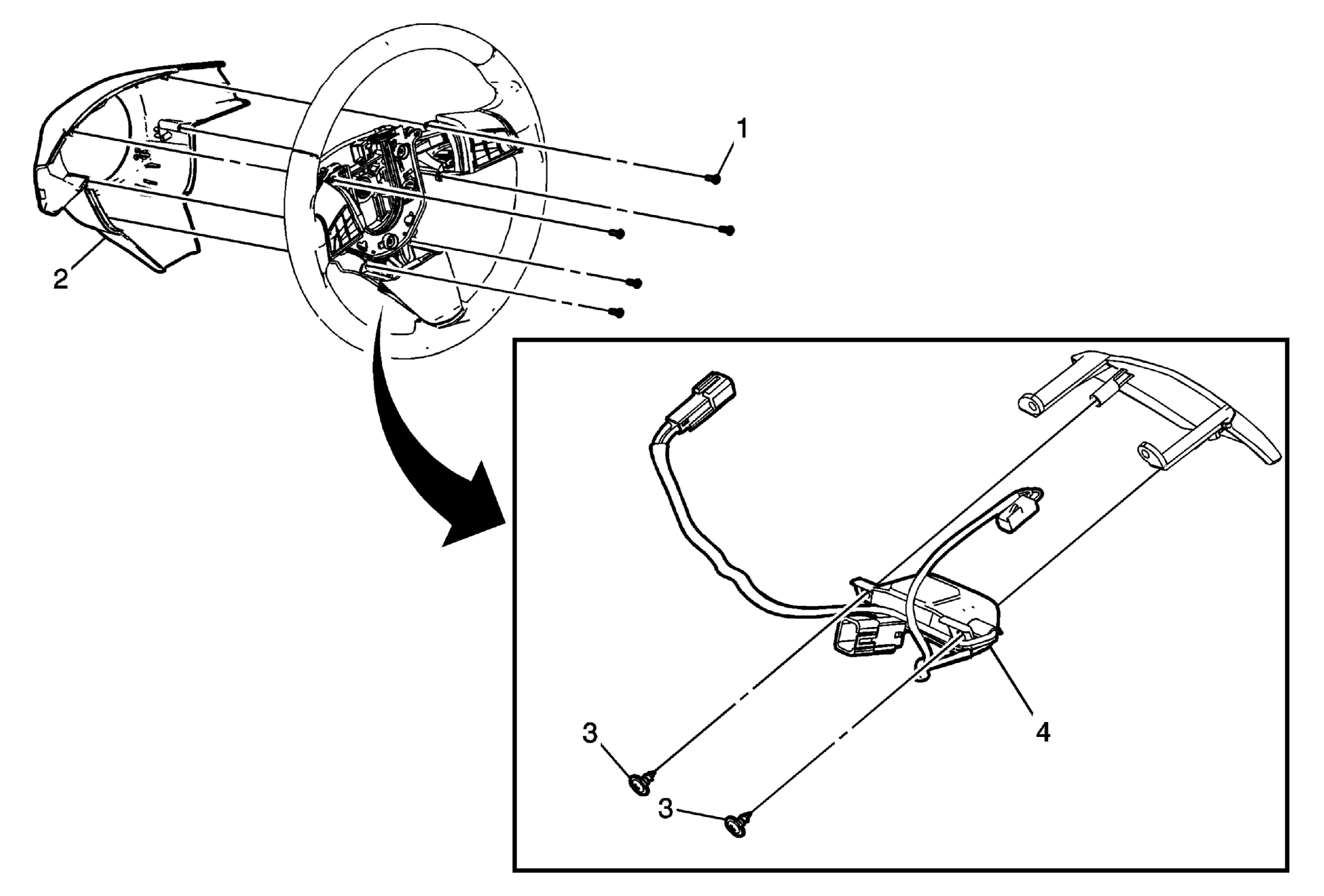

Fig 1: Identifying Steering Wheel Heat Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the steering wheel. Refer to Steering Wheel Replacement .
1	Steering Wheel Back Cover Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Steering Wheel Back Cover Procedure: Release any plastic retaining tabs as needed.
3	Steering Wheel Heat Control Module Bolt (Qty: 2) Tighten: 2.5 N.m (22 lb in)
4	Steering Wheel Heat Module Procedure: Disconnect any electrical connectors as needed.
