Fuel Rail Assembly

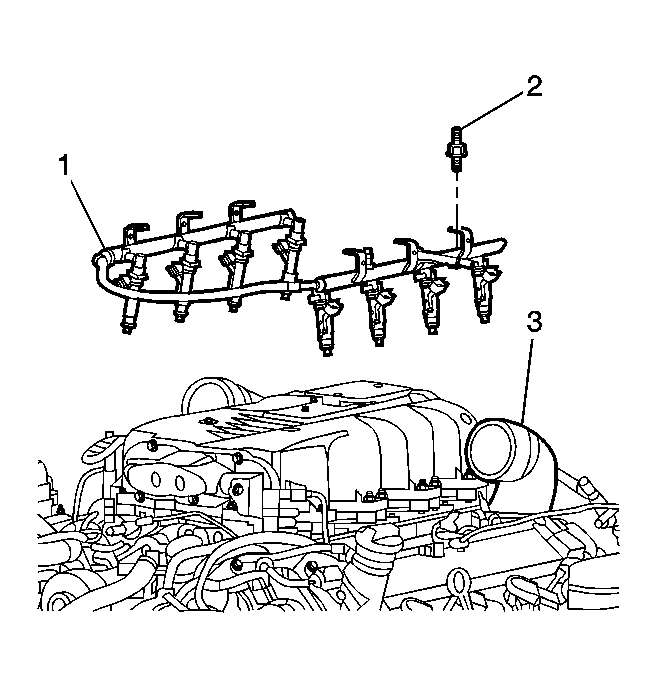

Fig 1: Identifying Fuel Rail Components

Courtesy of GENERAL MOTORS CORP.

The fuel rail assembly attaches to the engine intake manifold. The fuel rail assembly performs the following functions:

• Positions the injectors in the intake manifold
• Distributes the fuel evenly to the injectors
• Integrates the fuel pulse dampener into the fuel metering system
