Air Flow Meter/Sensor

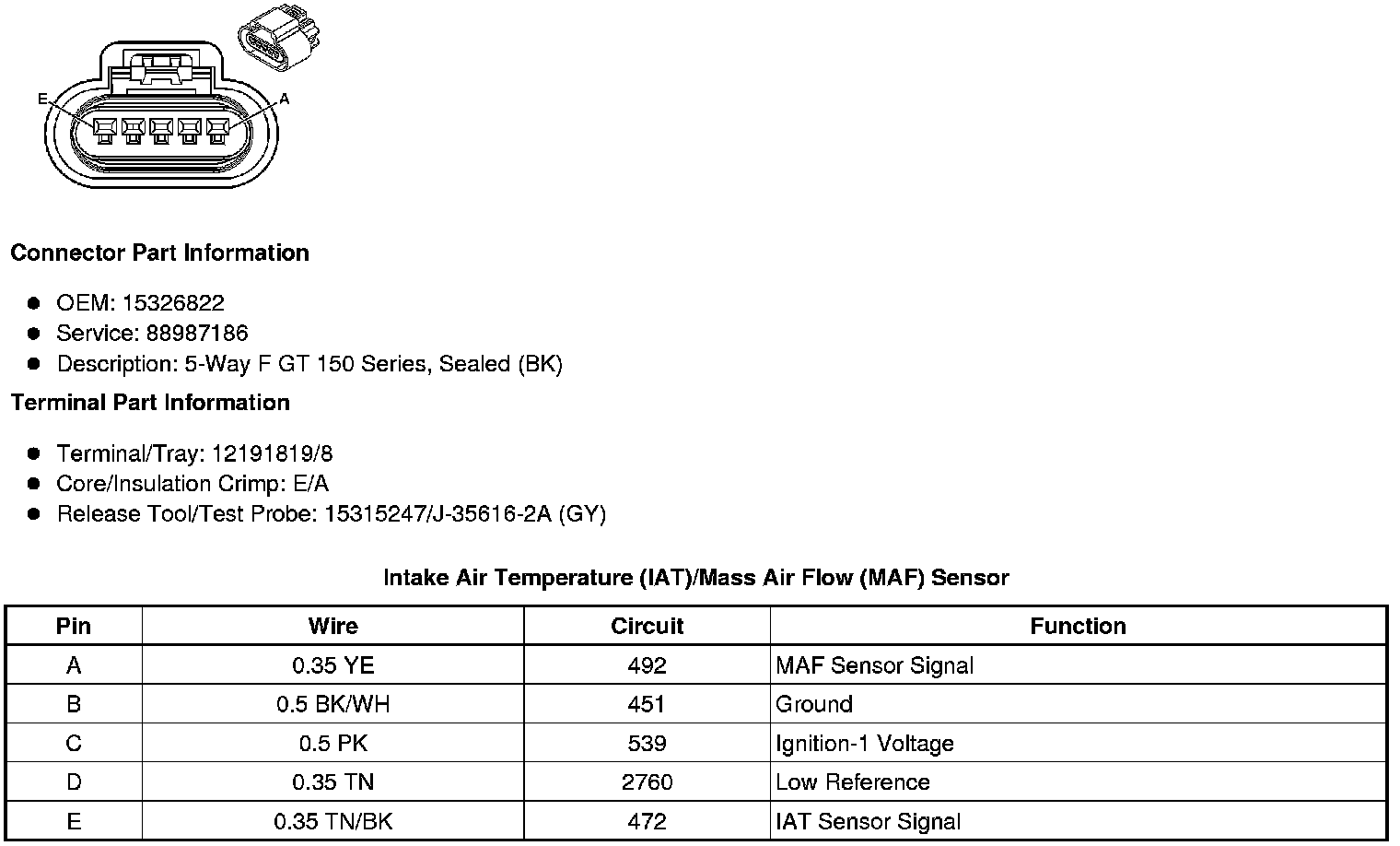

Component Connector End Views
Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
