Coolant Temperature Sensor/Switch (For Computer): Locations

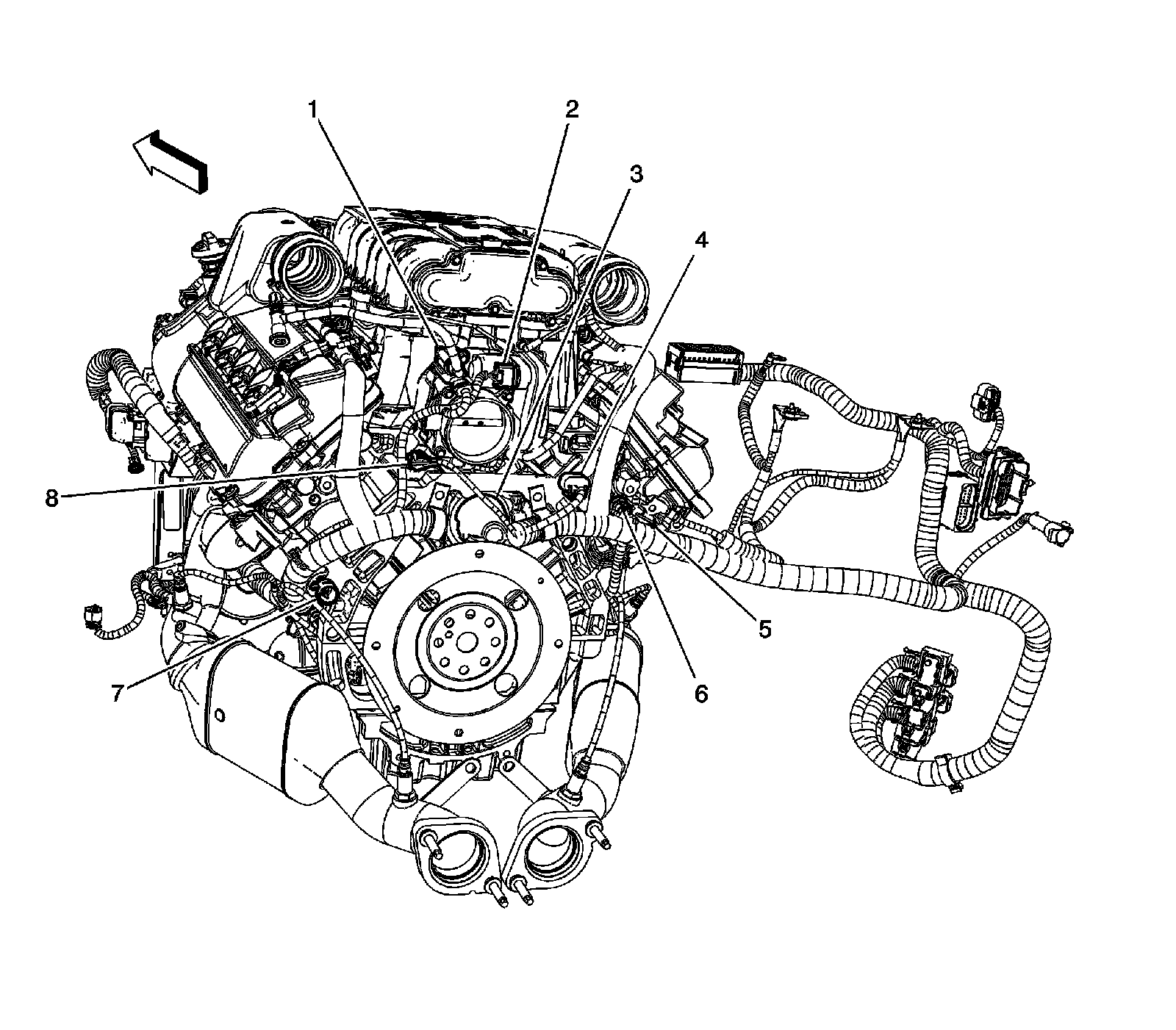

Powertrain Component Views

Rear of Engine (LC3)





6 - Engine Coolant Temperature (ECT) Sensor
