Driver Seat Back Ventilation Heating and Cooling Module Replacement

Driver Seat Back Ventilation Heating and Cooling Module Replacement

Removal Procedure

1. Remove the seat back trim cover and cushion. Refer to Driver Seat Back Cushion Pad Replacement (Driver Seat Back Cushion Pad Replacement).

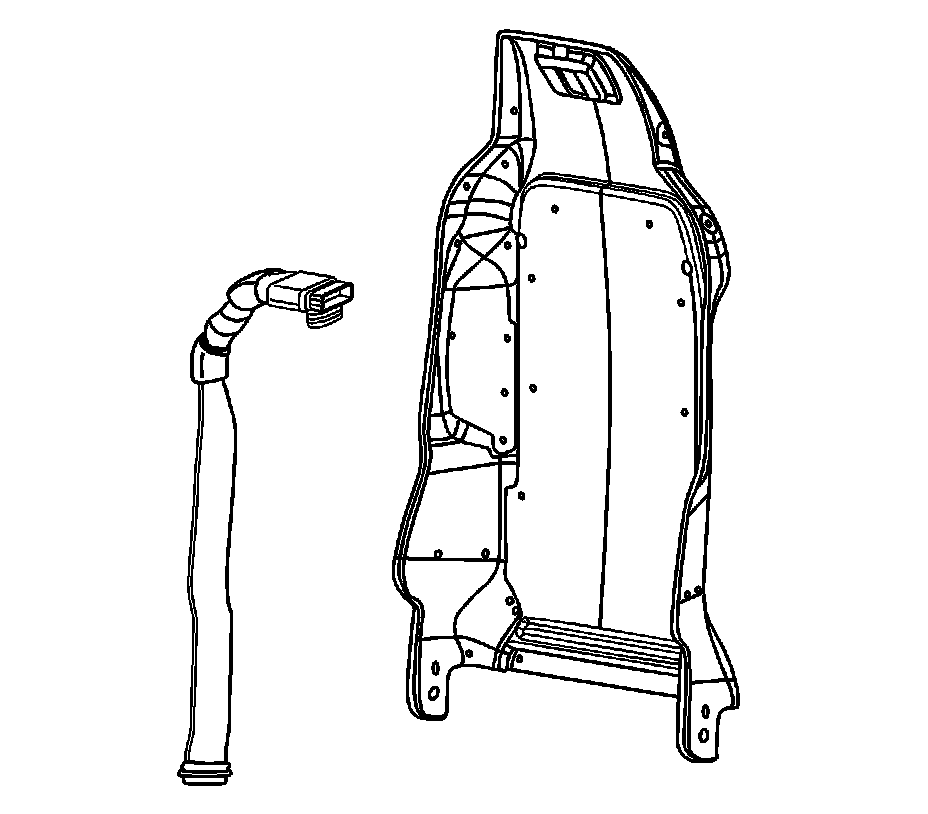

2. Disconnect the electrical connector to the ventilation module.




3. Cut the tie strap to the ventilation duct.
4. Remove the retaining screws from the ventilation module to the seat back.
5. Remove the ventilation module from the seat.

Installation Procedure




1. Install the ventilation module to the seat.
2. Install the retaining screws securing the ventilation module to the seat back.
3. Connect the electrical connector to the ventilation module.
4. Install the ventilation duct to the ventilation module. Secure the duct with new tie straps.
5. Install the seat back trim cover and cushion. Refer to Driver Seat Back Cushion Pad Replacement (Driver Seat Back Cushion Pad Replacement).
