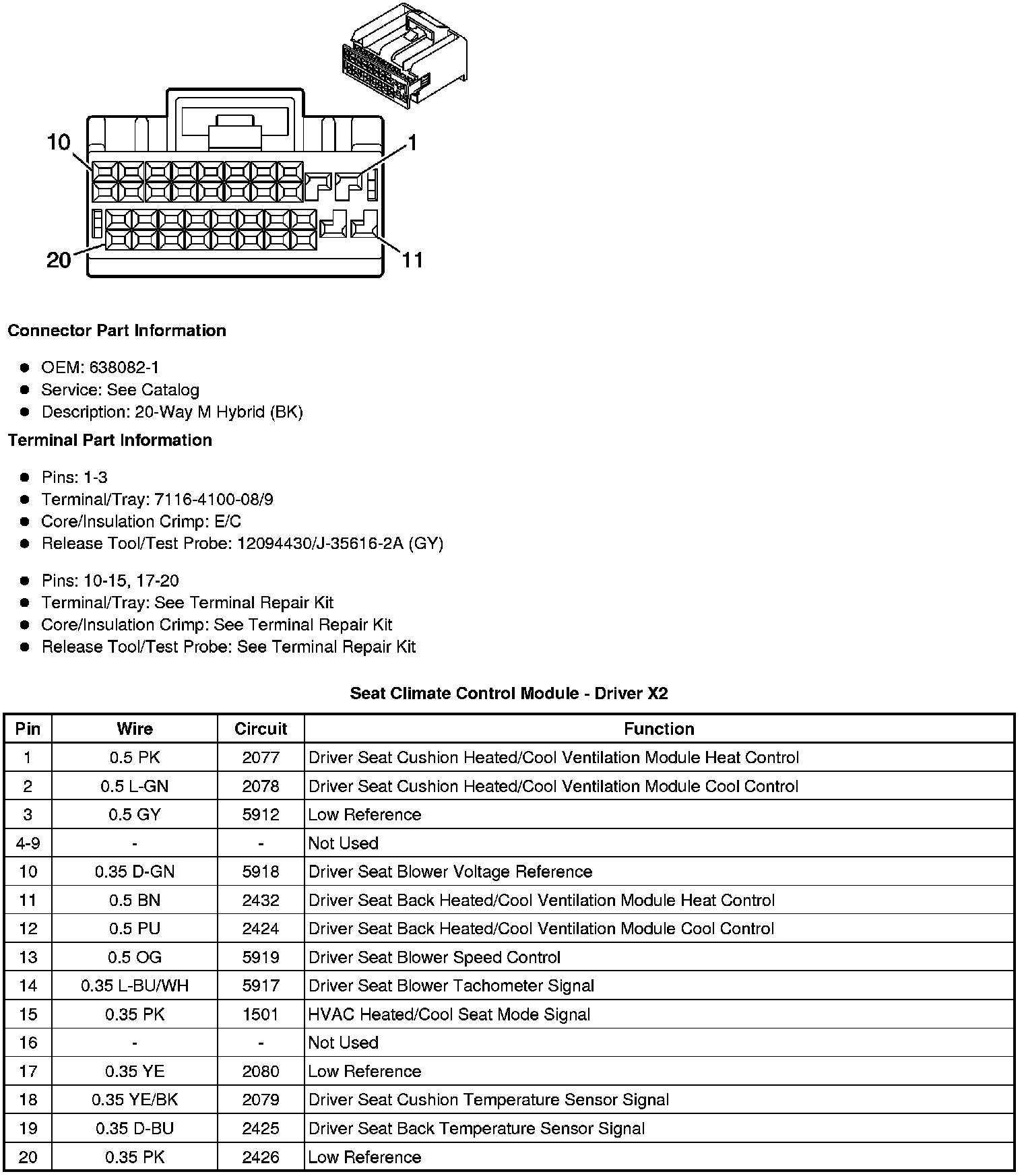

Seat Climate Control Module - Driver X2
Component Connector End Views
Seat Climate Control Module - Driver X2
