Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

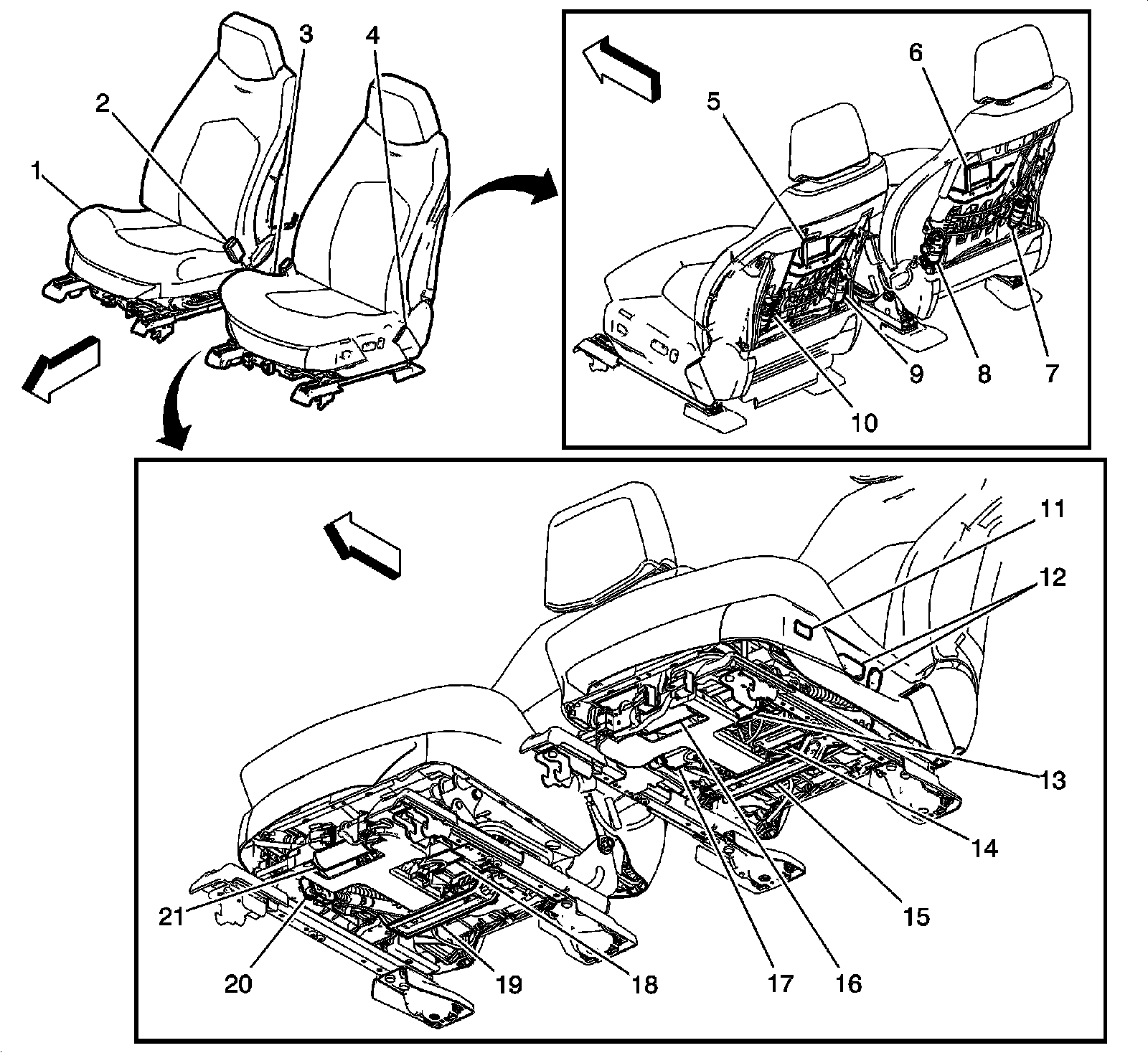

Front Seat Components (without W2E)




1 - Passenger Seat
2 - Seat Belt Pretensioner and Seat Belt Switch - Driver
3 - Driver Seat
4 - Seat Belt Pretensioner and Seat Belt Switch - Passenger
5 - Seat Back Ventilation Heating and Cooling Module - Driver
6 - Seat Back Ventilation Heating and Cooling Module - Passenger
7 - Seat Lumbar Horizontal Motor - Passenger (AL2)
8 - Seat Recline Motor - Passenger (AH8)
9 - Seat Lumbar Horizontal Motor - Driver (AL2)
10 - Seat Recline Motor - Driver
11 - Seat Lumbar Adjuster Switch - Driver (AL2)
12 - Seat Adjuster Switch - Driver
13 - Seat Rear Vertical Motor - Driver
14 - Memory Seat Module (MSM) (A45)
15 - Accent Lamp - Driver Seat (TSQ)
16 - Seat Horizontal Motor - Driver
17 - Seat Front Vertical Motor - Driver
18 - Seat Front Vertical Motor - Passenger (AH8)
19 - Passenger Presence System (PPS) Module Connector
20 - Seat Horizontal Motor - Passenger (AH8 or AL2)
21 - Seat Rear Vertical Motor - Passenger (AH8)
