Pedestrian Impact Detection Module




Component Connector End Views

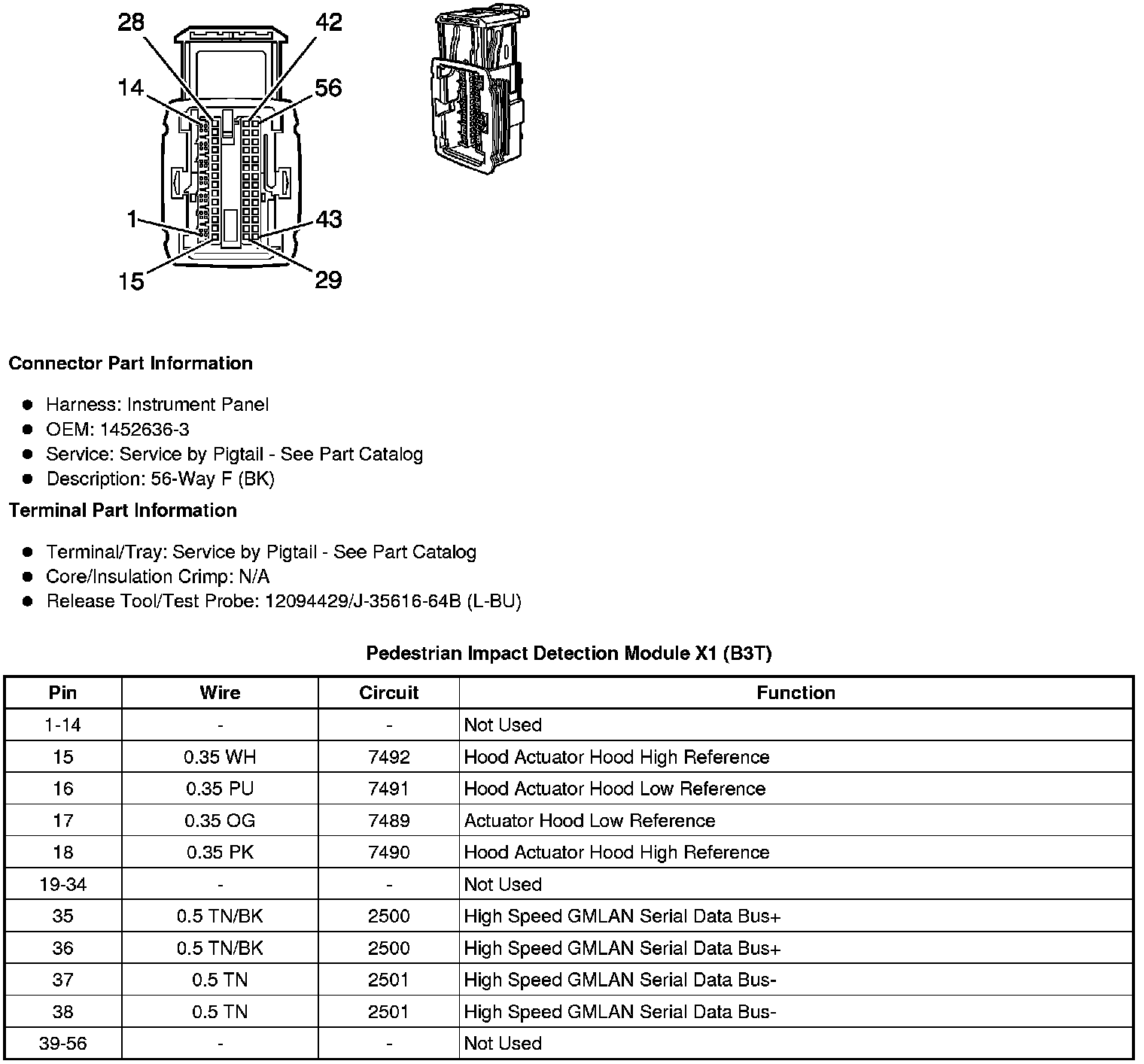

Pedestrian Impact Detection Module X1 (B3T)

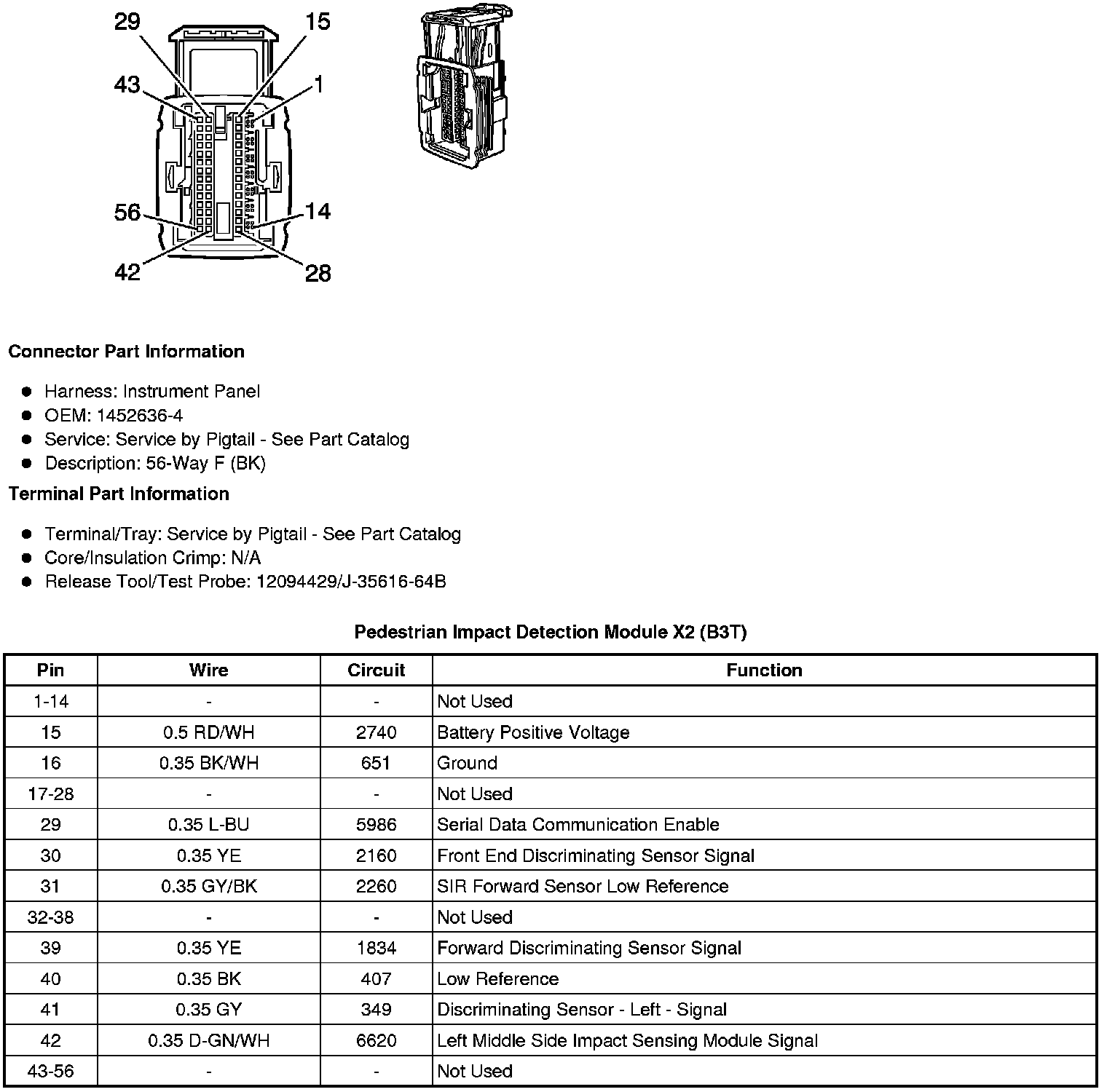

Pedestrian Impact Detection Module X2 (B3T)
