Seat Temperature Control Module
Component Connector End Views

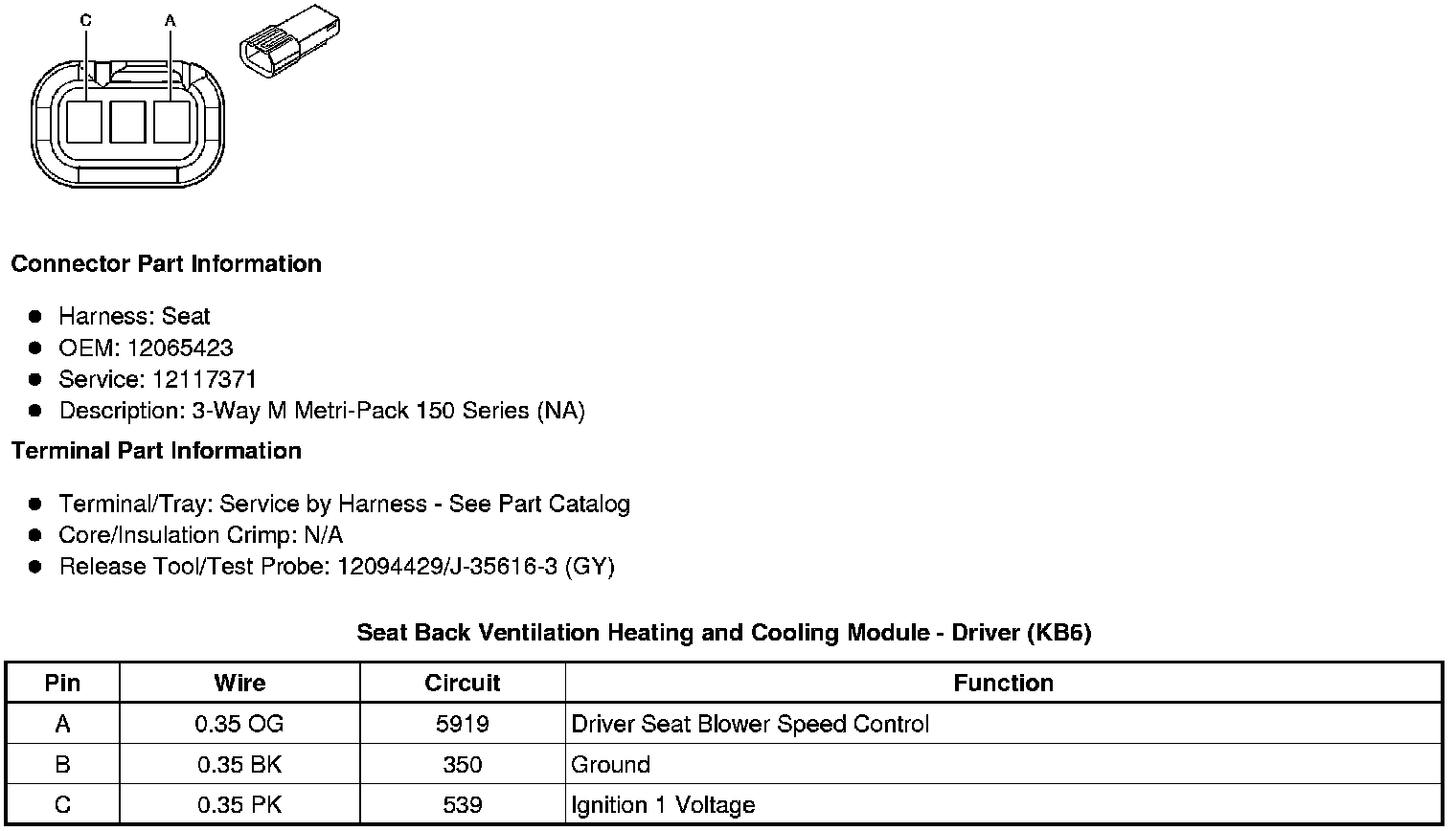

Seat Back Ventilation Heating and Cooling Module - Driver (KB6)
Seat Back Ventilation Heating and Cooling Module - Passenger (KB6)
Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6)

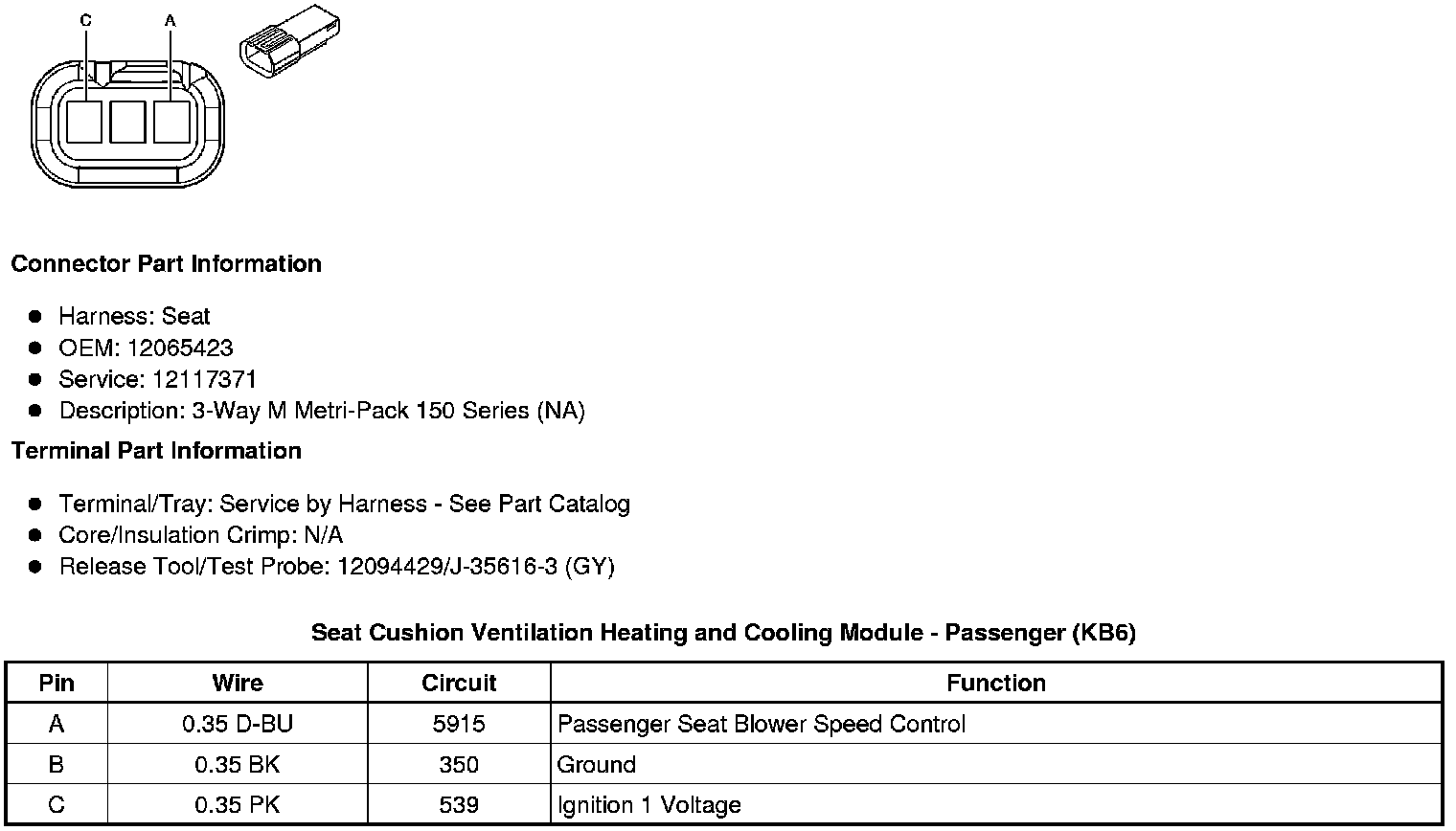

Seat Cushion Ventilation Heating and Cooling Module - Passenger (KB6)
