Coolant Temperature Sensor/Switch (For Computer): Locations

Powertrain Component Views

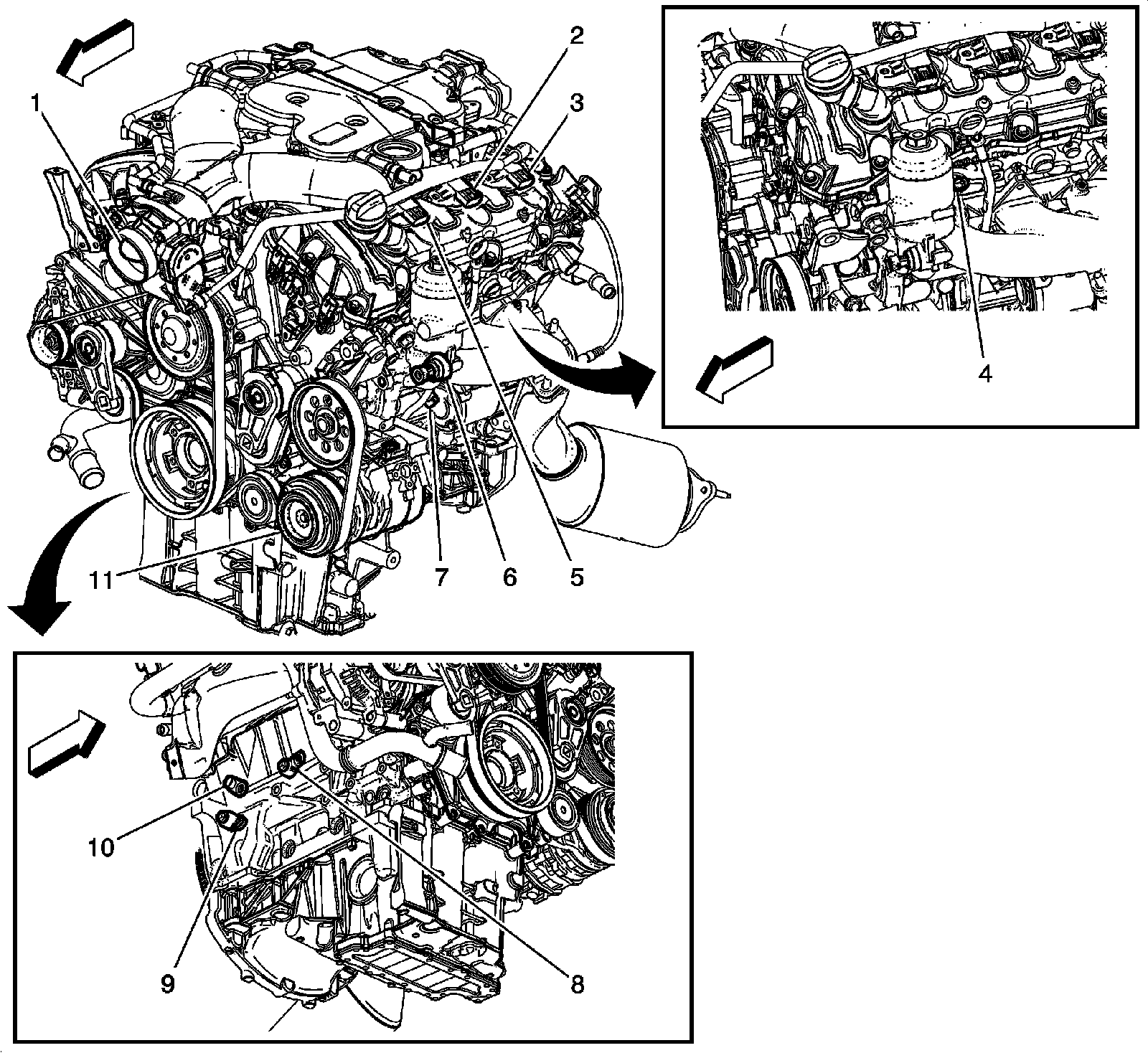

Engine Components - Left Front (LF1 or LLT)




1 - Throttle Body
2 - Ignition Coil 4
3 - Ignition Coil 6
4 - Engine Coolant Temperature (ECT) Sensor
5 - Ignition Coil 2
6 - Engine Oil Pressure (EOP) Sensor
7 - Knock Sensor (KS) 2
8 - Generator
9 - Knock Sensor (KS) 1
10 - Crankshaft Position (CKP) Sensor
11 - A/C Compressor Clutch

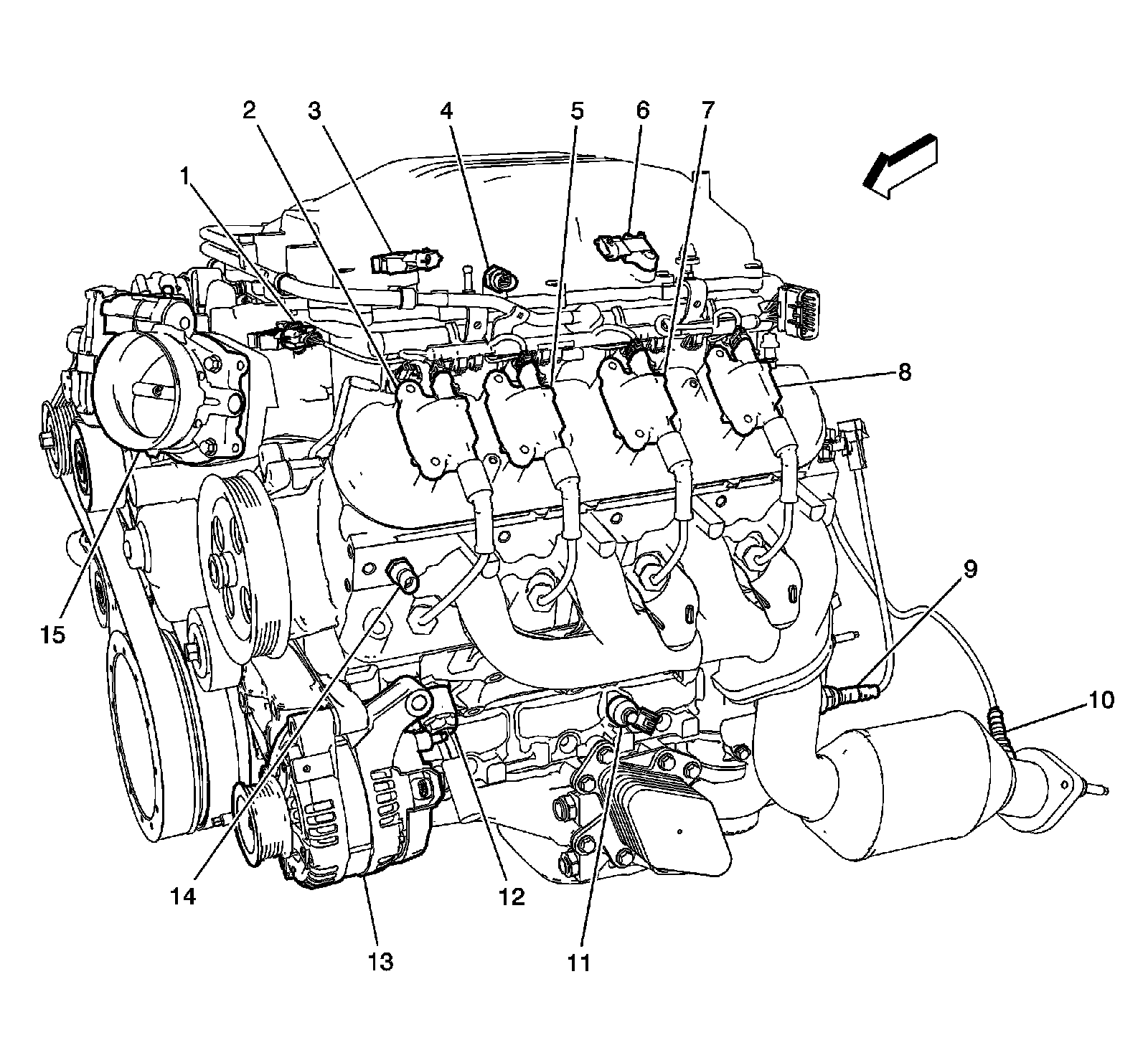

Engine Components - Left Side (LSA)




1 - Supercharger Air Inlet Pressure Sensor
2 - Ignition Coil 1
3 - Manifold Absolute Pressure (MAP) Sensor
4 - Intake Air Temperature (IAT) Sensor
5 - Ignition Coil 3
6 - Barometric Pressure (BARO) Sensor
7 - Ignition Coil 5
8 - Ignition Coil 7
9 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
10 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2
11 - Knock Sensor (KS) 1
12 - Block Heater Connector
13 - Generator
14 - Engine Coolant Temperature (ECT) Sensor
15 - Throttle Body
