Object Detection Schematics

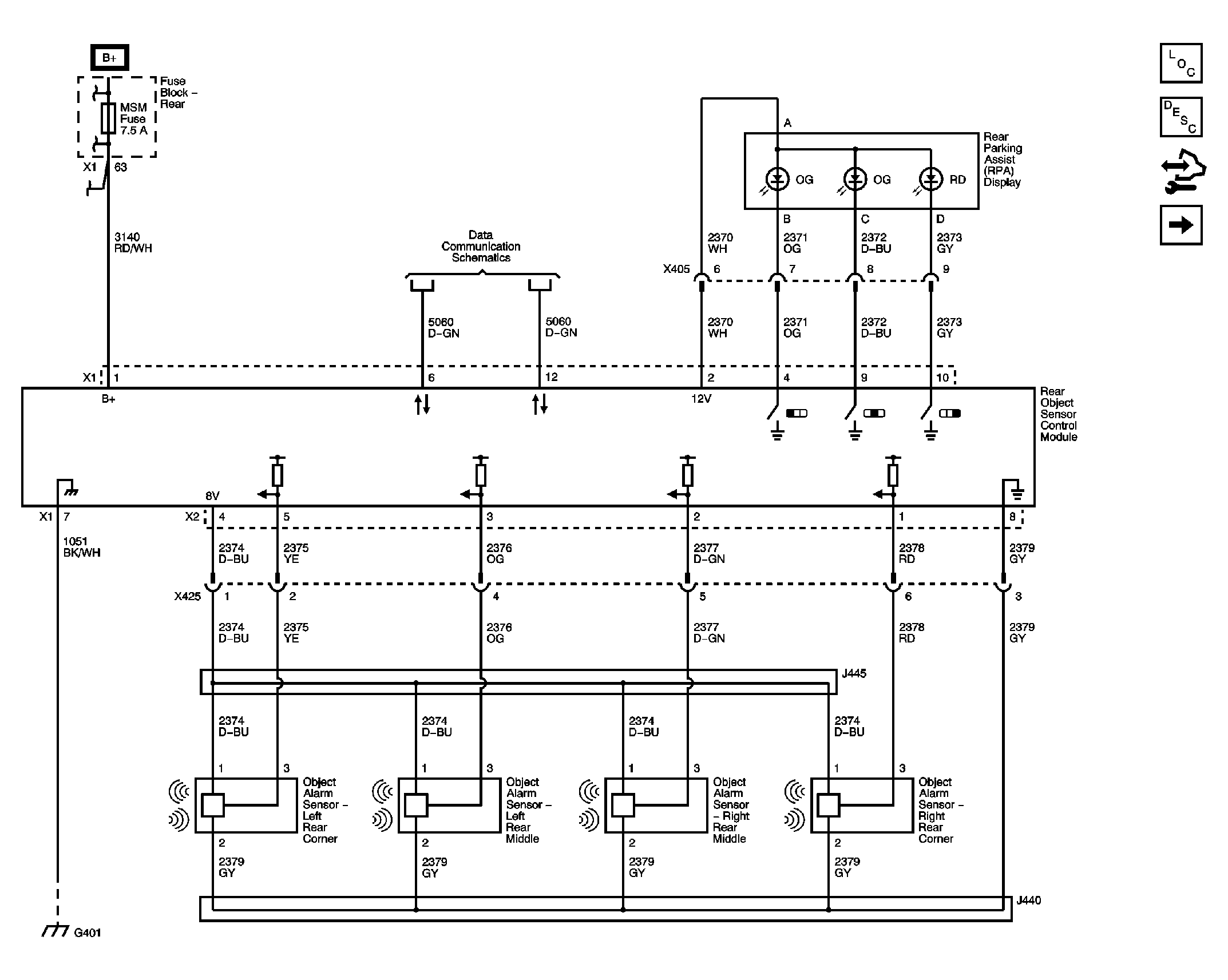

Fig 1: Rear Park Assist (UD7)
GM2219749Courtesy of GENERAL MOTORS CORP.

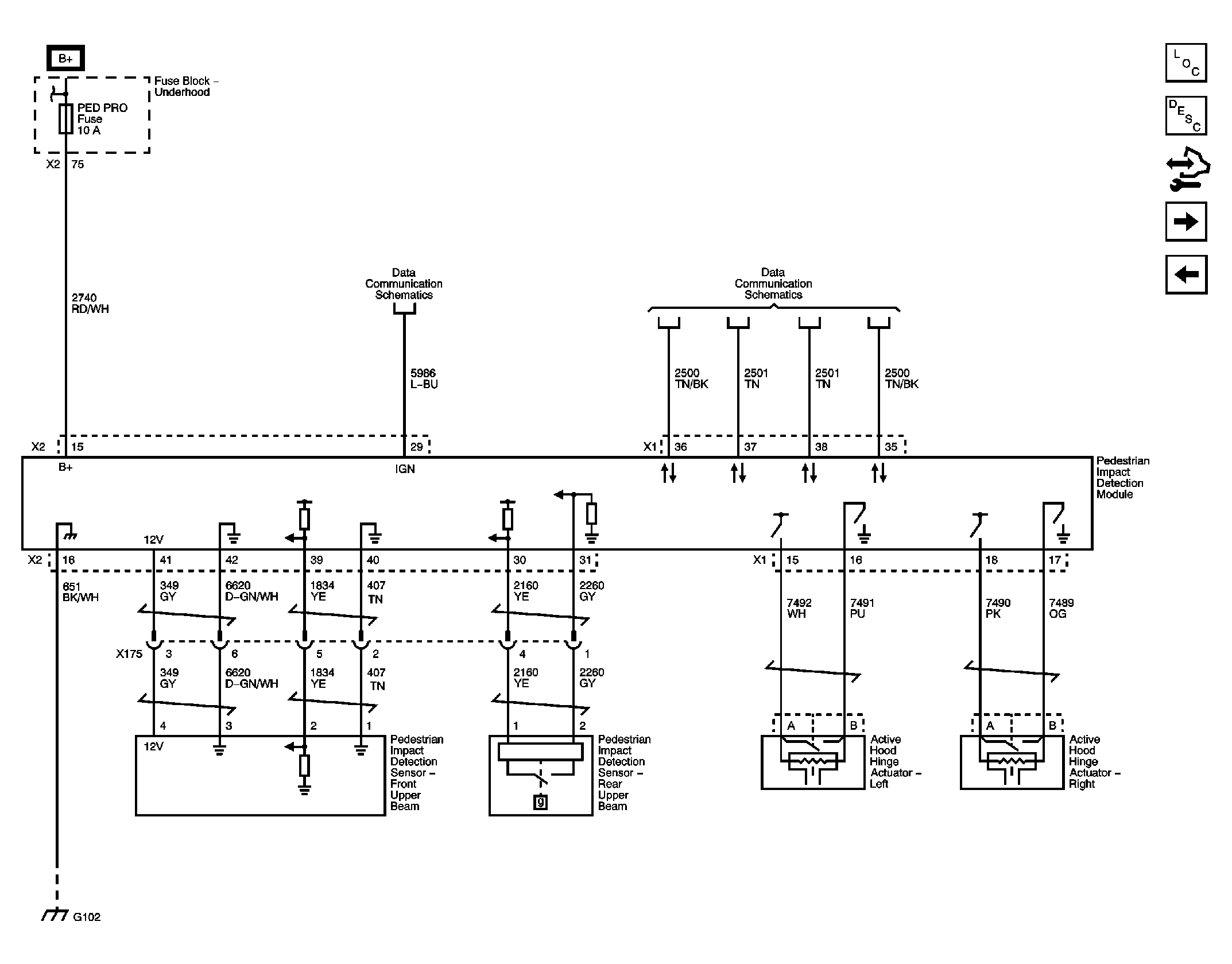

Fig 2: Pedestrian Impact Detection System (B3T)
GM2219751Courtesy of GENERAL MOTORS CORP.

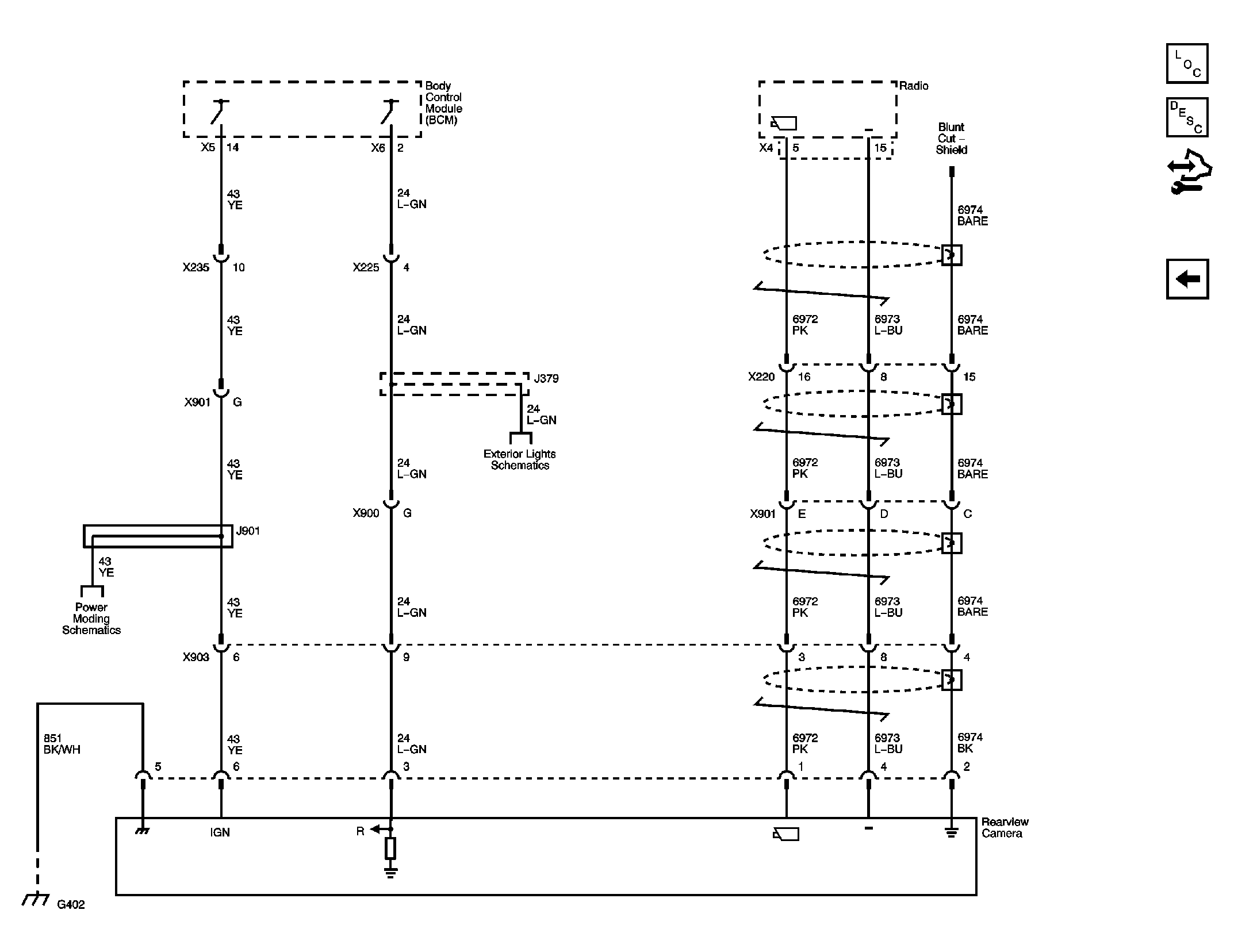

Fig 3: Rearview Camera (UVC)
GM2220388Courtesy of GENERAL MOTORS CORP.
