Remote Function Schematics

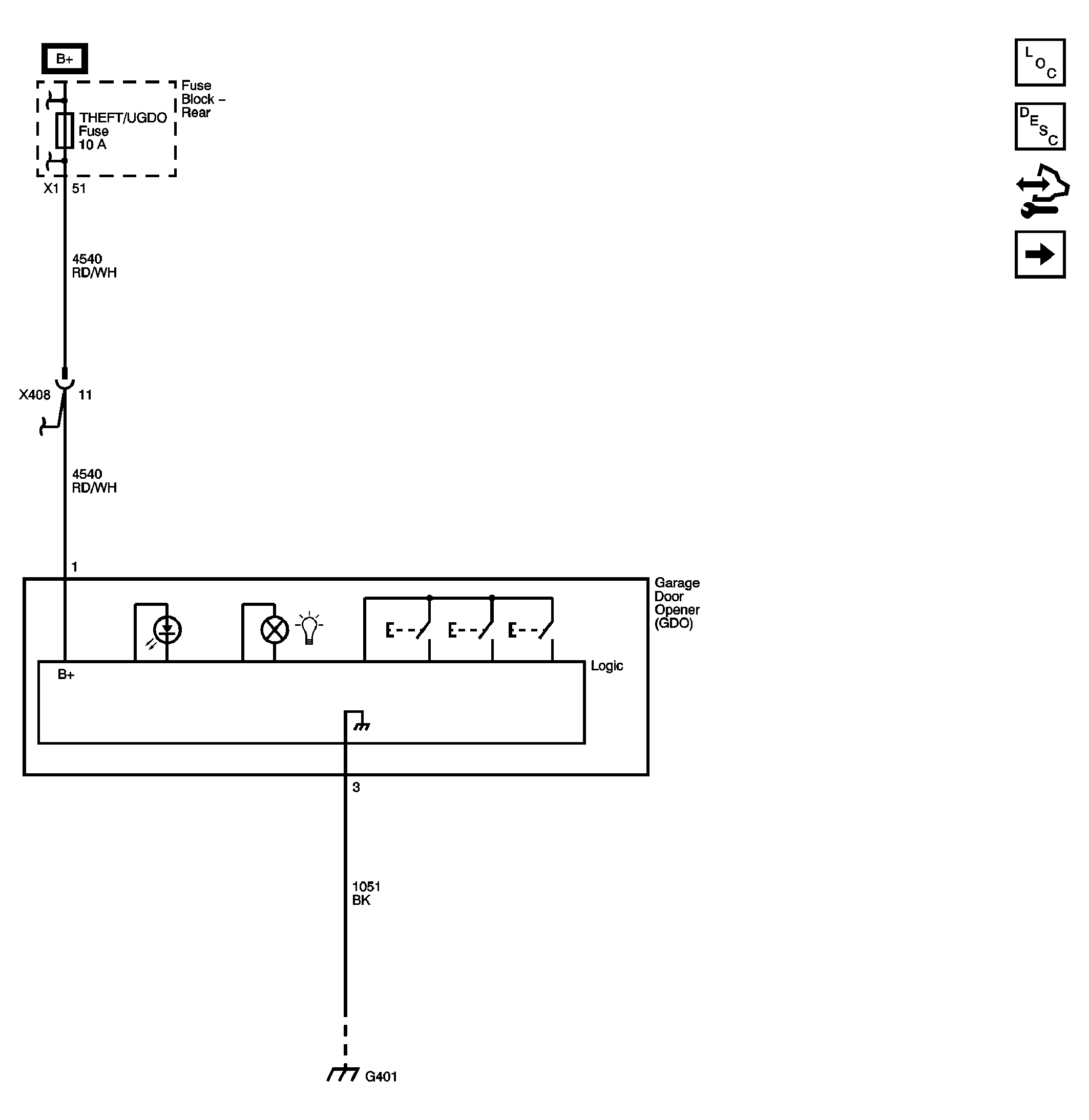

Fig 1: Garage Door Opener (UG1)
GM2219752Courtesy of GENERAL MOTORS CORP.

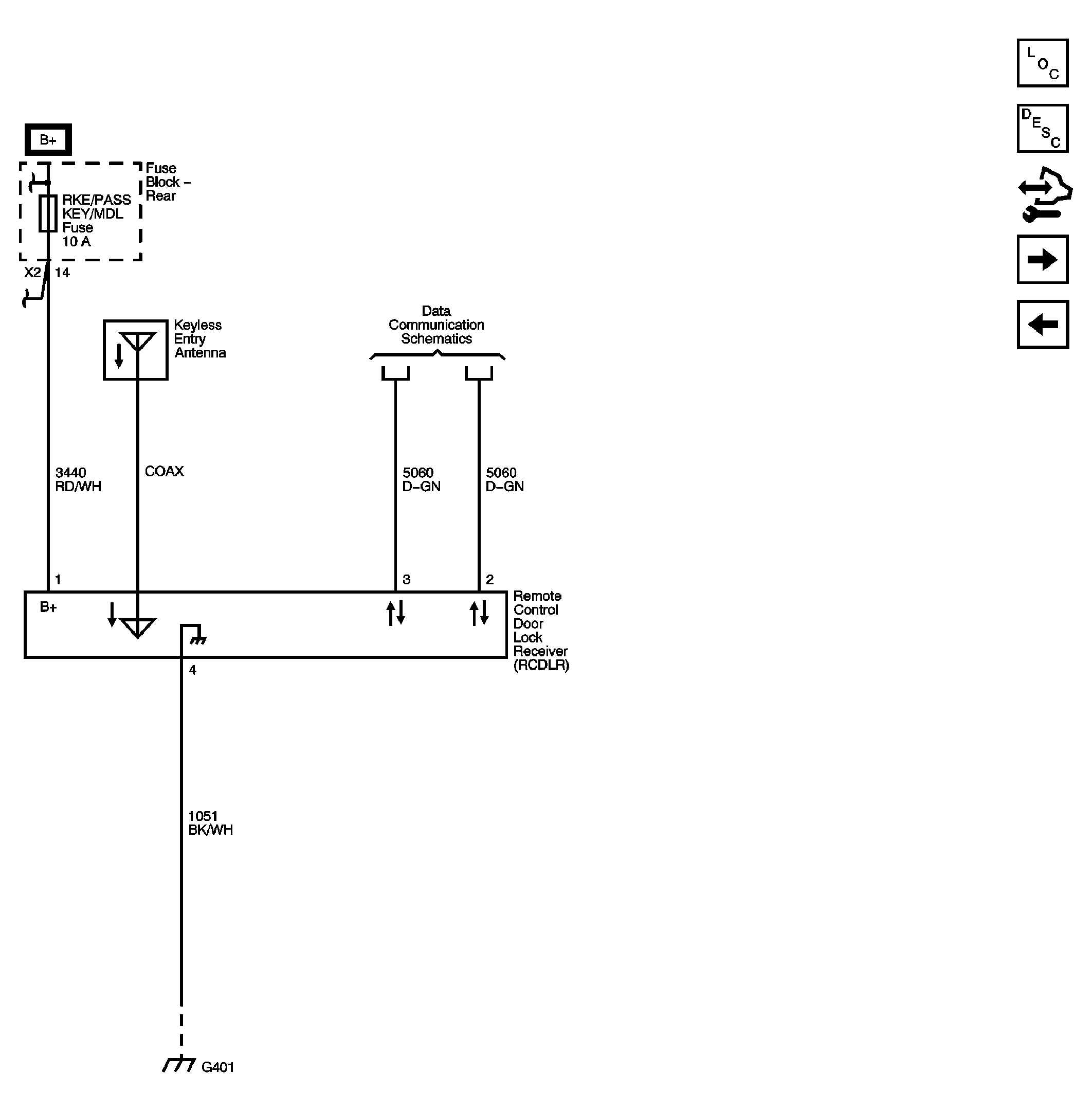

Fig 2: Keyless Entry (without BTM)
GM2221260Courtesy of GENERAL MOTORS CORP.

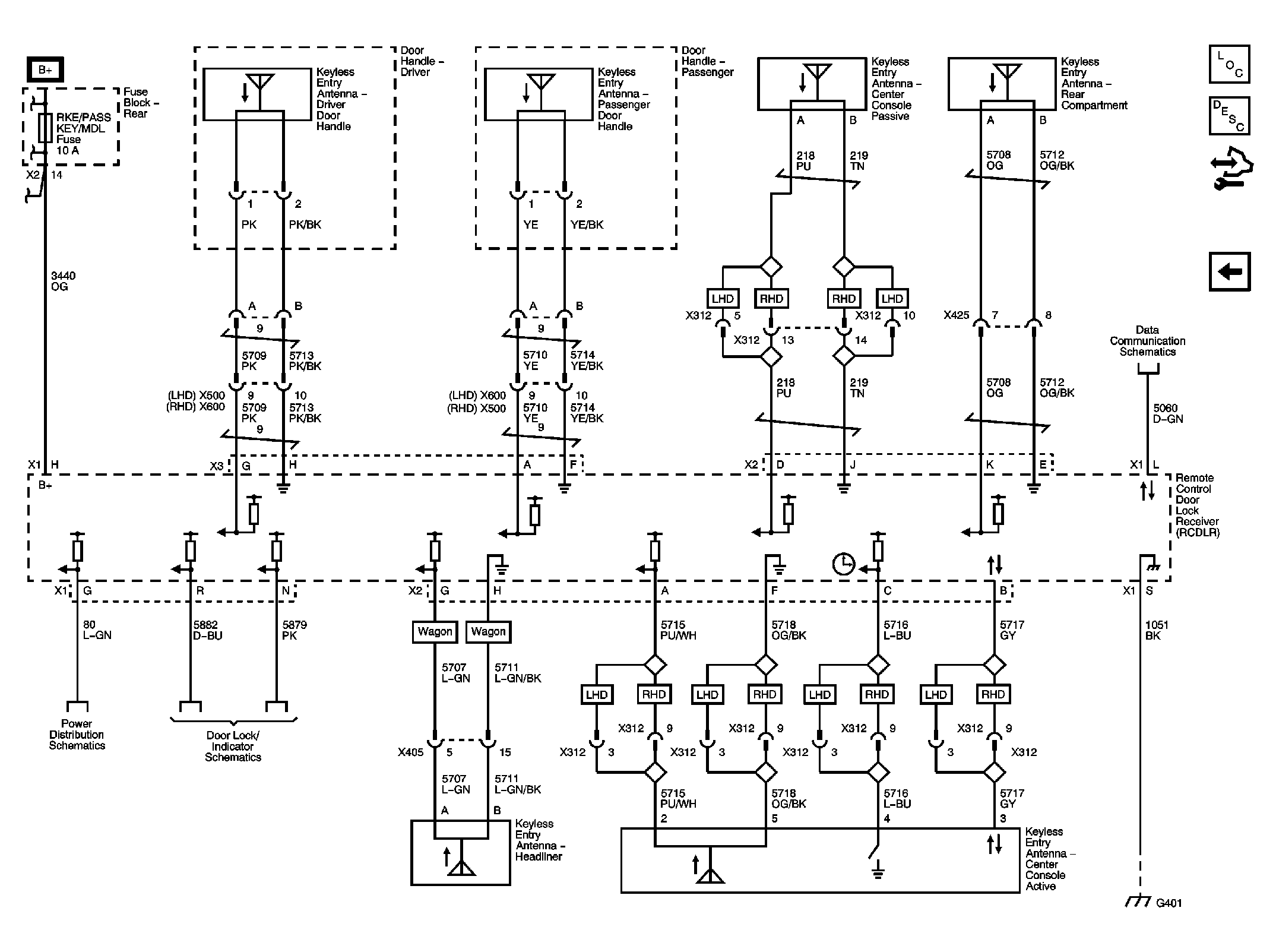

Fig 3: Keyless Entry (BTM)
GM2219754Courtesy of GENERAL MOTORS CORP.
